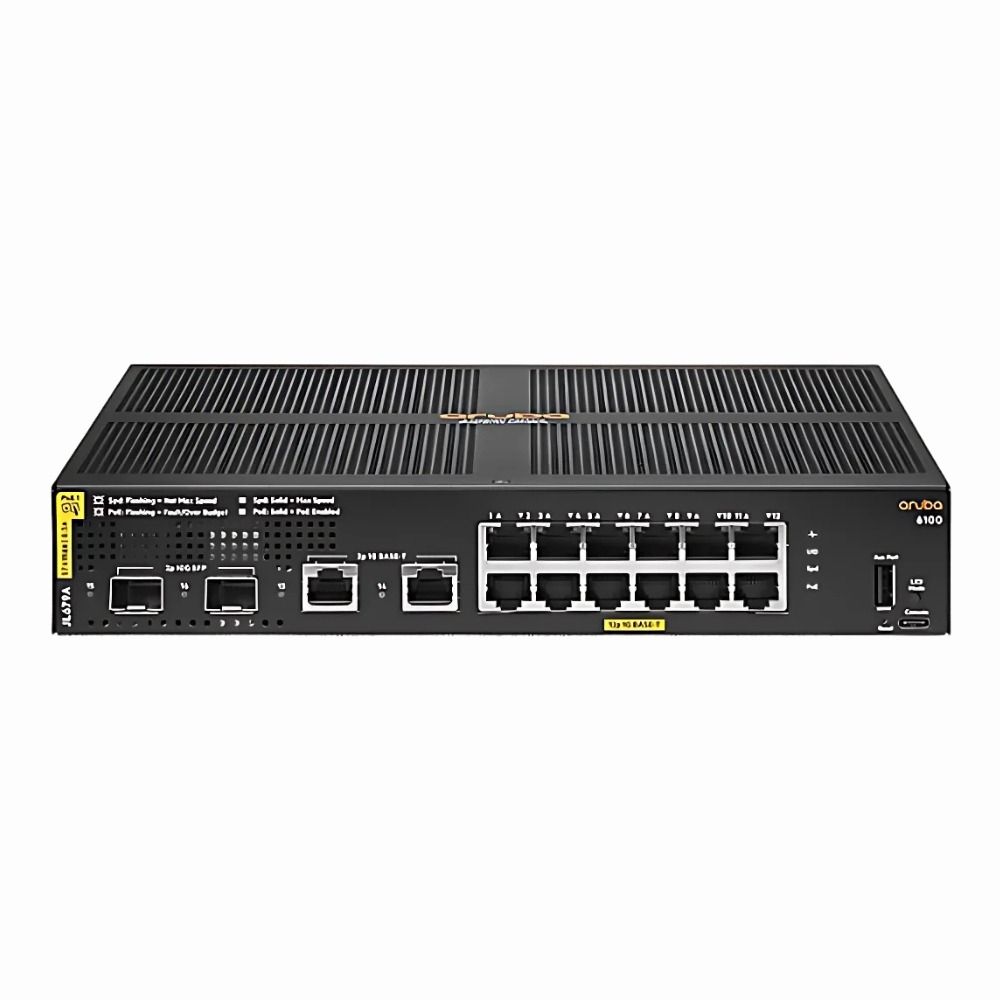

Name: JL679-61001 HP Aruba CX 6100 12G Class4 PoE 2G 2SFP+ 12-Port PoE+ Gigabit Ethernet Switch
Brand: HPE
SKU: JL679-61001
Price: 792.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP Aruba CX 6100 Series 6100 is a rack-mountable gigabit Ethernet switch designed to support both data and power delivery for network devices. It fits well in enterprise and branch office networks, providing a blend of PoE+ capability and Layer 3 management for flexible and efficient network operations.

General Information
Brand	HPE
Part Number	JL679-61001
Condition	Refurbished

Technical Information
Switch Ports	12
Number of Ports	12-Ports
Port Type	10/100/1000Base-T, 1000Base-T, 10G SFP+, RJ-45, SFP+
Port Speed	10/100/1000Base-T
UpLink Ports	2 x 1G (SFP),2 x 10G (SFP+)
POE Support	PoE+
Switching Capacity	68 Gbps
Switch Forwarding Rate	132.8 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,SFP+,SFP,Console (RJ-45),USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (SSH),Console (RJ-45),SNMP,REST API,Aruba Central
Management Type	CLI,Web GUI,Cloud (Aruba Central)
Security	802.1X
Remote Management Protocol	SSH,HTTPS,SNMP,REST,Telnet
Routing Protocol	Static,RIP,OSPF

Power & Cooling
Fans	Fanless

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The HP Aruba CX 6100 Series 6100 switch delivers reliable, high-performance networking with Power over Ethernet capabilities. It's commonly used in small to medium-sized enterprise environments to support wired connections for devices such as IP phones, wireless access points, and security cameras. Built for network administrators seeking straightforward management and scalability, this switch combines gigabit speeds with Layer 3 routing features. The multiple uplink options enable flexible integration into existing network infrastructures. Key Features Provides Class 4 PoE+ to power a variety of endpoint devices Includes 12 RJ-45 ports for 10/100/1000Base-T connections Equipped with 2 SFP+ ports for high-speed fiber connectivity Offers 2 additional Gigabit Ethernet uplink ports for expanded network reach Supports Layer 3 functionality for routing and network segmentation This switch is typically deployed in enterprise wiring closets, branch offices, or data rooms where dependable power and data delivery are essential. It helps streamline device connectivity while maintaining manageable network performance.

Use Cases
The HP Aruba CX 6100 12G Class4 PoE switch is ideal for organizations requiring reliable, high-performance network access with integrated power delivery. It is particularly suited for environments such as branch offices, small data centers, and enterprise edge deployments where both data and power need to be efficiently managed in a compact rack-mount form factor. How It's Used: Providing PoE+ connectivity for IP phones, wireless access points, and security cameras in SMB networks. Supporting Layer 3 routing and network segmentation in branch office IT infrastructures. Facilitating uplink aggregation and redundancy using SFP+ ports in edge computing environments. Enabling unified wired and wireless deployments for enterprise IT teams managing converged networks. Deploying in network closets requiring efficient power distribution alongside scalable Gigabit Ethernet switching. This switch enhances operational efficiency by integrating Layer 3 intelligence with PoE capabilities, allowing for scalable expansion and streamlined management. Its rack-mount design supports dense deployments, ensuring consistent performance in environments demanding reliable connectivity and power delivery.
