| Product Overview |
|---|

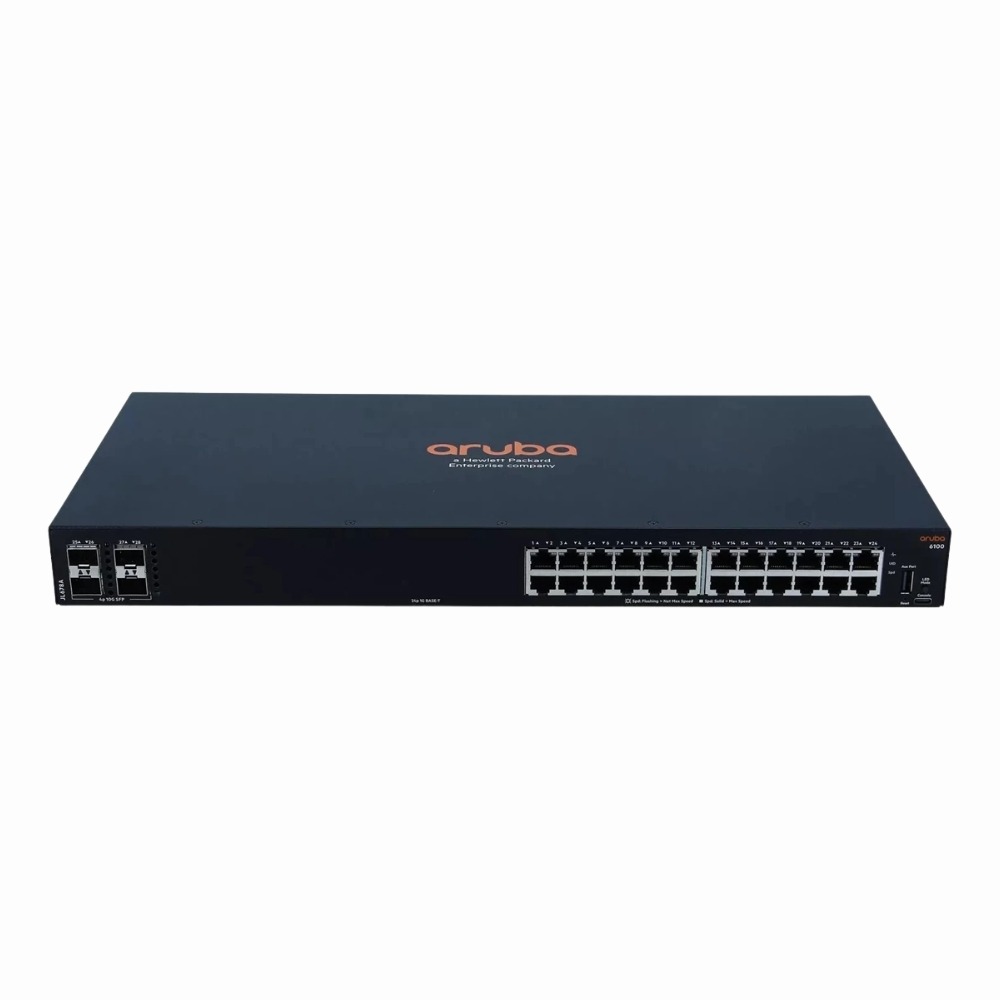

The HP Aruba CX 6100 Series 24-Port Gigabit Ethernet Switch blends reliable Layer 2 switching with flexible connectivity options. It's designed to work well in enterprise edge networks, providing solid performance for everyday business connections without extra complexity. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL678-61021 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24-Ports |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, RJ-45, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,10G SFP+ |
| UpLink Ports | 4-Ports |
| POE Support | No |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 250 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, CLI (SSH), SNMPv2/v3, REST API, Aruba Central |
| Management Type | On-Premises,Cloud |
| Remote Management Protocol | SSH,HTTPS,SNMP,REST |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Dimensions | 43.6 x 440 x 220 mm |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1X |
| Product Description |
|---|
This HP Aruba CX 6100 Series switch offers reliable gigabit connectivity with 24 RJ-45 ports and four high-speed 10G SFP+ uplinks. It's built to handle typical business networking tasks like connecting workstations, printers, and access points in a small to medium-sized office. Often found in campus networks and branch offices, this switch is designed for network admins who need straightforward Layer 2 capabilities without added complexity. Its combination of copper ports and fiber uplinks makes it flexible for various setups. Key Features
This switch typically appears in environments like office wiring closets or network aggregation points. Its balance of port density and speed lets businesses scale easily while maintaining reliable network performance. By combining straightforward management and solid hardware, it supports day-to-day tasks without overwhelming users with unnecessary features. |
