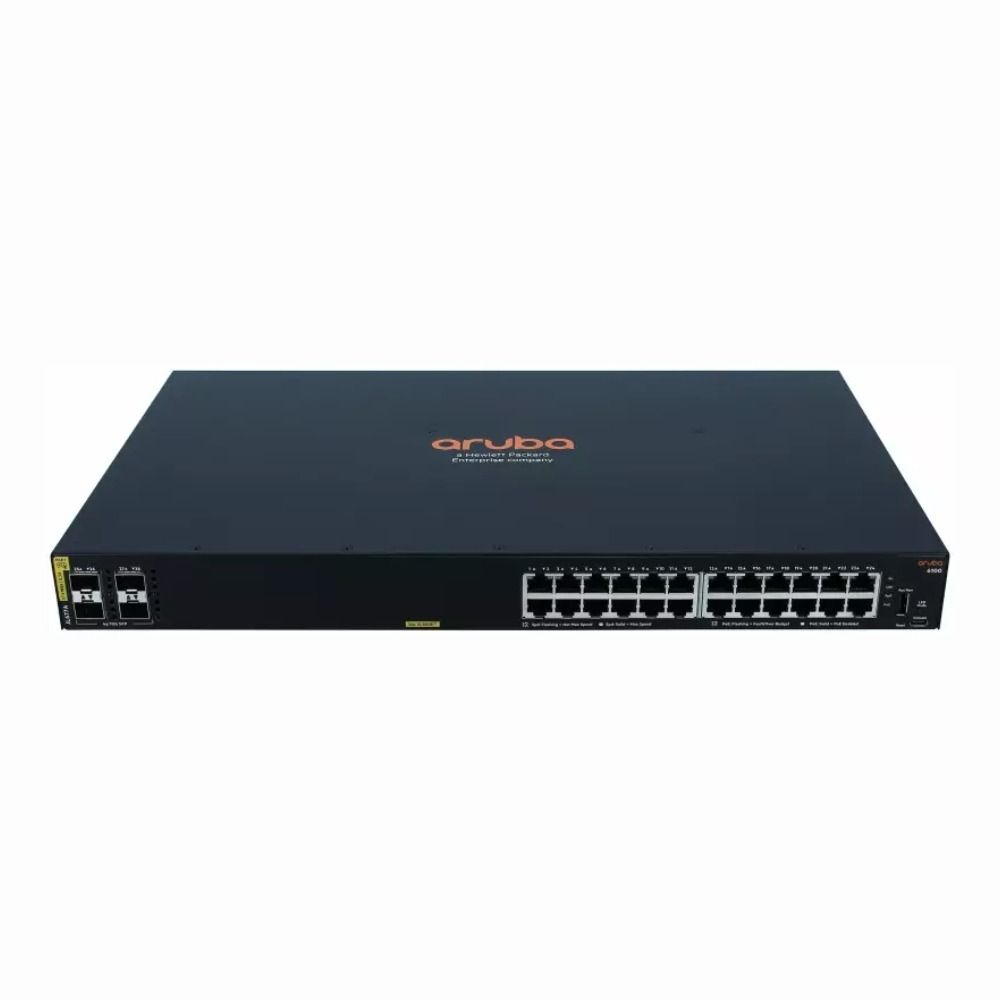

Name: JL677A HP Aruba 6100 24G 24 x Ports 1000Base-T Class4 PoE+ + 4 x Ports 10GbE SFP+ 1U Rack-mountable Layer 3 Managed Stackable Gigabit Ethernet Network Switch
Brand: HP
SKU: JL677A
Price: 1424.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP Aruba 6100 24G switch combines essential gigabit Ethernet connectivity with PoE+ power delivery and Layer 3 management. It fits well in networks requiring flexible port configurations, reliable uplinks, and the ability to manage routing tasks within a compact, rack-mountable design.

General Information
Brand	HP
Part Number	JL677A
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10GbE SFP+
POE Support	PoE+
Switching Capacity	128 Gbps
Switch Forwarding Rate	250 Mpps
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Web GUI,CLI (SSH/Console),SNMP,REST API
Security	802.1X, RADIUS, TACACS+, MAC authentication
Remote Management Protocol	SSH,HTTP,HTTPS,SNMP,REST
Routing Protocol	Static

Physical Characteristics
Dimensions	43.6 mm x 440 mm x 267 mm (1.72 in x 17.32 in x 10.51 in) (H x W x D) - 1U rack-mountable
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,802.3u,802.3ab,802.3z,802.3ae,802.1Q,802.1p,802.1X,IEEE 802.3at

Product Description
The HP Aruba 6100 24G switch is built to handle the demands of modern network environments by providing reliable gigabit connectivity combined with Power over Ethernet capabilities. It’s often found in small to medium-sized business networks, branch offices, and enterprise access layers where efficient power delivery to devices like IP phones, wireless access points, and cameras is needed. Designed for IT professionals and network administrators, this switch offers Layer 3 management features that help simplify network operations and improve traffic flow. Its compact 1U rack-mountable size and stackable design make it a flexible option for dense network deployments. Key Features Offers 24 ports delivering up to 30W per port for powering connected devices Includes 4 SFP+ slots supporting 10GbE speeds for uplinks or stacking Supports Layer 3 routing protocols for efficient data traffic management Stackable design allows expansion without added management complexity 1U form factor fits standard network racks for organized setups This switch is typically deployed in office wiring closets or data centers where space is limited but performance and power delivery are crucial. It helps maintain smooth network operations while powering edge devices directly, reducing the need for extra power adapters.

Use Cases
The HP Aruba 6100 24G switch is commonly deployed in enterprise branch offices and mid-sized campus networks where a balance of gigabit connectivity and advanced Layer 3 features is essential. IT administrators managing environments that require reliable PoE+ power delivery for IP phones, wireless access points, and security devices benefit from its integrated capabilities and stacking support. How It's Used: Supporting edge networking in retail locations by powering POS terminals and surveillance cameras through PoE+ while maintaining high-speed uplinks to the central data center. Enabling campus wiring closets to handle inter-VLAN routing and core network segmentation with Layer 3 switching efficiency. Providing connectivity and power for VoIP deployments in small to medium enterprise office floors, simplifying infrastructure and reducing cabling complexity. Facilitating remote office network aggregation with high-bandwidth 10GbE uplinks for seamless integration into wider corporate networks. Integrating into virtualized environments requiring reliable stacking and managed network segmentation to optimize resource allocation and security. This switch enhances network operational efficiency by consolidating Layer 2 and Layer 3 functions in a compact form factor while supporting scalability through stacking. Its PoE+ capabilities and high-speed uplinks contribute to maintaining performance and flexibility in diverse IT environments.
