| Product Overview |
|---|

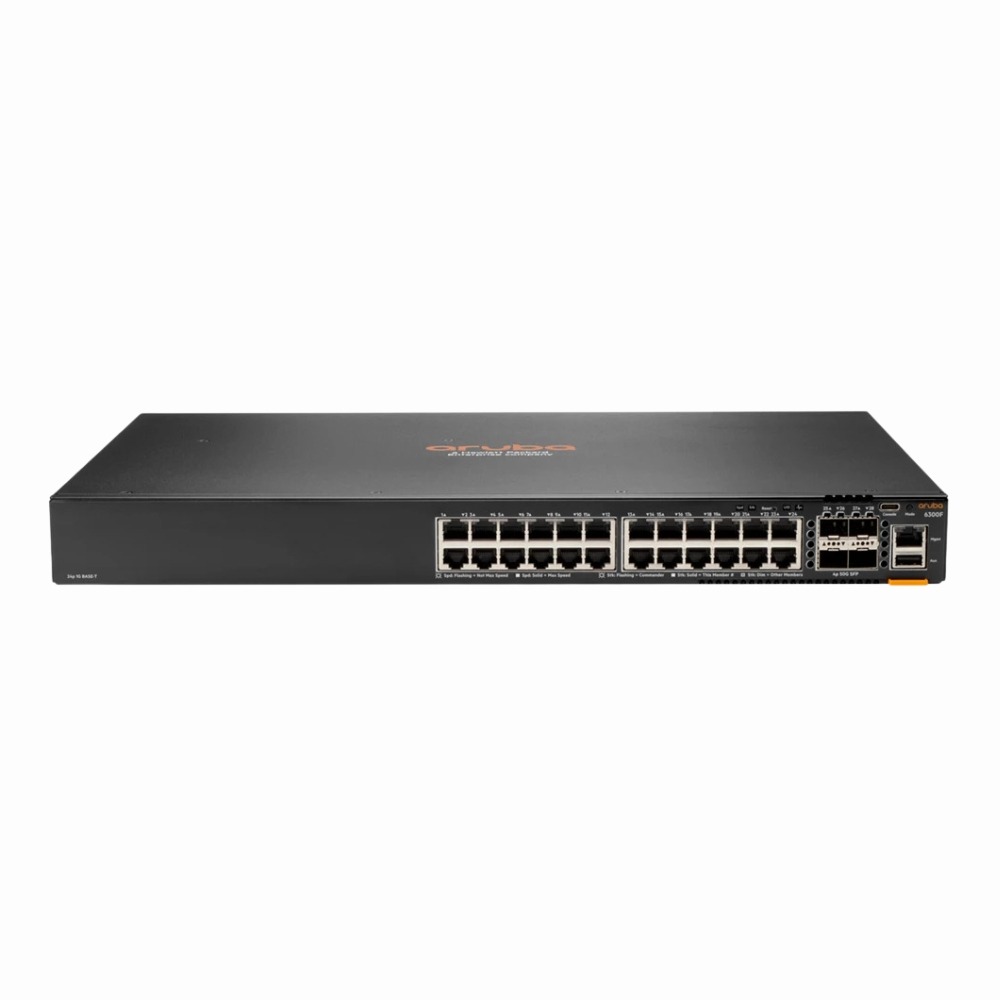

The HP Aruba 6300F 24-port switch delivers a balance of power and speed, accommodating both PoE+ needs and high-speed uplinks. It fits well in racks within enterprise setups, supporting complex network tasks like routing and stacking without overwhelming the existing infrastructure. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL668-61001 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 1000Base-T, SFP |
| Port Speed | 1 Gbps (1000Base-T) |
| UpLink Ports | 4 x 50GbE SFP56 |
| POE Support | PoE+ |
| Switching Capacity | 448 Gbps (non-blocking switching capacity) |
| Switch Forwarding Rate | 875 Mpps (64-byte packets) |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45, SFP56 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, BGP, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (Aruba Central), CLI (SSH), Console (RJ-45), SNMP v1/v2c/v3, REST API |
| Remote Management Protocol | SSH, HTTPS, SNMP, REST API |
| Routing Protocol | Static, OSPF, BGP, VRRP |
| Power & Cooling | |
|---|---|
| Fans | Variable-speed fans (front-to-back airflow) |
| Power | AC 100-240V, 50-60Hz; PoE budget 370W |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
This HP Aruba 6300F switch is designed to handle demanding network environments by combining high-speed connectivity with power over Ethernet capabilities. It's commonly used in enterprise networks, data centers, and campus deployments to provide reliable access and aggregation layers. Built for network administrators and IT teams, the switch delivers robust Layer 3 functionality with enhanced management and stacking features, facilitating streamlined network operations and scalability. Key Features
The switch is typically deployed in medium to large business networks where both high port density and advanced routing are required. Its PoE+ support makes it versatile for powering networked devices without additional cabling. In practice, this model helps maintain smooth network performance while providing room for growth and simplified infrastructure management. |
