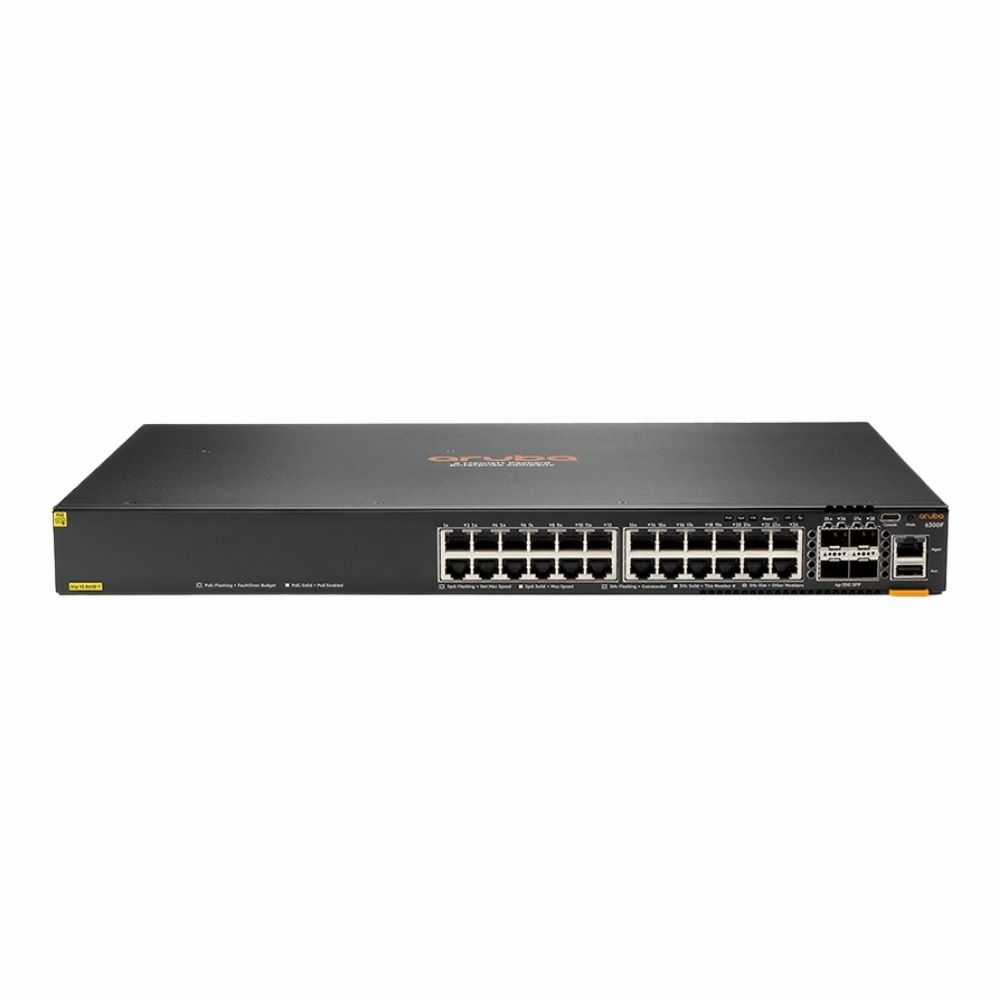

Name: JL664A HP Aruba 6300M 24 x Ports 1000Base-T PoE+ + 4 x Ports 50GbE SFP56 1U Rack-mountable Layer 3 Managed Stackable Gigabit Ethernet Network Switch
Brand: Aruba
SKU: JL664A#ABA
Price: 2196.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP Aruba 6300M switch combines gigabit PoE+ connectivity with high-speed 50GbE uplinks, fitting into modern enterprise networks that demand both power delivery and fast data routing. It handles everyday access layer tasks while supporting advanced Layer 3 features for efficient traffic management.

General Information
Brand	Aruba
Part Number	JL664A#ABA
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	1000Base-T, SFP
Port Speed	1 Gbps
UpLink Ports	4 x 50GbE SFP56
POE Support	PoE+
Switching Capacity	448 Gbps
Switch Forwarding Rate	875 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP56

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web UI,CLI (SSH/Console),SNMP,REST API
Management Type	In-band and Out-of-band (Console)
Remote Management Protocol	SSH,HTTPS,HTTP,SNMP,REST
Routing Protocol	Static,RIP,OSPF,BGP

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az

Product Description
The HP Aruba 6300M switch is built for enterprise networks requiring reliable, high-performance connectivity with power over Ethernet. It is often found in data centers, campus networks, and branch offices where managing multiple devices and fast uplinks are necessary. This switch is commonly used by network administrators and IT professionals who need versatile, scalable solutions supporting both data and power delivery to connected devices like access points, IP phones, and security cameras. Key Features Provides 24 PoE+ ports delivering up to 30W per port for powering devices directly Includes 4 50GbE SFP56 ports for high bandwidth uplinks and stacking Offers Layer 3 routing capabilities to simplify network architecture and improve traffic flow Supports stacking up to multiple switches for unified management and increased capacity Designed for 1U rack mounting to optimize space in server rooms and closets In practice, this switch typically sits at the core or aggregation layer of medium to large enterprise networks. Its mix of PoE+ ports and fast uplinks make it ideal for environments with growing device counts and bandwidth needs. The stackability helps businesses expand without replacing infrastructure.

Use Cases
The HP Aruba 6300M switch is designed for enterprise environments that require robust and scalable network infrastructure with integrated power delivery. It is particularly suitable for IT teams managing mid-sized to large office networks, data aggregation points, or campus environments where both high-speed data transfer and efficient device powering are essential. How It's Used: Deployment in enterprise access layers to provide PoE+ power for IP phones, wireless access points, and security cameras while managing VLANs and routing. Aggregation switch for campus networks handling heavy data traffic with 50GbE uplinks to core switches or data centers. Supporting network segmentation and inter-VLAN routing in multi-department office environments requiring Layer 3 routing capabilities. Rack-mounted installation in wiring closets or data rooms where space optimization and stackable scalability are critical. Integration within edge computing setups to ensure low-latency connectivity and power delivery to edge devices and sensors. By combining high port density, PoE+ support, and advanced Layer 3 features, this switch enables network architects to build efficient and scalable infrastructures. Its stackable design facilitates growth without disrupting operations, supporting evolving network demands with reliable performance.
