| Product Overview |
|---|

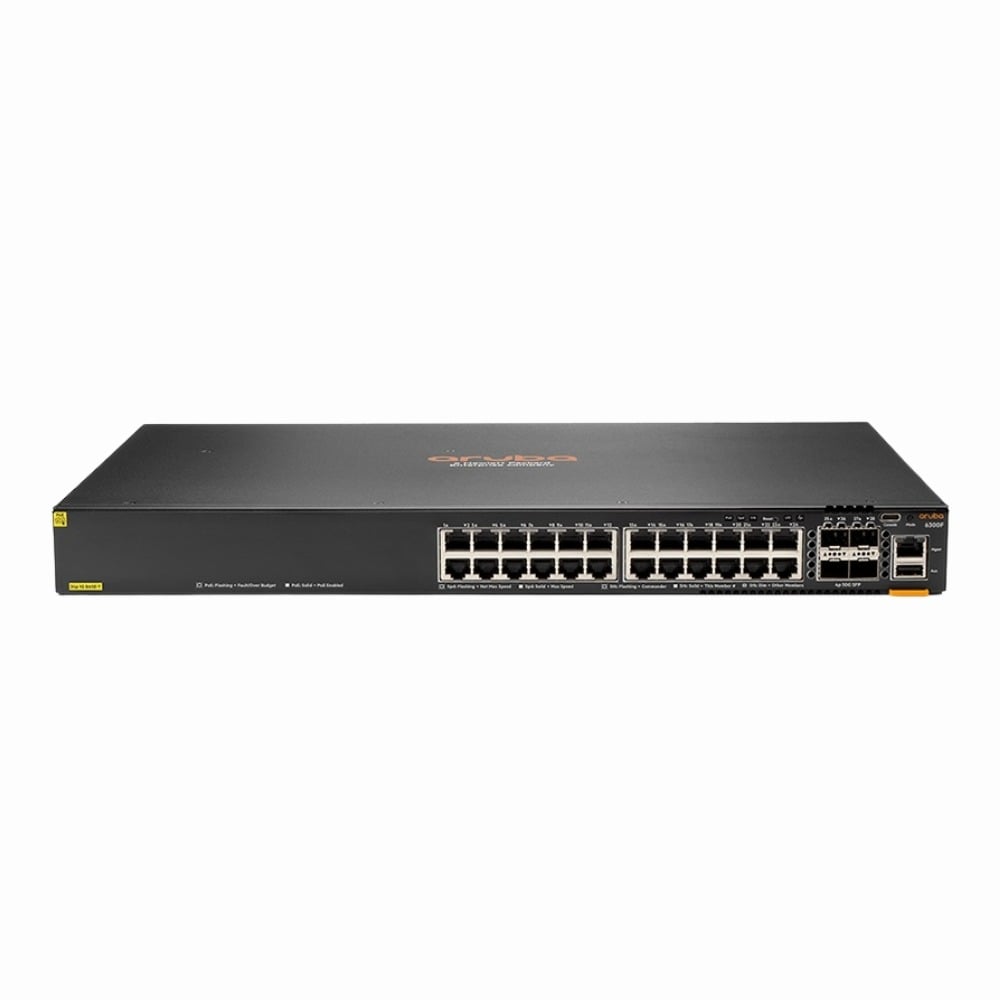

The HP Aruba 6300M 24-Port PoE+ switch delivers managed Layer 3 switching with 24 PoE+ Gigabit ports and 4 50GbE uplink ports, fitting neatly into standard 1U rack spaces. It’s designed to handle growing network demands by combining power delivery and high-speed connections, making it suitable for enterprise networks needing scalable and reliable infrastructure. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL664-61101 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24-Ports |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T |
| Port Speed | 1 Gbps,50 Gbps |
| UpLink Ports | 4 x 50GbE (SFP56) |
| POE Support | PoE+ |
| Switching Capacity | 448 Gbps |
| Switch Forwarding Rate | 875 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP56 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 entries (approx.) |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,CLI,SSH,HTTPS,SNMPv1/v2c/v3,REST API (Aruba Central/NetEdit compatible) |
| Security | 802.1X,MAC Authentication,RADIUS/TACACS+ |
| Remote Management Protocol | SSH,HTTPS,SNMPv1/v2c/v3,REST API |
| Routing Protocol | Static,OSPF,BGP,RIP |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP Aruba 6300M switch is built for medium to large networks requiring reliable, high-performance connectivity. It’s commonly found in enterprise environments where power-over-Ethernet is essential for devices like IP phones, cameras, and wireless access points. Network administrators value its managed features and stacking capability, allowing simplified control and scalability. Key Features
These switches are often deployed in wiring closets or data center racks, managing both power and data efficiently. Their combination of speed, power delivery, and routing features makes them a practical choice for organizations looking to streamline their network infrastructure while maintaining flexibility. |
