| Product Overview |
|---|

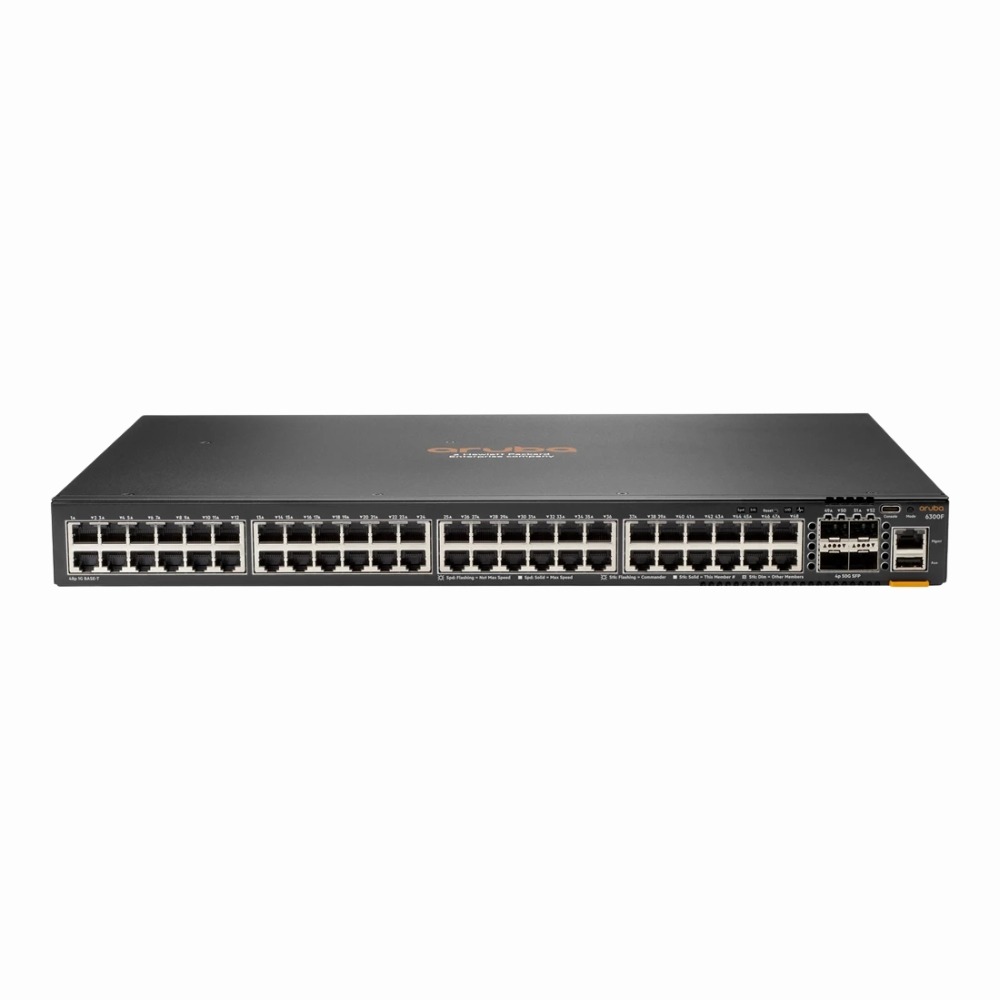

The HP Aruba 6300M 48x 1000Base-T PoE+ switch with 4x 50GbE SFP56 uplinks serves as a versatile network device that blends power, speed, and management in a compact 1U rack form. It fits well in environments needing a balance of access and aggregation ports, often forming the backbone or distribution layer in enterprise setups. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL663-61001 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48-Ports |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 1 Gbps,50 Gbps |
| UpLink Ports | 4 x 50GbE SFP56 |
| POE Support | PoE+ |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP56 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, Command Line Interface (SSH), SNMP, REST API, Aruba Central |
| Remote Management Protocol | SSH,HTTPS,SNMP,REST |
| Routing Protocol | Static,RIP,OSPF,OSPFv3,BGP,VRRP,HSRP,PIM-SM,IGMP |
| Power & Cooling | |
|---|---|
| Power | AC 100-240V, 50/60 Hz |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D |
| Product Description |
|---|
This HP Aruba 6300M switch is built for enterprise networks needing reliable and scalable connectivity. It combines 48 Gigabit Ethernet ports with PoE+ to power devices like phones and access points directly over the network cable. Often found in data centers and campus environments, the switch provides four 50GbE SFP56 uplinks for high-bandwidth connections and supports Layer 3 routing for efficient traffic management. Network administrators and IT teams commonly use it for aggregation and core switching tasks. Key Features
This switch is frequently deployed in medium to large enterprise networks where power delivery and bandwidth matter. It helps simplify network layouts by combining switching, routing, and power in one device, making it easier to manage wired infrastructure and scale as demands grow. |
