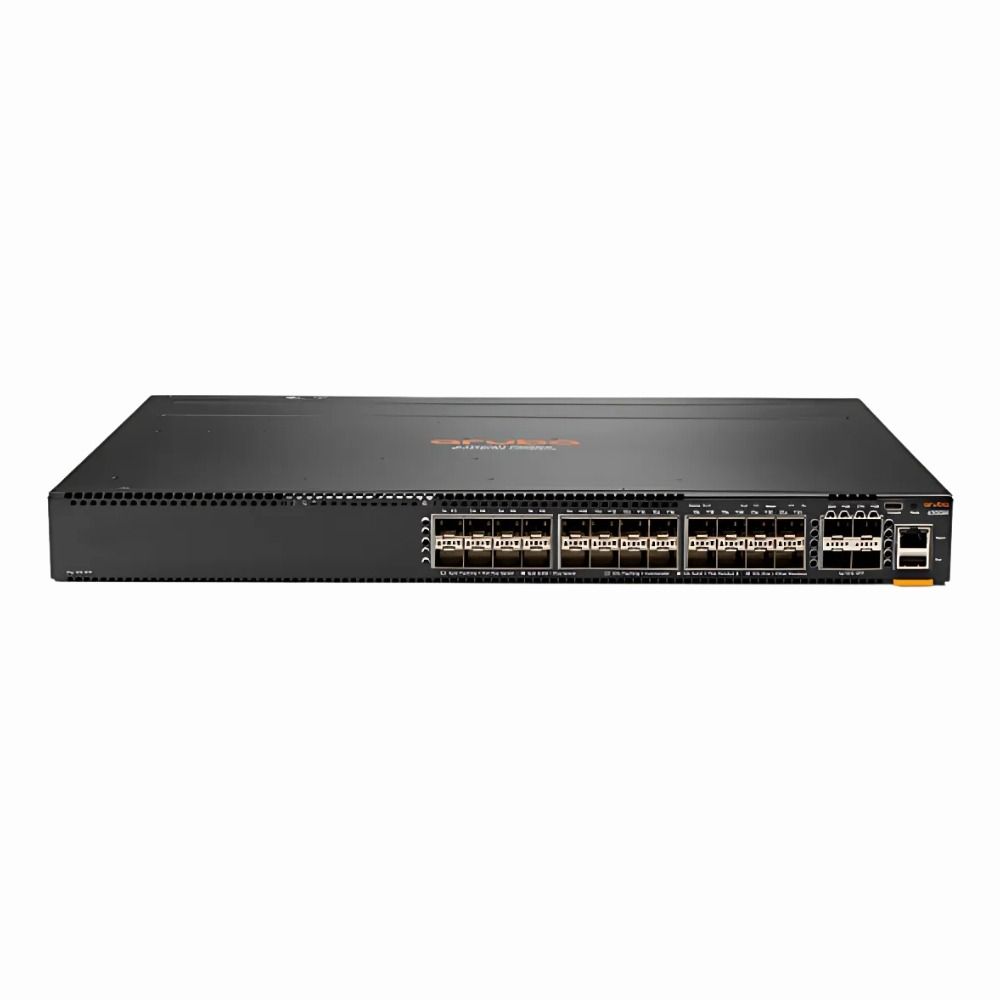

Name: JL658A HP CX 6300 Series 6300M 24 x Ports SFP+ + 4 x Ports SFP56 1U Rack-mountable Layer 3 Managed Gigabit Ethernet Network Switch
Brand: HP
SKU: JL658A#ABA
Price: 9752.25 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP CX 6300 Series 6300M switch offers a versatile mix of 10GbE and 25GbE fiber ports in a compact 1U rack unit. It fits into data center and enterprise network environments where reliable Layer 3 routing and high-density fiber connectivity are needed without taking up excess space.

General Information
Brand	HP
Part Number	JL658A#ABA
Condition	Refurbished

Technical Information
Switch Ports	24 x SFP+
Number of Ports	28-Ports
Port Type	25G SFP28, SFP+
Port Speed	10Gbps (SFP+), 25/50Gbps (SFP56)
UpLink Ports	4 x SFP56
POE Support	No
Switching Capacity	680 Gbps
Switch Forwarding Rate	1,328 Mpps
DRAM	4 GB
Flash Memory	4 GB
VLAN Support	Yes
Max VLANs Supported	1-4094 (supports up to 4094 VLANs)
Layer Support	Layer 3
Connector Type	SFP+, SFP56

Performance
Latency	< 2.5 microseconds (typical)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	128K MAC addresses (approx.)

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Security	802.1X, RADIUS, TACACS+
Remote Management Protocol	SSH, HTTPS, SNMP, REST API, Telnet (legacy)
Routing Protocol	Static, OSPF, BGP, RIP, VRRP

Power & Cooling
Power	AC 100-240V, ~250W (maximum consumption ~185-250W depending on configuration)

Physical Characteristics
Dimensions	1.73 x 17.32 x 17.72 in (H x W x D)
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, TUV, cULus
Compliant Standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1X, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x

Product Description
The HP CX 6300 Series 6300M switch is built for environments that demand flexible and scalable fiber optic networking. Often found in data centers and enterprise backbones, it handles both 10GbE and 25GbE connections seamlessly, allowing for smooth traffic management and expansion. Commonly used by network administrators and IT teams managing mid-sized to large networks, this switch offers Layer 3 routing features that support complex network topologies and improve overall performance. Its rack-mountable form factor makes it a practical fit for server rooms with space constraints. Key Features Delivers 24 high-speed SFP+ ports tailored for 10GbE fiber links Includes 4 SFP56 ports to handle 25GbE traffic for demanding applications Equipped with Layer 3 routing for efficient traffic segregation and management Supports advanced network protocols and security features Designed to fit standard 1U rack spaces easing deployment in tight setups This switch is typically deployed in enterprise and service provider networks where both high throughput and reliable routing are crucial. It helps consolidate fiber connections, reduce bottlenecks, and maintain smooth data flow across different network segments.

Use Cases
The HP CX 6300 Series 6300M switch is designed for environments requiring high-throughput fiber connectivity combined with advanced Layer 3 routing. It serves data centers and enterprise IT infrastructures where space efficiency and scalable network segmentation are critical to supporting virtualization, storage, and compute workloads. How It's Used: Aggregating 10GbE and 25GbE connections in high-density data center racks to support multi-tenant virtualization platforms. Deploying in enterprise core networks to enable high-speed inter-VLAN routing and segmentation for compliance and security. Facilitating storage area network (SAN) edge connectivity with low-latency fiber links to storage clusters and backup systems. Supporting edge computing sites requiring compact rack deployment with robust Layer 3 managed switching. Integrating into multi-site campus environments for scalable fiber uplinks and enhanced network segmentation across buildings. This switch enhances operational efficiency by consolidating high-speed fiber interfaces within a compact footprint while enabling scalable routing for complex network topologies. Its combination of 10GbE and 25GbE ports supports evolving bandwidth demands without expanding rack space, making it suitable for dynamic IT environments focused on growth and performance.
