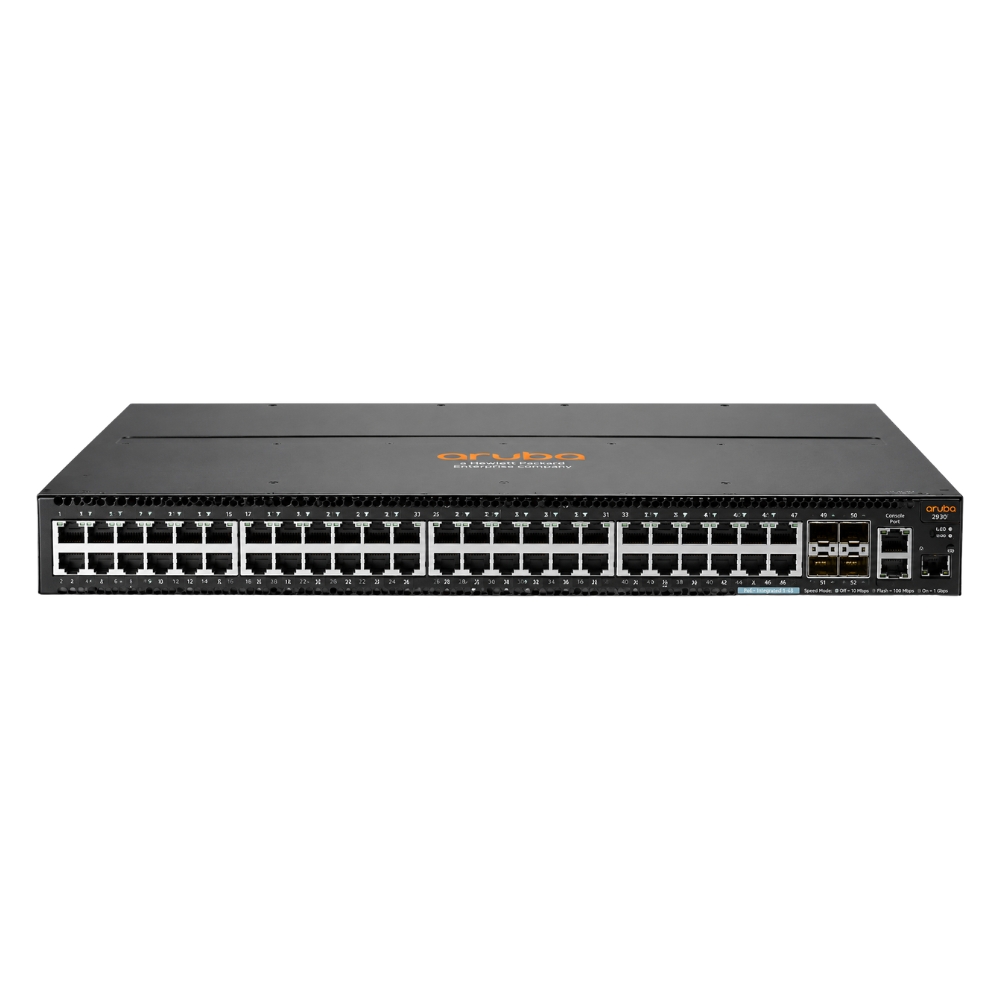

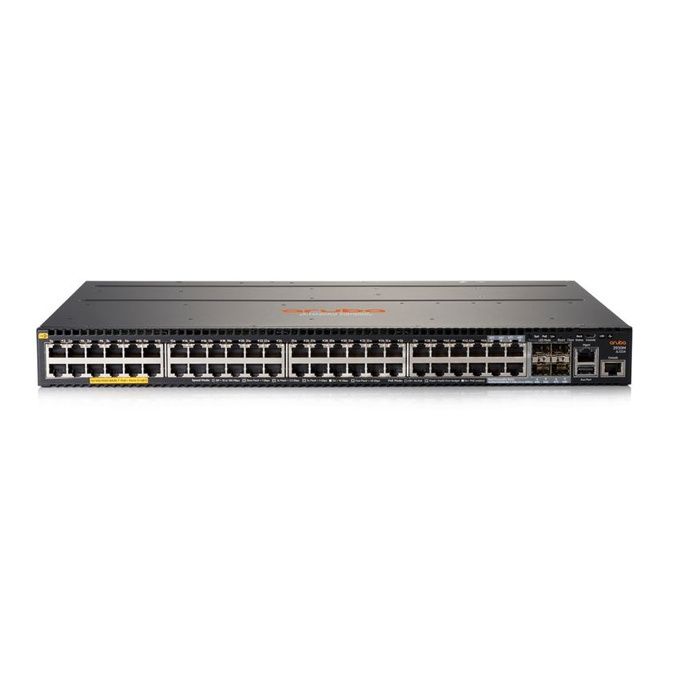

Name: JL558ACM HPE 2930F 48G PoE+ 4SFP+ Layer 3 Managed Switch
Brand: HPE
SKU: JL558ACM
Price: 2182.50 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The JL558ACM - HPE 2930F 48G PoE+ 4SFP+ is a Layer 3 switch designed to deliver comprehensive network connectivity with power delivery on every port. It fits within enterprise networking setups as a reliable access or aggregation switch, balancing performance, power, and management simplicity.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (Console/SSH/Telnet), SNMP v1/v2c/v3, RMON
Security Features	802.1X, ACLs (access control lists), MAC authentication, Port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, Storm control
Management Type	Managed
Remote Management Protocol	SSH,Telnet,HTTP,HTTPS,SNMP

Power & Cooling
Fans	2 (front-to-back, hot-swappable)
Power	Internal AC (100-240 VAC), PoE budget 370 W
Power Supply	Internal 100-240VAC power supply

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3X, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The JL558ACM - HPE 2930F 48G PoE+ 4SFP+ switches enable scalable, high-performance network connectivity with integrated power delivery. These devices are often found in enterprise network infrastructures where both data and power need to be delivered over a single cable. Built for network administrators and IT professionals, this switch accommodates growing network demands while maintaining simplified management. Key Features Supports up to 48 PoE+ ports delivering power and data efficiently Offers 4 SFP+ slots for flexible fiber uplink options Incorporates Layer 3 static and RIP routing for traffic control Equipped with robust security protocols and QoS prioritization Designed for easy integration within existing network environments This switch provides reliable performance and straightforward management, making it a solid choice for expanding network capacity. Its combination of PoE+ and 10Gbps uplinks enhances operational efficiency and network scalability.

Use Cases
This switch is typically deployed in enterprise and campus networks where a high port density with PoE+ is essential. It meets the needs of organizations requiring both power and data transmission over a robust network infrastructure. IT teams in medium to large environments benefit from its flexible uplink options and routing capabilities. How It's Used: Connecting VoIP phones and wireless access points in office environments Supporting data and power needs in branch office networks Aggregating traffic in campus or data center edge deployments Enhancing network reliability with Layer 3 routing in distributed setups Providing fiber uplinks to core switches or servers By combining PoE+ functionality with advanced switching and routing features, this product aids in streamlining network infrastructure. It contributes to efficient power management and scalable connectivity, which are vital for maintaining smooth network operations.
