| Product Overview |
|---|

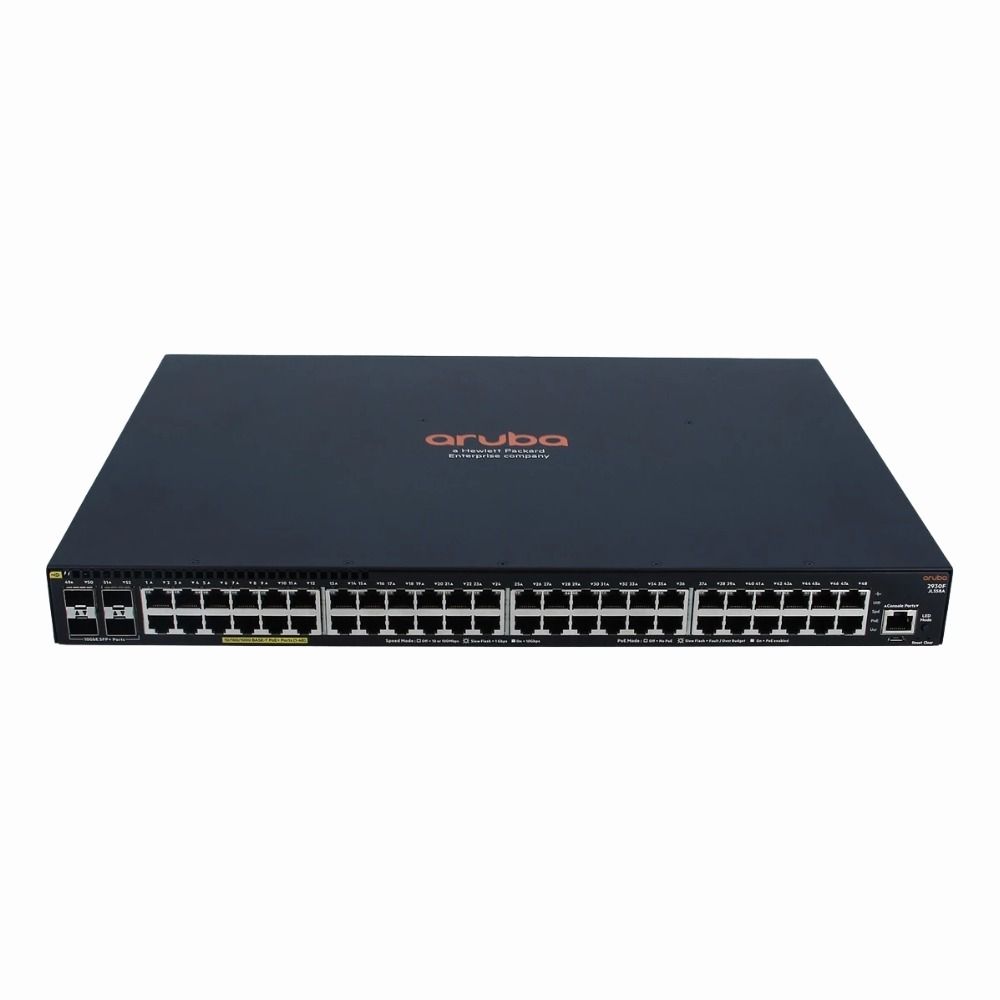

The HP Aruba 2930F switch combines a large number of PoE+ ports with advanced Layer 3 capabilities, making it a solid choice for enterprise access networks. It fits well in places that need dependable wired connections and power delivery to devices like phones and access points, supporting both current and future networking needs. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL558A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP+ (10G) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (SSH, console, Telnet), SNMPv1/v2c/v3, RMON |
| Remote Management Protocol | SSH,HTTPS,HTTP,SNMPv1/v2c/v3,Telnet,Console |
| Power & Cooling | |
|---|---|
| Fans | 1 (variable speed) |
| Power | 740W PoE budget; AC input 100-240VAC |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.4 x 16.9 in (44 x 442 x 430 mm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP Aruba 2930F 48G PoE+ 4SFP+ switch is built for reliable network performance in medium to large business environments. It provides power and data over Ethernet to connected devices like IP phones, wireless access points, and security cameras. Often found in enterprise access layer deployments, it helps manage traffic efficiently with Layer 3 routing features. This switch is commonly used in office networks, campus environments, and wiring closets where robust connectivity and Power over Ethernet support are essential. Network administrators and IT teams benefit from its straightforward management and scalability. Key Features
This switch is typically deployed in environments where reliable power delivery and fast data transfer are critical, such as corporate offices and campus networks. It plays a key role in simplifying network infrastructure by consolidating power and connectivity in a single device, helping reduce cabling and hardware complexity. |
