| Product Overview |
|---|

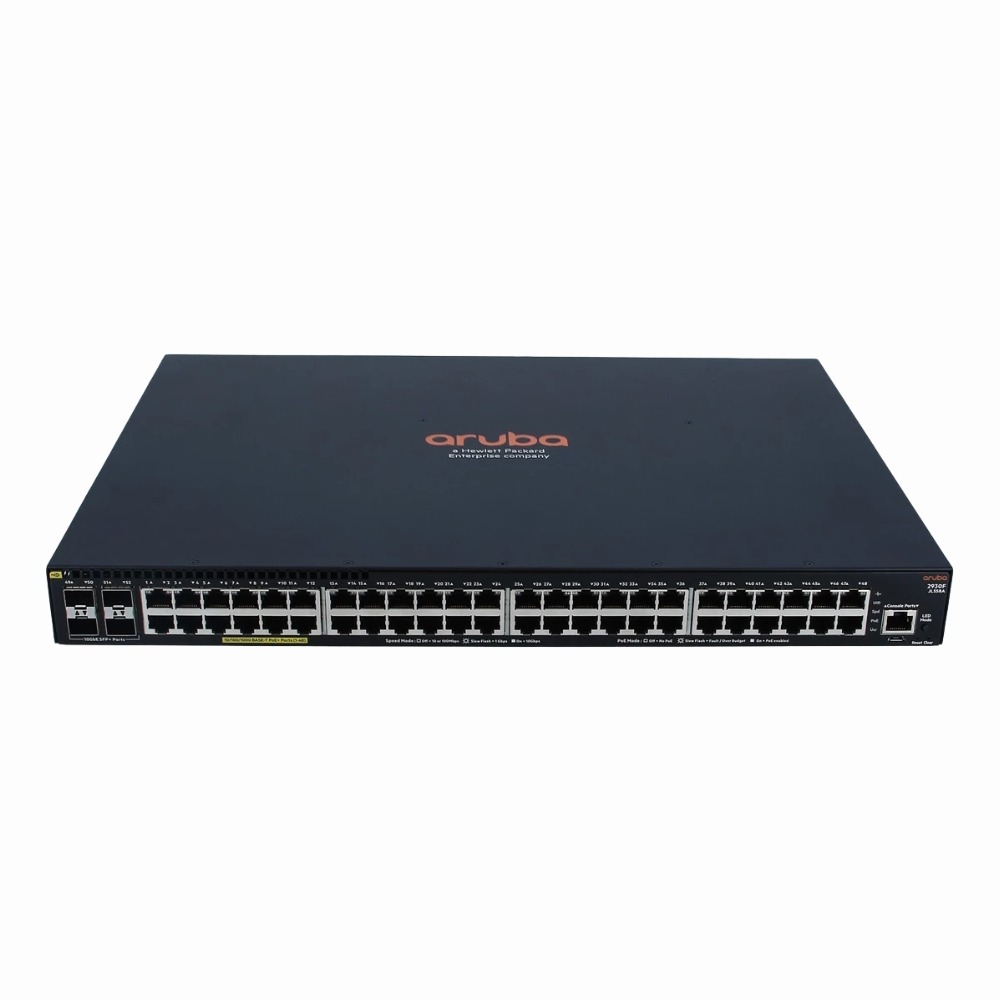

The HP Aruba 2930F 48G PoE+ switch is a managed Gigabit Ethernet device that fits into enterprise and mid-sized network setups. It combines high port density with Power over Ethernet capabilities and multiple uplink options, making it a practical choice for locations needing both data and power distribution through a single, manageable platform. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL557A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x SFP (1G) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, CLI (Console/SSH), SNMP, RMON |
| Security | SSL, SSH, RADIUS, TACACS+ |
| Remote Management Protocol | SSH, HTTPS, HTTP, SNMPv1/v2c/v3 |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | 2 field-replaceable fans |
| Power | 740W PoE budget; AC input 100-240 VAC |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 16.54 in (43.7 x 440 x 420 mm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP Aruba 2930F Series 48G PoE+ switch delivers reliable, high-speed network performance with Power over Ethernet support. It's often found in enterprise environments where multiple devices like IP phones, wireless access points, and surveillance cameras need both data and power through a single cable. Built for mid-sized networks, this switch offers Layer 3 features that help manage traffic efficiently and support growing network demands. Key Features
This switch is commonly deployed in office networks, campus environments, and data centers where reliable connectivity and power delivery are essential. It helps reduce clutter by powering devices through Ethernet cables and simplifies network management while maintaining robust performance. |
