| Product Overview |
|---|

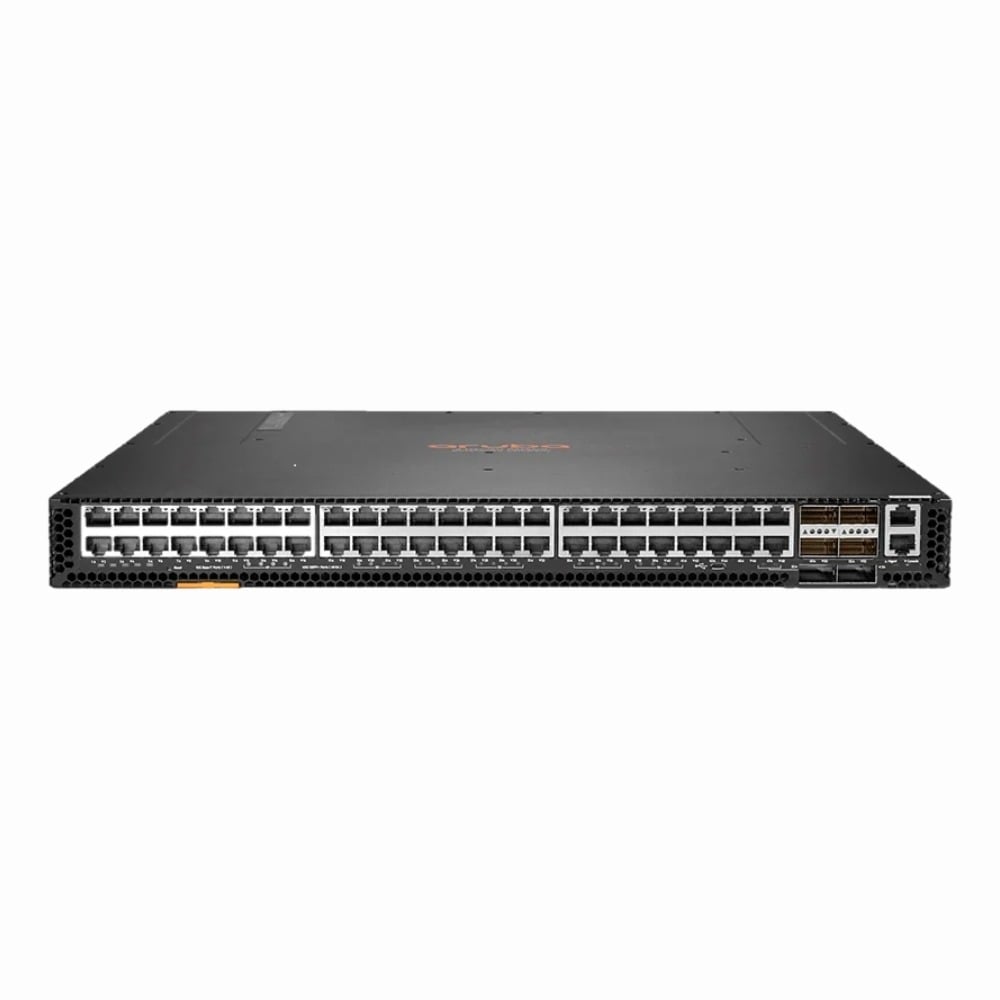

The Aruba 8320 48-Port 10GBase-X switch combines high-speed fiber connectivity with advanced Layer-3 functions, fitting neatly into enterprise core and data center aggregation roles. It supports a mix of 10Gbps fiber interfaces alongside QSFP+ ports for uplinks, enabling flexible network setups while handling complex routing tasks with ease. |
| General Information | |
|---|---|
| Brand | Aruba Networks |
| Part Number | JL479A#B2B |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 x 10GBase-X (SFP+),6 x QSFP+ (40G) |
| Number of Ports | 48-Ports |
| Port Speed | 10 Gbps,40 Gbps |
| Max VLANs Supported | 1-4094 |
| Connector Type | SFP+,QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Management Type | CLI,Web GUI,REST API,SNMP |
| Security | ACL,802.1X,RADIUS,SSH |
| Remote Management Protocol | SNMP,SSH,REST API,CLI |
| Routing Protocol | OSPF,BGP,Static,RIP |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Compliant Standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3z,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.1D |
| Product Description |
|---|
The Aruba 8320 switch offers robust 10 Gigabit Ethernet connectivity with a focus on high performance and flexibility. It is often found in data centers and large enterprise environments where reliable, scalable network infrastructure is essential. Built for network engineers and IT teams, this switch supports complex Layer-3 routing, making it suitable for handling demanding traffic loads and enabling efficient network segmentation. It's commonly used in aggregation or core layers of campus networks and data center topologies. Key Features
This switch is typically deployed in enterprise network cores or data center aggregation layers, where it handles large volumes of traffic with minimal latency. Its combination of port density and routing capabilities makes it well-suited for environments that require both speed and network intelligence. |
| Use Cases |
|---|
The Aruba 8320 48-Port 10GBase-X switch is primarily deployed in enterprise and data center environments where high-density 10Gbps fiber connectivity and advanced Layer-3 routing are critical. Network architects and IT teams benefit from its ability to consolidate core or aggregation layers in large-scale networks requiring both performance and flexibility. How It's Used:
By combining high port density with comprehensive Layer-3 features, the Aruba 8320 enhances operational efficiency and supports the scalability demands of evolving enterprise networks. Its flexible interface options accommodate diverse deployment topologies, making it integral to maintaining consistent network performance and resilience. |
