| Product Overview |
|---|

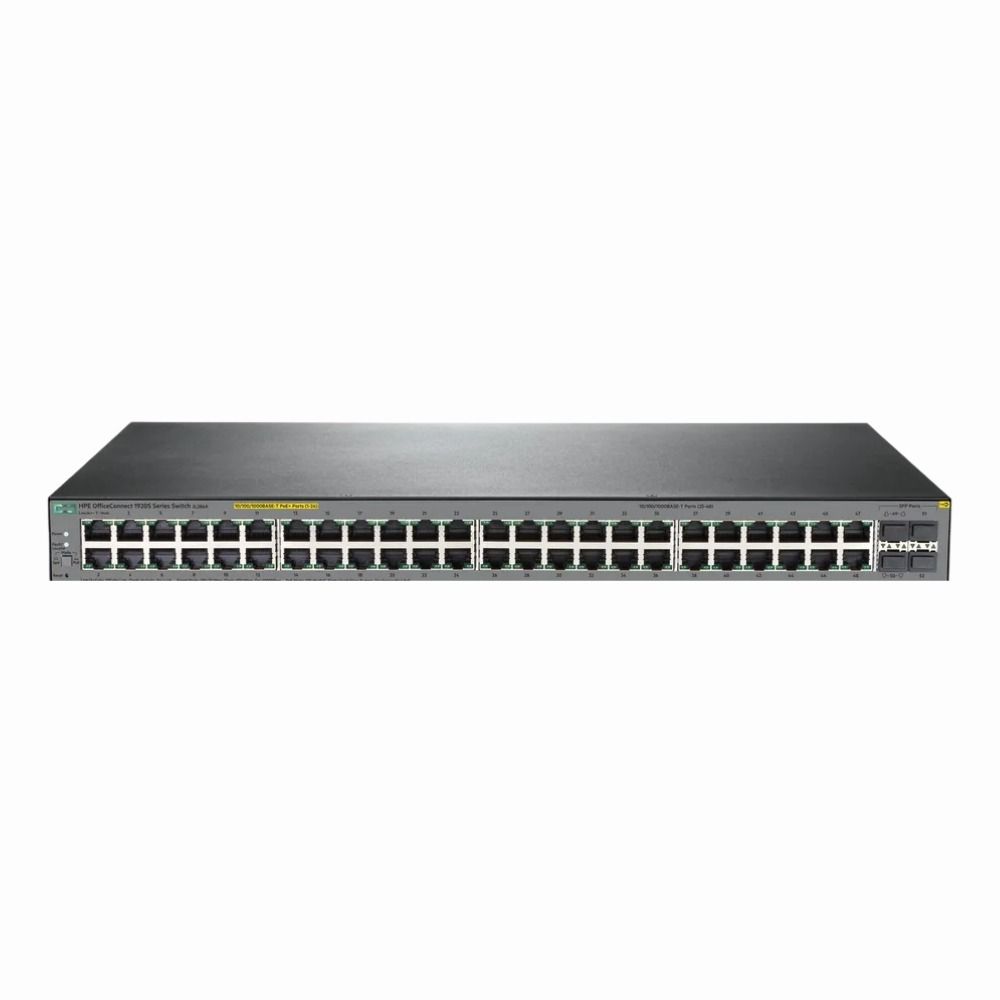

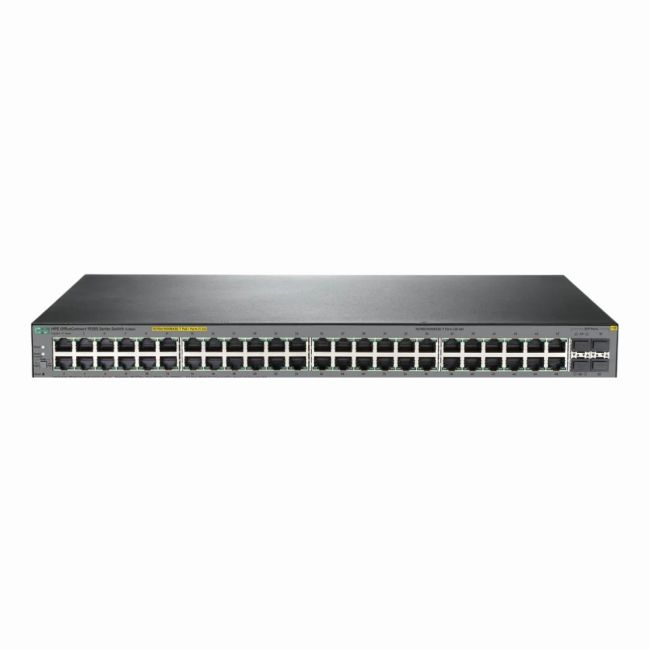

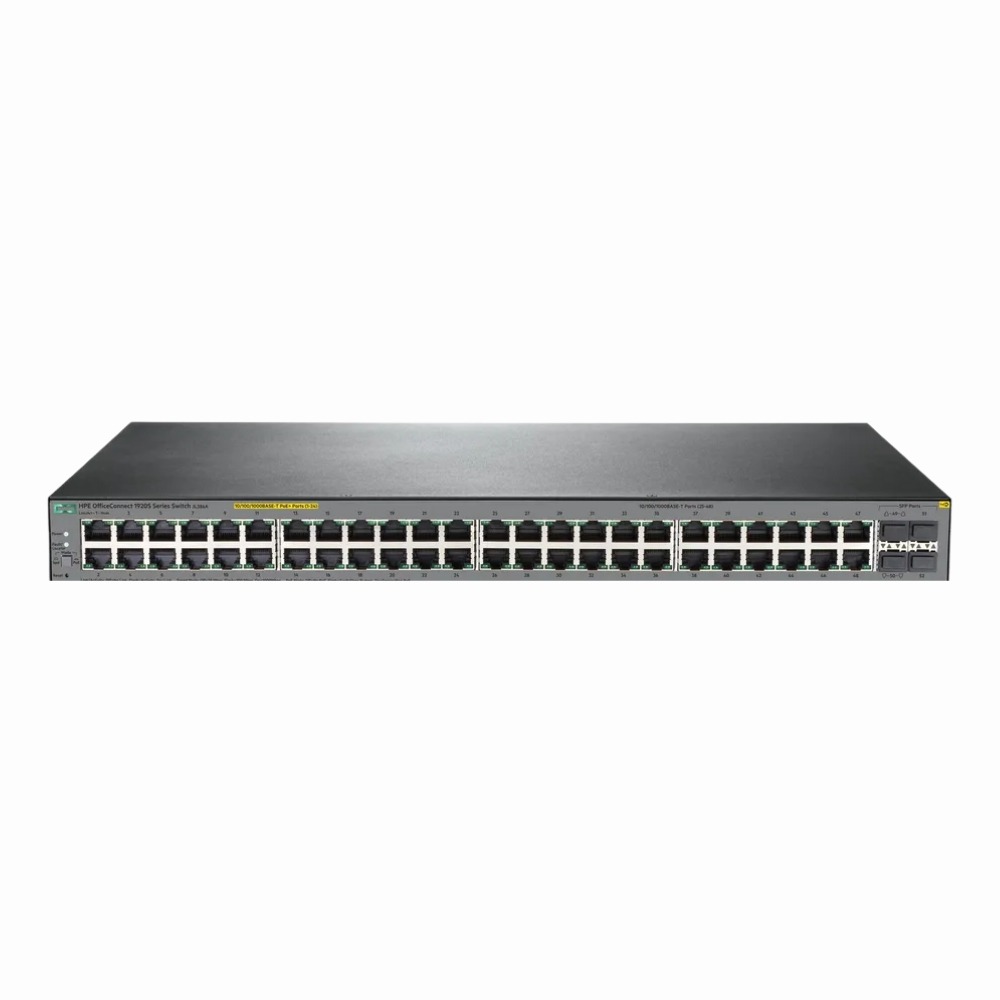

The HP OfficeConnect 1900 Series 1920S switch brings together a robust set of features tailored for small to medium business networks. It combines multiple Gigabit Ethernet ports with PoE+ capability and flexible fiber options, fitting well into wired networks that require reliability and manageability without complexity. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL386A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 x RJ-45,4 x SFP |
| Number of Ports | 52-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x SFP |
| POE Support | PoE+ |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.125 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (SSH/Console), SNMPv1/v2/v3 |
| Security Features | ACLs, 802.1X Authentication, DHCP Snooping, IP-MAC-Port Binding, MAC Authentication, DoS Protection, SSL, SSH |
| Remote Management Protocol | HTTP, HTTPS, SSH, SNMP |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Power | AC 100-240V, PoE Budget 370W |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 x 440 x 210 mm |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP OfficeConnect 1900 Series 1920S switch is designed for business networks needing a reliable, managed Ethernet solution. It offers a mix of high-speed copper and fiber ports, making it a versatile choice for connecting a wide variety of devices and uplinks. Often found in medium-sized offices or branch locations, this switch balances performance and power delivery with its PoE+ ports, which can support IP phones, wireless access points, and surveillance cameras directly from the switch. Key Features
This switch is typically deployed in office environments where both data and power delivery to network devices are essential. It serves as a central point for connecting workstations, servers, and networked devices while simplifying infrastructure by limiting the need for separate power supplies. Users often appreciate its balance of features and ease of management, making it a solid choice for IT teams managing growing or evolving network demands. |
