| Product Overview |
|---|

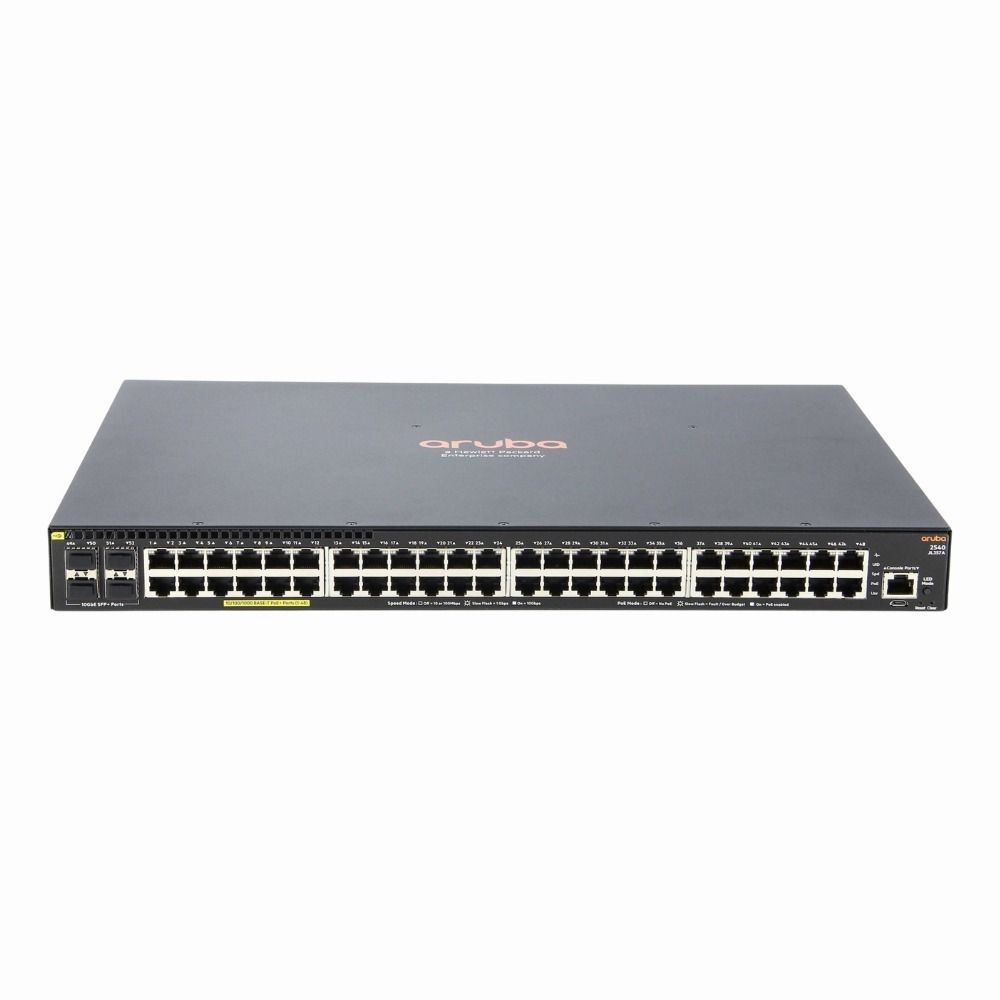

The HP Aruba 2540 Series 48G PoE+ switch delivers reliable Gigabit Ethernet connectivity combined with Power over Ethernet capabilities. It fits well in managed network settings that need a balance of port density, powered device support, and flexible fiber uplinks. This switch is a solid choice for organizations looking to support a variety of networked devices while maintaining control and performance at the local network layer. |
| General Information | |
|---|---|
| Brand | Aruba Networks |
| Part Number | JL357A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Yes |
| Management Interfaces | Web UI (HTTP/HTTPS), Command-Line Interface (Console, SSH), SNMPv1/v2c/v3, RMON |
| Security | Yes |
| Remote Management Protocol | SNMP,SSH,HTTPS,HTTP |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Power | 370W (PoE budget) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 10.24 in (44 x 440 x 260 mm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad |
| Product Description |
|---|
The HP Aruba 2540 Series 48G PoE+ switch is built for network environments that require reliable Gigabit connectivity with power delivery over Ethernet. Often found in enterprise or campus networks, it helps connect devices like IP phones, wireless access points, and security cameras efficiently. Designed for IT teams managing medium-sized networks, this switch simplifies network setup and control while supporting high data throughput and flexible uplinks through its 4 SFP+ ports. Its Layer 2 capabilities make it suitable for managing traffic within a local area network and optimizing network performance. Key Features
This switch is commonly deployed in office buildings, schools, and similar settings where a mix of data and powered connections are needed. It helps streamline network operations and reduces the need for separate power sources for devices. |
