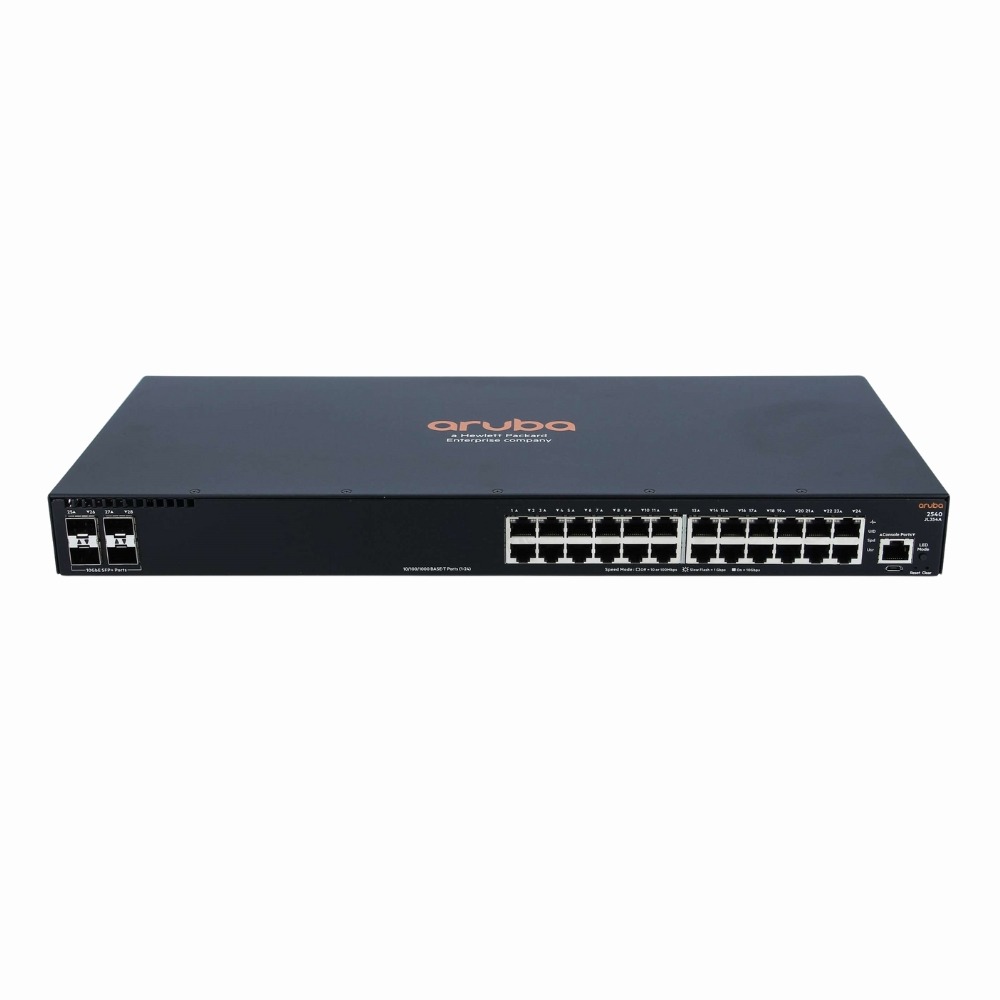

Name: JL354-61101 HPE Aruba 2540 24G 4SFP+ Layer 2 Managed Gigabit Ethernet Switch
Brand: HPE
SKU: JL354-61101
Price: 257.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP Aruba 2540 24G 4SFP+ switch combines a solid set of Ethernet ports with high-speed SFP+ uplink options, fitting well in managed Layer 2 networks. It’s designed to serve as a reliable access switch in varied settings, handling user and device connections while providing tools to segment and secure the network effectively.

General Information
Brand	HPE
Part Number	JL354-61101
Condition	Refurbished

Technical Information
Switch Ports	24 x RJ-45 10/100/1000Base-T,4 x SFP+ 10GbE
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps,10 Gbps
UpLink Ports	4 x SFP+ (10Gb)
POE Support	No
Switching Capacity	128 Gbps
Switch Forwarding Rate	95.24 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	No
Layer Support	Layer 2+
Connector Type	RJ-45,SFP+,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8,000 entries (approx.)

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), Serial Console (RJ-45), USB Console, SNMP v1/v2c/v3, RMON
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMPv1/v2c/v3
Routing Protocol	Static,RIP

Physical Characteristics
Weight	5.00
Operating Temperature	0�C to 45�C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1Q (VLAN), IEEE 802.1p (QoS), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1X (Auth)

Product Description
The HP Aruba 2540 Series 24G 4SFP+ switch provides reliable and efficient Layer 2 networking with a blend of high-speed copper and fiber connectivity. It's built for environments needing dependable wired access with scalable uplinks for growth. Often found in office networks, data closets, and campus settings, this switch handles everyday networking tasks while supporting advanced features for network segmentation and traffic prioritization. Key Features 24 RJ-45 ports delivering 10/100/1000 Mbps connections for user devices Four SFP+ slots allow flexible 10 Gbps fiber or copper uplinks Comprehensive Layer 2 capabilities including VLANs and link aggregation Integrated QoS to prioritize voice and video traffic effectively Supports security features like 802.1X and DHCP snooping to protect the network This switch typically appears in medium-sized business networks or branch offices where cost-effective, manageable connectivity is essential. It helps maintain smooth network operations, offering enough capacity for current needs while being ready for future expansions.

Use Cases
The HP Aruba 2540 24G 4SFP+ switch is optimized for enterprise and SMB environments requiring reliable Layer 2 connectivity combined with high-speed uplinks. It effectively supports network segmentation and device density in office floors, wiring closets, and branch locations where managed, secure switching is essential. How It's Used: Deploying access layer switching in SMB office networks to connect end-user devices while enabling VLAN segmentation for security. Integrating into enterprise wiring closets as an access switch with 10GbE uplinks to aggregation or core switches, supporting high-bandwidth applications. Supporting edge computing environments by providing fast, manageable connections for IoT devices and localized data processing nodes. Extending network reach in remote or branch offices with compact, managed Layer 2 switching that simplifies network management and policy enforcement. Facilitating virtualization workloads by connecting virtualized servers and storage clusters with reliable gigabit access ports and high-speed uplinks. This switch enhances operational efficiency through its managed features, allowing IT teams to segment traffic and apply QoS policies effectively. Its scalability supports growing device counts and bandwidth demands typical in dynamic enterprise and SMB networks.
