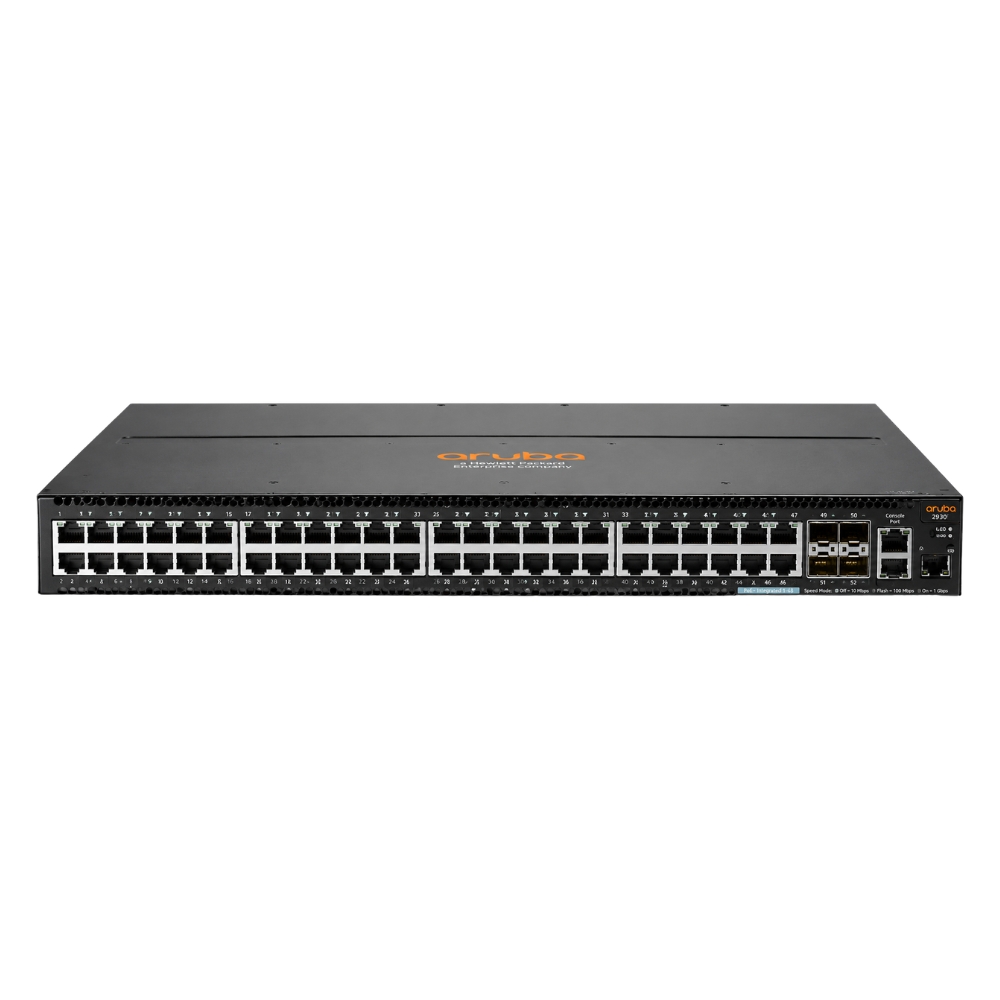

Name: JL262AR HPE 2930F 48G PoE+ 4SFP Layer 3 Switch 48-Port
Brand: HPE
SKU: JL262AR
Price: 1705.60 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JL262AR - HPE 2930F 48G PoE+ 4SFP Layer 3 Switch offers robust connectivity with 48 PoE+ ports and flexible fiber uplinks. It fits well in network cores or aggregation layers where routing and power delivery are needed together. This switch balances high port density with Layer 3 functionality, making it suitable for managing complex network topologies while providing dependable power and bandwidth.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+, SFP, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps (10/100/1000Base-T), 10 Gbps (SFP+ uplinks)
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+,SFP,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI, Command Line Interface (SSH/Console), SNMP v1/v2c/v3, RMON
Security Features	ACLs, 802.1X authentication, MAC authentication, RADIUS, TACACS+, DHCP snooping, Dynamic ARP Inspection (DAI), IP-MAC-Port binding, DoS protection, Storm control
Management Type	Managed
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMPv1/v2c/v3
Routing Protocol	Static,RIP

Power & Cooling
Fans	2
Power	740 W (maximum PoE budget); internal AC power supply
Power Supply	Internal, fixed AC power supply (100-240 VAC)

Physical Characteristics
Dimensions	1.72 x 17.32 x 15.63 in (HxWxD) (approx.)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The JL262AR - HPE 2930F 48G PoE+ 4SFP Layer 3 Switch is designed to handle enterprise network traffic with a combination of high-density ports and advanced routing features. It is commonly found in environments where both power-over-Ethernet and high-speed data transfer are essential, such as in office networks or campus settings. IT professionals and network administrators often rely on this switch to consolidate network infrastructure and streamline connectivity. Key Features Supports up to 48 PoE+ enabled ports delivering power and data over a single cable. Includes 4 SFP slots providing flexible fiber uplink options for network expansion. Offers Layer 3 routing capabilities to manage inter-VLAN traffic efficiently. Equipped with robust switching architecture optimized for mid-sized networks. Integrates with HPE Intelligent Management Center for centralized control. This switch plays a crucial role in maintaining smooth network operations by combining power delivery and data switching in a compact form. Its reliable performance and routing capacity contribute to reducing network complexity and improving data flow management. The design ensures that it can operate continuously with minimal downtime, supporting both current and future networking needs.

Use Cases
This switch is typically deployed in enterprise and campus networks where power and data are both critical. It serves network architects looking to consolidate devices and reduce cabling complexity. The environments benefiting most include mid-size IT infrastructures requiring reliable routing and PoE+ capabilities. How It's Used: Deployed in office buildings to power VoIP phones and wireless access points. Used in data center edge layers to provide network segmentation and routing. Installed in university campuses to connect multiple departments via fiber uplinks. Integrated within managed service provider environments for client network aggregation. Utilized in retail chain locations to centralize device management and power delivery. By supporting both data switching and power delivery, this switch helps streamline network layouts and improves operational efficiency. Its routing features enable better traffic control, which is essential for scalable and manageable enterprise networks.
