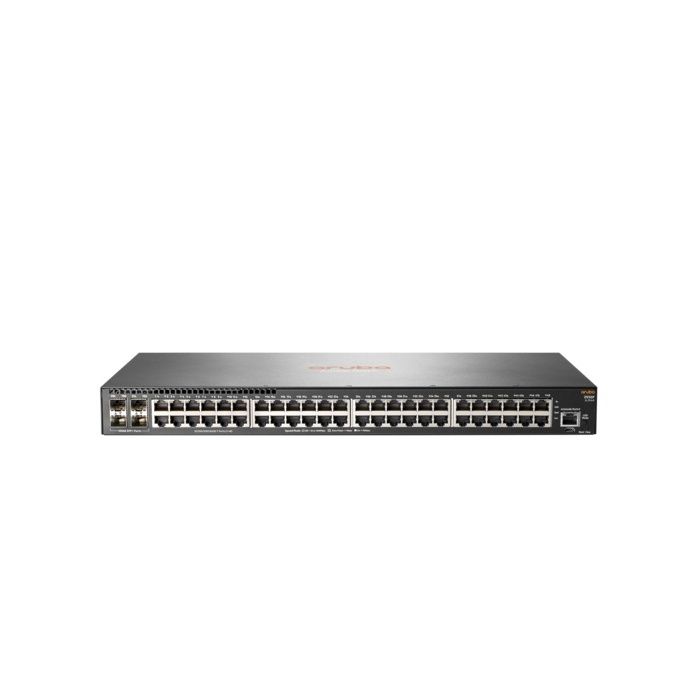

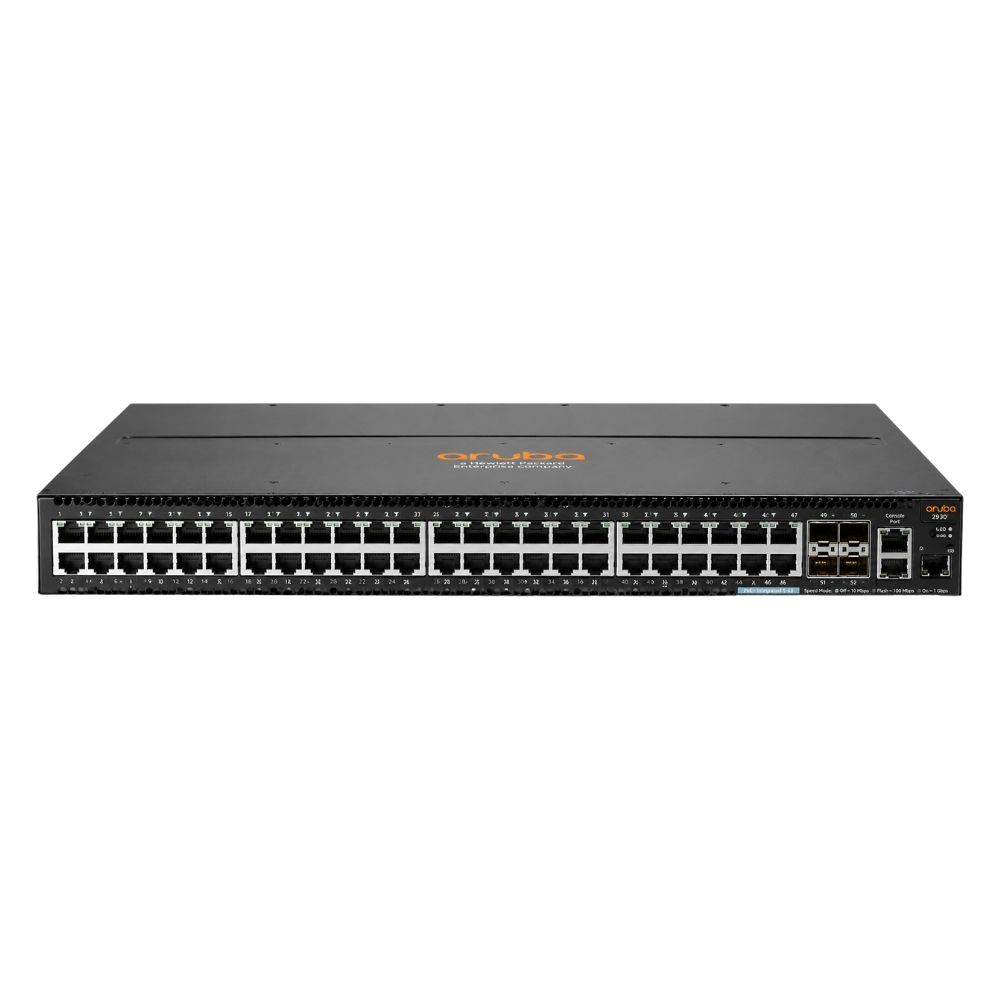

Name: JL254AR HP 2930F 48G 4SFP+ 48-Port Layer 3 Managed Gigabit Switch
Brand: HP
SKU: JL254AR
Price: 1386.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JL254AR - HP 2930F 48G 4SFP+ Layer 3 Switch is a versatile network device that combines extensive port availability with Layer 3 routing capabilities. It fits into enterprise environments where structured network segmentation and high bandwidth connections are necessary to support complex network demands.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10G SFP+
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (Console/SSH),SNMP,RMON,REST API
Security Features	ACLs,802.1X,RADIUS,TACACS+,SSH,SSL,MAC authentication,Port security,DHCP snooping,IP Source Guard,Dynamic ARP Inspection
Management Type	Managed
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS,REST
Routing Protocol	Static,RIP

Power & Cooling
Fans	Yes (variable speed)
Power Supply	Internal, 100-240 VAC, 50-60 Hz

Physical Characteristics
Dimensions	1.73 x 17.32 x 18.50 in (H x W x D)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3ad,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ae

Product Description
The JL254AR - HP 2930F 48G 4SFP+ Layer 3 Switch is designed to handle demanding network environments where reliability and scalability are essential. Often found in medium to large enterprise networks, it offers comprehensive Layer 3 features that allow for efficient routing and traffic control. Network administrators and IT professionals benefit from its flexibility and high port density. Key Features Supports up to 48 Gigabit Ethernet ports paired with 4 SFP+ slots for 10Gbps uplinks Delivers Layer 3 static routing and advanced IP management options Equipped with VLAN and QoS features for effective traffic prioritization Designed with stacking capabilities to simplify network expansion Includes security features like ACLs to protect network access This switch plays a vital role in creating a reliable and adaptable network infrastructure. Its performance and routing features help maintain smooth data flow and support the growing demands of connected devices. The JL254AR is a dependable choice for maintaining network stability and optimizing resource use.

Use Cases
This switch is commonly deployed in enterprise IT environments and data centers that require high port counts and advanced routing functionality. It benefits users managing large networks with diverse traffic flows and the need for scalable network architecture. How It's Used: Providing core and distribution layer switching in campus networks Connecting virtualization clusters with high-speed 10Gbps uplinks Supporting segmented office networks through VLAN routing and access control Facilitating aggregation of multiple access switches in medium-sized data centers Enabling scalable stack configurations for growing enterprise networks By supporting reliable routing and high-density connectivity, the switch helps maintain operational efficiency across complicated network setups. It ensures consistent performance while allowing for network growth and segmentation as organizational needs evolve.
