| Product Overview |
|---|

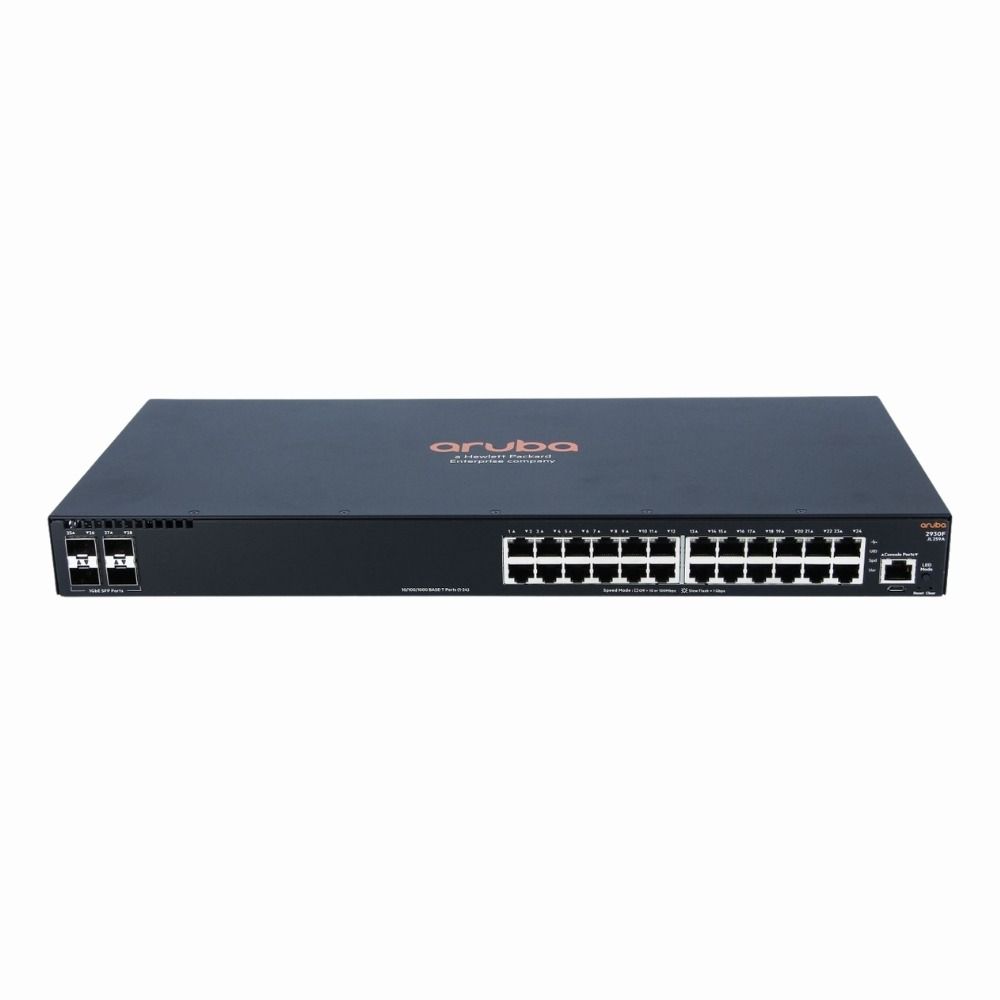

The HP Aruba 2930F 24G 4SFP+ switch combines high port density with Layer 3 capabilities, making it a solid choice for mid-sized networks that need both speed and management flexibility. It fits well into environments where reliable gigabit access and efficient uplinks are required to keep network operations running smoothly. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL253-61101 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 x RJ-45 10/100/1000Base-T |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 1 Gbps,10 Gbps |
| UpLink Ports | 4 x SFP+ (10G) |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, Command-Line Interface (CLI) (Console/SSH), SNMP, REST API |
| Security | 802.1X,RADIUS,TACACS+,ACLs |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,HTTPS,REST API |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.36 x 13.78 in (44 x 441 x 350 mm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1X |
| Product Description |
|---|
The HP Aruba 2930F 24G 4SFP+ switch is designed to handle demanding network environments where reliable connectivity and advanced management are crucial. Often found in enterprise and campus networks, this switch supports high-speed wired connections and flexible uplink options through its SFP+ ports. Built for IT teams managing complex infrastructures, it delivers Layer 3 routing features that simplify network segmentation and improve traffic flow. The switch is commonly used in wiring closets or data centers to support devices ranging from workstations to servers. Key Features
This switch is typically deployed in enterprise LANs where dependable high-speed connections are essential. It plays a vital role in maintaining smooth data transfers and network segmentation, ensuring that business applications and services remain responsive. |
