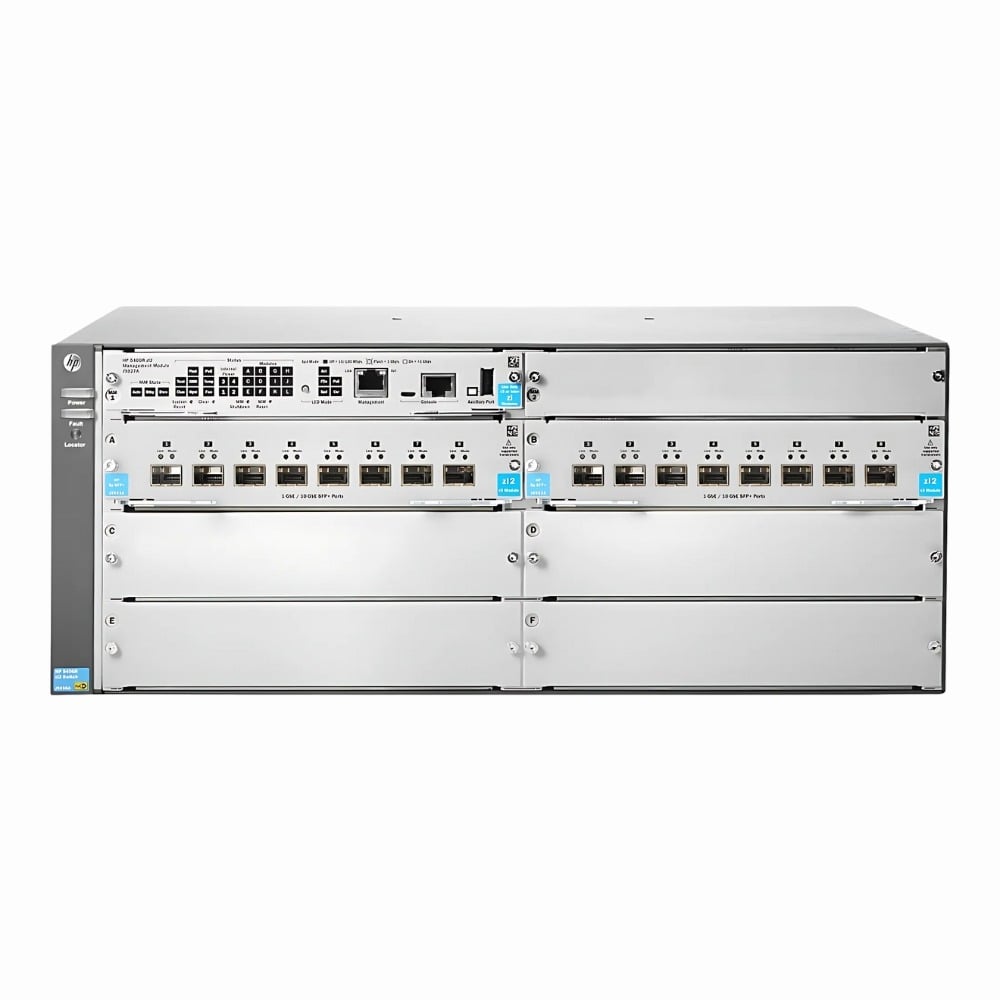

Name: JL095A HP 5400 Series 5406R 16x SFP+ 10GBase-X 4 Module Slots Layer 3 Switch
Brand: HP
SKU: JL095A#ABA
Price: 3456.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP 5400 Series 5406R chassis is a modular Layer 3 network switch designed to deliver high-speed 10GBase-X connections through its 16 SFP+ slots and accommodate expansion via 4 additional module slots. It's typically used in professional network setups where reliable, managed Ethernet switching is a must.

General Information
Brand	HP
Part Number	JL095A#ABA
Condition	Refurbished

Technical Information
Switch Ports	16
Number of Ports	16-Ports
Port Type	10G SFP+
Port Speed	10 Gbps
UpLink Ports	16
POE Support	No
VLAN Support	Yes
Max VLANs Supported	4094
NIM Slot	4
Layer Support	Layer 3
Connector Type	SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32768

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (Console),SSH,Telnet,SNMP
Security Features	802.1X,ACLs,SSH,RADIUS,TACACS+,Port Security,Storm Control
Management Type	In-band, Out-of-band
Remote Management Protocol	SNMP,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static,RIP,OSPF,BGP,VRRP,IGMP,PIM-SM,Policy-Based Routing (PBR)

Physical Characteristics
Weight	5.00

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3ad (LACP)

Product Description
The HP 5400 Series 5406R switch chassis is built for high-performance networking, offering robust Layer 3 management and scalable port capacity. It's often found in enterprise data centers and campus networks where reliable, fast, and flexible connections are essential. Network engineers and IT teams benefit from its modular design and advanced traffic management features. Key Features Supports 16 SFP+ ports enabling 10GBase-X connections for fast data transfers Includes 4 open module slots to integrate additional network capabilities Provides Layer 3 routing and switching for efficient traffic handling Designed with rack-mount form factor to fit standard server racks Offers managed functionality for precise network control and monitoring This switch chassis is commonly deployed in environments requiring scalable bandwidth and flexible network growth, such as corporate campuses or data centers. It helps maintain smooth communication across multiple network segments, reducing bottlenecks and improving overall performance.

Use Cases
The HP 5400 Series 5406R switch is engineered for medium to large enterprise environments requiring robust Layer 3 routing combined with high-speed 10G connectivity. Its modular design suits data centers and campus networks where flexible port configurations and scalability are essential to support evolving infrastructure demands. How It's Used: Serving as a core distribution switch in enterprise campus networks to manage inter-VLAN routing and high-throughput traffic aggregation. Deploying within data center top-of-rack layers to connect virtualization hosts and storage arrays using 10G SFP+ interfaces. Facilitating high-speed uplinks between multiple wiring closets in large office buildings, providing scalable network segmentation. Supporting managed edge computing environments that require modular expansion for diverse network modules and high port density. Integrating into service provider infrastructure to deliver multi-tenant Layer 3 switching with flexible port configurations. By combining modular expansion with high-performance Layer 3 capabilities, this switch chassis enables streamlined network growth and efficient traffic management. It effectively supports complex network topologies that demand both speed and flexibility without compromising operational control.
