JL075A

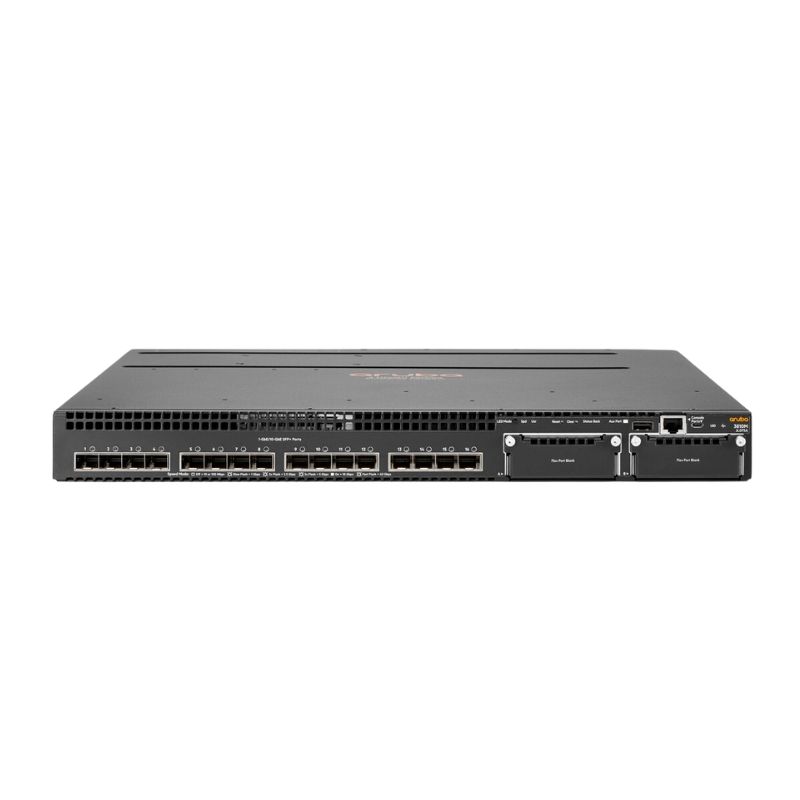

The HPE Aruba 3810M JL075A Network Switch is designed for high-performance networking in enterprise environments. Featuring 16 ports of 10GBASE-X SFP+, this managed switch delivers exceptional bandwidth and low latency for data-intensive applications. The switch supports Layer 3 routing, providing advanced capabilities for both IPv4 and IPv6 with up to 10,000 IPv4 routing entries and 5,000 IPv6 routing entries.

Built to handle large amounts of data, the 3810M supports jumbo frames of up to 9216 bytes, enhancing performance for large data transfers. Security is a top priority, with features including IEEE 802.1X, MAC authentication, web-based authentication, and comprehensive Access Control Lists (ACLs) for effective network protection. Additionally, it supports RADIUS and TACACS for centralized authentication management.

Equipped with 2GB of DRAM and 2GB of flash memory, the switch ensures smooth operation and ample storage for configuration and firmware. It complies with a wide range of standards, including IEEE 802.3, 802.1Q for VLAN tagging, and various others for comprehensive network functionality.

With 64,000 MAC address entries and support for up to 4,094 VLAN IDs, the HPE Aruba 3810M offers flexible network segmentation and management. The switch includes 2 NIM slots for additional module options, allowing for enhanced connectivity and scalability. Designed for rack-mountable installation, it’s an excellent choice for organizations looking to optimize their network infrastructure.

Key Features:

• Port Configuration: 16 x 10GBASE-X SFP+ ports for high-speed connectivity.
• Layer 3 Routing: Supports IPv4 and IPv6 with 10,000 and 5,000 routing entries, respectively.
• Jumbo Frame Support: Handles frames up to 9216 bytes for efficient data transfers.
• Robust Security: Features IEEE 802.1X, MAC authentication, web-based authentication, ACLs, and RADIUS/TACACS support.
• Memory: 2GB DRAM and 2GB flash memory for optimal performance and storage.
• Compliance Standards: Adheres to various IEEE standards for reliable operation.
• Routing Protocols: Supports Static, RIP, OSPF, BGP, PIM-SM, and PIM-DM for advanced routing capabilities.
• MAC Address Support: Up to 64,000 MAC address entries for flexible network management.
• VLAN Support: Supports up to 4,094 VLAN IDs for network segmentation.
• NIM Slots: 2 additional slots for module expansion and flexibility.
• Connector Type: SFP+ for 10GBASE-X ports, with additional module slots for various interfaces.

The HPE Aruba 3810M JL075A Network Switch is an ideal solution for enterprises seeking a reliable, high-performance switch that supports advanced networking features and robust security.
