| Product Overview |
|---|

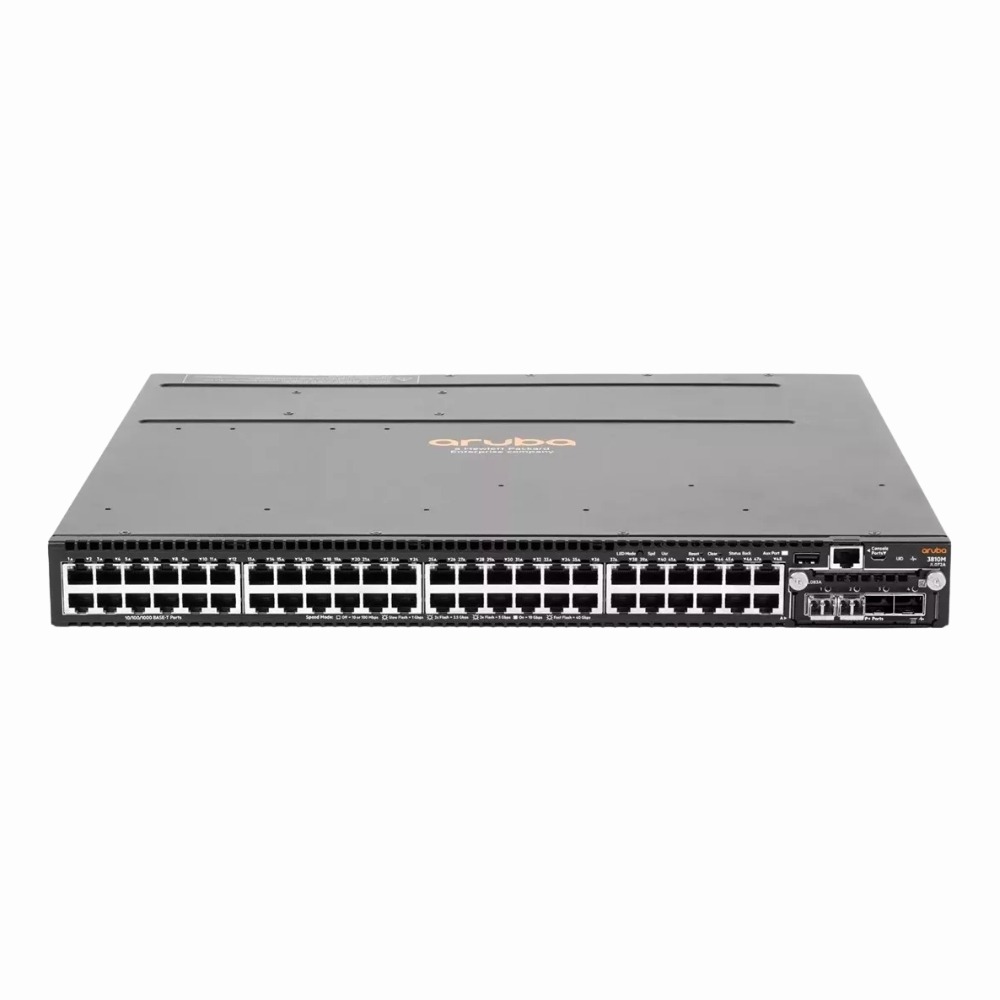

The HP Aruba 3810M Series 48-Port switch offers a solid mix of high-speed Ethernet ports and Layer 3 capabilities, making it a reliable choice for enterprise networks needing both performance and routing features. It's commonly integrated into networks that require stable, scalable connections with flexible expansion options. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL072-61101 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x 10Gb SFP+ |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 1 GB |
| Flash Memory | 512 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 (supports up to 4094 VLANs) |
| NIM Slot | 1 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH/Telnet), Web GUI (HTTP/HTTPS), SNMP v1/v2c/v3, RMON, sFlow |
| Remote Management Protocol | SNMP, SSH, Telnet, HTTP, HTTPS, RMON, sFlow |
| Power & Cooling | |
|---|---|
| Fans | 2 (hot-swappable, variable speed) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 18.90 inches |
| Weight | 5.00 |
| Operating Temperature | 0 to 45 °C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad (LACP) |
| Product Description |
|---|
The HP Aruba 3810M Series 48-Port switch is built for fast and reliable network connectivity in enterprise environments. It provides 48 RJ-45 ports capable of delivering Gigabit Ethernet speeds, making it suitable for connecting a range of devices from workstations to servers. Often found in data centers, campus networks, and enterprise wiring closets, this Layer 3 switch supports routing and switching functions that help optimize traffic flow and improve network efficiency. Network administrators and IT teams use this switch to manage complex network setups where both speed and control are essential. Key Features
This switch is typically deployed in medium to large enterprise networks, where it supports both core and distribution roles. Its combination of speed, scalability, and routing helps networks run smoothly under heavy workloads. It plays a crucial role in maintaining stable and efficient connectivity across departments and server farms. |
