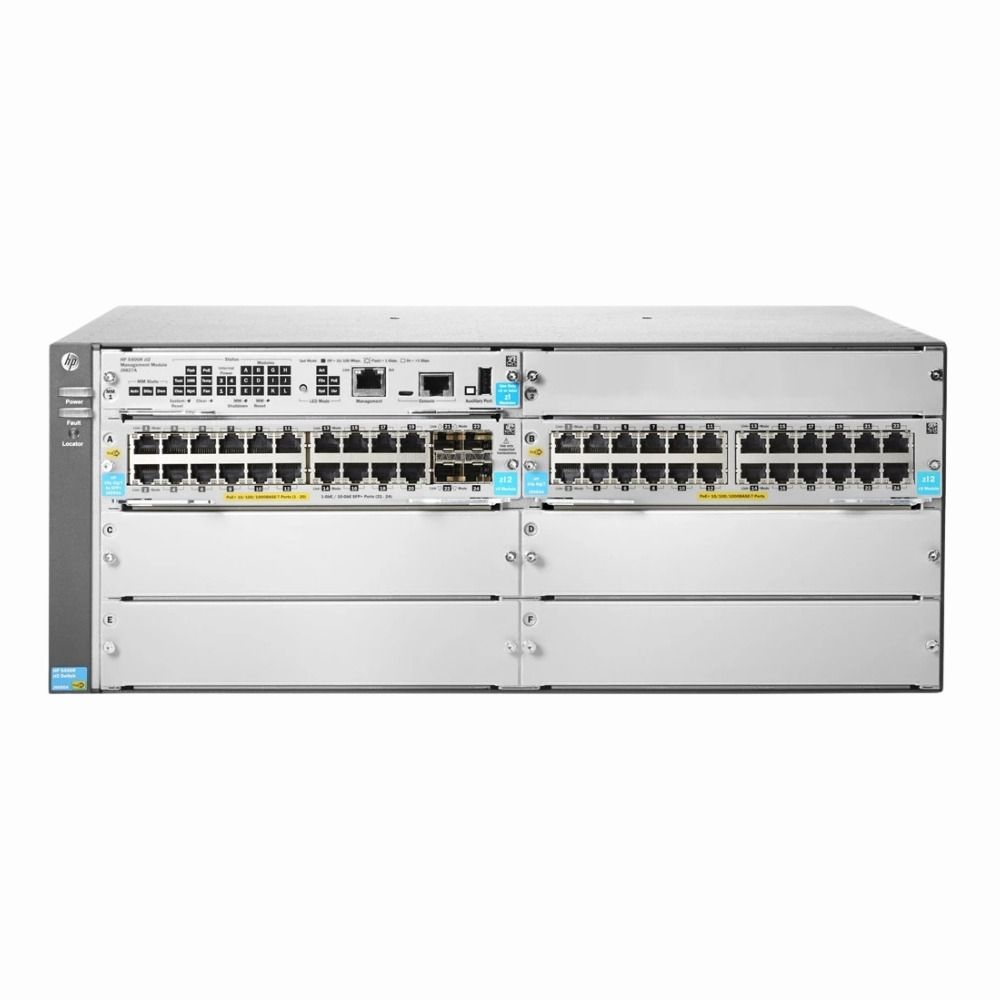

Name: JL003A HP 5400 zl2 44GT PoE+ 44xRJ-45 4xSFP+ L3 Managed Switch
Brand: HP
SKU: JL003A
Price: 1600.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP 5400 zl2 Series 5406R combines PoE+ power delivery with Layer 3 managed switching, fitting into enterprise networks that need both data speed and device power. Its modular design makes it a practical choice for IT teams looking to scale and customize their network setup without replacing the whole switch.

General Information
Brand	HP
Part Number	JL003A
Condition	Refurbished

Technical Information
Switch Ports	44
Number of Ports	44-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	10/100/1000Base-T,10 Gbps
UpLink Ports	4
POE Support	PoE+
Switching Capacity	336 Gbps
Switch Forwarding Rate	250 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
NIM Slot	4
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Console (RJ-45), USB, Web GUI (HTTP/HTTPS), CLI, SSH, Telnet, SNMP
Security Features	802.1X,ACLs,RADIUS,TACACS+,BPDU Guard,Port Security,Storm Control,MAC Authentication
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS
Routing Protocol	Static,RIP,OSPF,BGP,VRRP,HSRP,PIM-SM,IGMP

Power & Cooling
Fans	Redundant hot-swappable fans

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 45°C (32°F to 113°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.3ad

Product Description
The HP 5400 zl2 Series 5406R is a versatile network switch designed to handle high-performance enterprise environments. It provides a mix of PoE+ enabled RJ-45 ports and high-speed SFP+ fiber connections, making it suitable for environments requiring both power and data over a single cable. Often found in data centers and large office networks, this switch supports advanced Layer 3 features, allowing IT professionals to manage complex traffic routing and network segmentation efficiently. Network administrators and IT teams benefit from its modular design, which offers flexibility to expand capabilities as network demands grow. Key Features Offers 44 PoE+ 10/100/1000Base-T ports for powering IP phones, cameras, and access points Equipped with 4 SFP+ slots supporting 10Gbps uplinks for fast data transfer Layer 3 functionality enables dynamic routing and improved network efficiency 4 expansion module slots accommodate additional modules for enhanced network options Rack-mountable design fits standard server racks for organized deployments This switch is commonly deployed in enterprise LANs, campus networks, and data centers where reliable power and fast network connectivity are essential. Its ability to handle both data and power in a single device reduces cable clutter and simplifies network infrastructure. The modular slots offer a future-proof path, letting organizations adapt as their networking needs evolve over time.

Use Cases
The JL003A HP 5400 zl2 44GT PoE+ switch is designed for enterprise IT environments requiring high-density PoE+ connectivity combined with advanced Layer 3 routing. It is particularly suited for organizations aiming to integrate powered devices such as IP phones and wireless access points within scalable, modular network infrastructures. How It's Used: Deploying high-performance, centralized switches in corporate campus networks to support both data and power needs for VoIP and wireless devices. Implementing aggregation switches in data center edge layers where 10Gbps fiber uplinks via SFP+ ports are critical. Supporting mid-sized enterprise network expansions by leveraging modular slots to add functionality without replacing existing hardware. Facilitating network segmentation and routing in environments with complex traffic patterns using Layer 3 capabilities. Enabling robust connectivity and power delivery in smart building infrastructures where multiple IoT devices require managed PoE+ support. This switch model enhances network operational efficiency by integrating power and data delivery with flexible routing options. Its modular architecture provides room for growth, allowing IT departments to adapt to evolving network demands without disruptive hardware changes.
