| Product Overview |
|---|

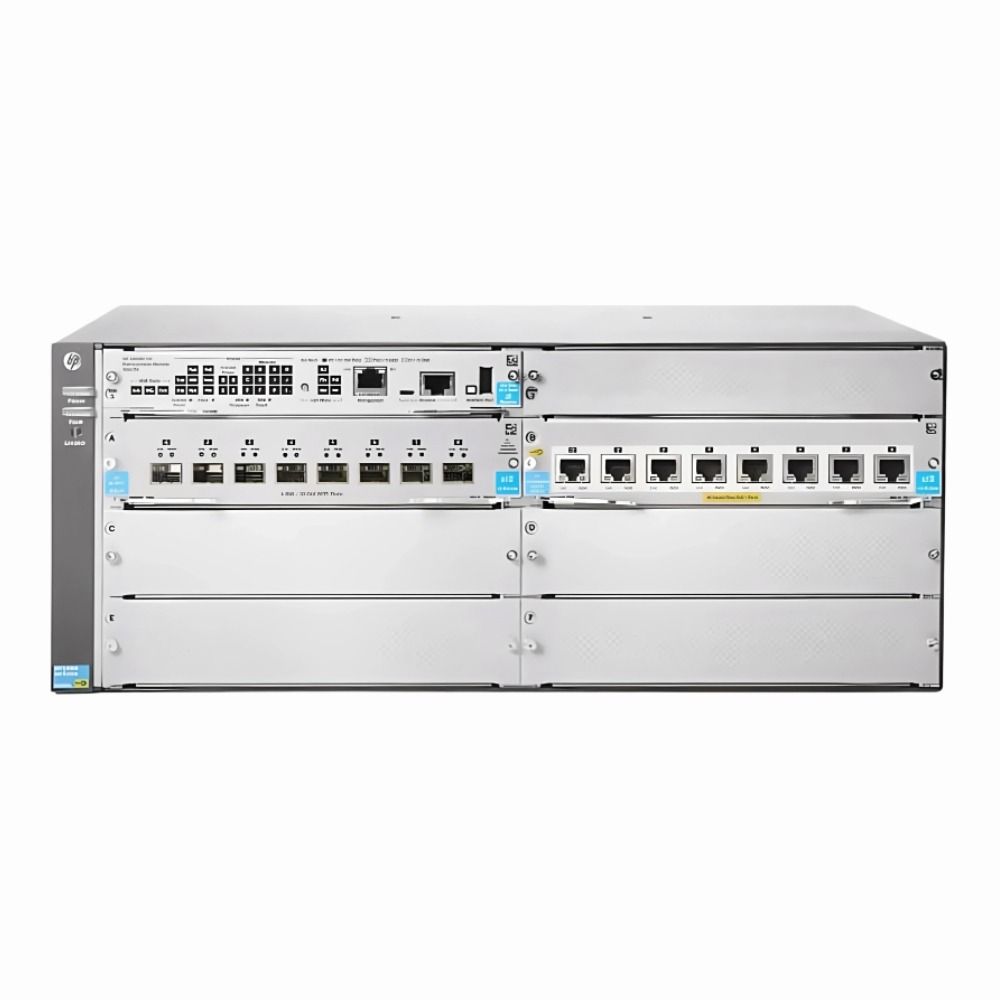

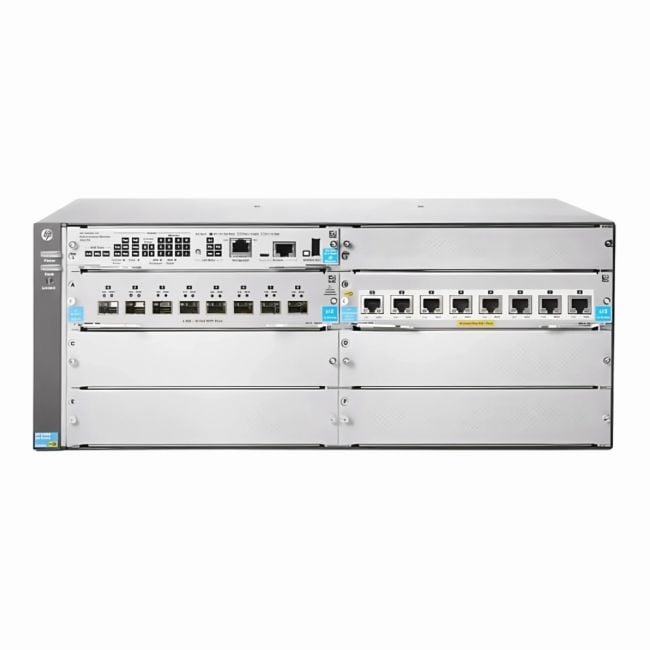

The HP 5400R Series 5406R switch chassis provides a solid foundation for high-performance network setups. It combines PoE+ and fiber ports with Layer 3 management to meet the needs of growing enterprise networks. Ideal for rack installations, it supports expansion modules to accommodate future upgrades without replacing the entire chassis. |
| General Information | |
|---|---|
| Brand | HP |
| Part Number | JL002A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 8 |
| Number of Ports | 16-Ports |
| Port Type | 10GBase-T, SFP+ |
| Port Speed | 10 Gbps |
| UpLink Ports | 8 |
| POE Support | PoE+ |
| Switching Capacity | 320 Gbps |
| Switch Forwarding Rate | 625 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| NIM Slot | 4 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,CLI (Console),SSH,Telnet,SNMP,RMON |
| Security Features | Access Control Lists (ACLs),802.1X,RADIUS,TACACS+,DHCP Snooping,IP Source Guard,Port Security,Storm Control,BPDU Protection |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS,RMON |
| Routing Protocol | Static,RIP,OSPF,BGP,VRRP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable redundant fans |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at |
| Product Description |
|---|
This HP 5400R Series switch chassis is built for advanced network management in enterprise environments. It combines high-speed 10GBase-T PoE+ ports with fixed SFP+ slots, making it well-suited for data centers or core network deployments that require flexible connectivity options. Often found in medium to large-scale networks, this switch chassis supports Layer 3 routing capabilities, allowing network administrators to efficiently manage traffic and segment networks. IT professionals benefit from its scalability and the ability to add expansion modules as network demands grow. Key Features
Typically deployed in enterprise core or aggregation layers, this switch chassis delivers reliable performance and adaptability. It plays a key role in managing power over Ethernet devices while maintaining high-speed connectivity across the network. |
