| Product Overview |
|---|

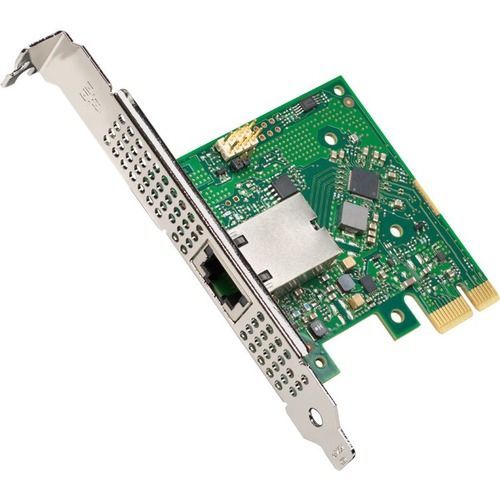

The Dell JJF4X Intel I225-T1 Ethernet Network Adapter provides reliable 2.5 Gbps network connectivity via PCIe. It fits into standard desktop or server PCIe slots and uses regular copper Ethernet cables to deliver faster data rates. This adapter is a solid choice for users wanting to upgrade their wired network speeds without re-cabling or replacing existing switches. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | JJF4X |
| Technical Information | |
|---|---|
| Chipset/Controller | Intel I225-T1 |
| Virtualization Support | NetQueue, vNIC |
| Data Rate (Speed) | 2.5GbE |
| Data Center Bridging | No |
| Interface (Bus) | PCIe 2.0 x4 |
| Number of Ports | 1-Port |
| OS Compatibility | Windows Server 2022, RHEL, VMware ESXi |
| Network Management | SNMP |
| Offload Support | PXE Boot, Wake-on-LAN (WoL), TCP Stateless Offload, Jumbo Frames |
| Bracket Height | Both Brackets Included |
| Connectivity & Physical | |
|---|---|
| Form Factor | Standard PCIe Card |
| Port Type | RJ-45 (Copper) |
| Cabling Type | Cat6a |
| Max Power Consumption | Bus-powered (PCIe), <5W |
| Weight | 5.00 |
| Condition | Refurbished |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Product Description |
|---|
This network adapter enables faster wired connectivity by providing 2.5 gigabit Ethernet speeds through a PCIe slot. It's commonly found in business desktops, workstations, and entry-level servers where increased network bandwidth is needed without upgrading existing cabling. Built for IT professionals and users looking to enhance their network performance, it can handle high-speed data transfers for applications like file sharing, video streaming, and network backups. Key Features
Typically deployed in office environments, small data centers, and home labs, this adapter helps boost network efficiency without complex infrastructure changes. It is a practical solution for those needing more than 1 Gbps speeds on existing networks. |
