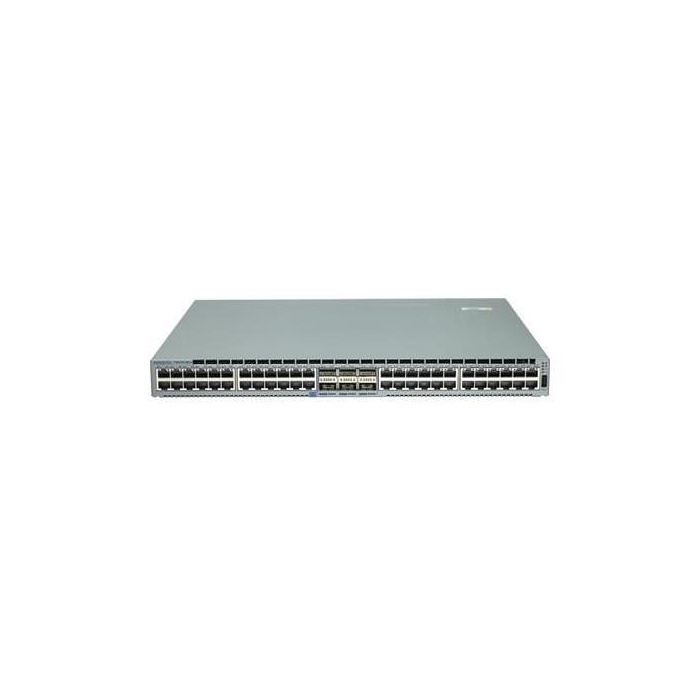

JH567A HP Arista 7280R Series 48 SFP+ 10GBase-X 6 QSFP28 Layer 3 Switch
SKU:
JH567A
Weight: 3.00 lbs
Condition: Refurbished
- 48 SFP+ ports offering 10GBase-X connectivity for high-speed data transfer
- 6 QSFP28 ports supporting up to 100Gbps for advanced uplink and stacking capabilities
- Layer 3 managed switch with routing and switching functions for complex network environments
- Rack-mountable design with front-to-back airflow suitable for data center deployment
| Product Overview |
|---|
The JH567A HP Arista 7280R Series switch offers high-density 10G and 100G connectivity with a balanced mix of SFP+ and QSFP28 ports. It fits into rack-based network setups requiring Layer 3 management and front-to-back cooling to maintain optimal operation in data center environments. |
| General Information | |
|---|---|
| Brand | Arista |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10G SFP+, 100G QSFP28, USB Console, Serial Console (RJ-45) |
| Port Speed | 10G SFP+,100G QSFP28 |
| UpLink Ports | 6 |
| POE Support | No |
| Switching Capacity | 2160 Gbps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP28,Serial Console (RJ-45),USB Console |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, IS-IS, VRRP, PIM-SM, IGMP, MLD, Policy-Based Routing (PBR) |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH),Console (RJ-45),USB Console,SNMP,REST API,Web UI (optional),CloudVision |
| Security Features | ACLs,802.1X,RADIUS,TACACS+,DHCP Snooping,IP Source Guard,Dynamic ARP Inspection,ACLs |
| Management Type | In-Band and Out-of-Band |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMPv2c,SNMPv3,REST |
| Routing Protocol | BGP,OSPF,IS-IS,RIP,VRRP |
| Power & Cooling | |
|---|---|
| Fans | Front-to-Back,Hot-Swappable,Redundant |
| Power | AC 100-240V |
| Power Supply | AC (field-replaceable, optional dual hot-swappable PSUs) |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3,IEEE 802.3ae,IEEE 802.3by,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w |
| Product Description |
|---|
The JH567A HP Arista 7280R Series switch is built for robust networking with an emphasis on high-performance data handling. It is commonly found in data centers and enterprise core networks where reliable 10G and 100G connectivity is essential. Network engineers and IT teams often use this switch to manage intricate Layer 3 routing combined with flexible port configurations. Key Features
This switch delivers steady performance and reliability in demanding network environments. Its combination of high-density 10G and 100G ports along with Layer 3 features ensures scalable network infrastructure without compromising on efficiency. The cooling design and rack form factor make it a solid choice for streamlined data center integration. |
| Use Cases |
|---|
The JH567A switch is typically deployed in environments that demand high-throughput and resilient Layer 3 routing capabilities, such as enterprise data centers and large-scale service provider networks. IT professionals benefit from its blend of port density and routing support, which helps maintain efficient traffic flow. How It's Used:
This switch supports network scalability and performance, helping organizations manage increasing data demands while maintaining operational stability. Its features align with the needs of dense network deployments and evolving infrastructure. |
