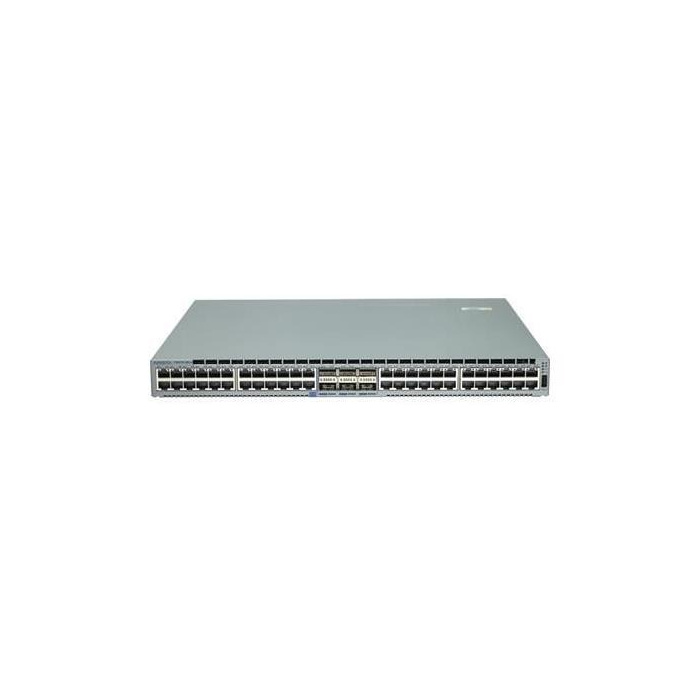

JH565A HP Arista 7280R 48x SFP+ 10GBase-X 6x QSFP28 Layer 3 Managed Switch
SKU:
JH565A
Weight: 3.00 lbs
Condition: Refurbished
- 48 SFP+ ports supporting 10GBase-X for high-speed fiber connectivity
- 6 QSFP28 ports enabling up to 100Gbps uplink bandwidth
- Layer 3 managed switch with robust routing capabilities
- Rack-mountable design with front-to-back airflow for data center efficiency
| Product Overview |
|---|
The JH565A HP Arista 7280R Series switch provides a high-density platform for 10G and 100G fiber connectivity, combining Layer 3 routing capabilities with a design suited for rack deployments. It fits well into data center configurations where reliable, high-throughput switching is required. |
| General Information | |
|---|---|
| Brand | Arista |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10G SFP+, 100G QSFP28, USB Console, Serial Console (RJ-45) |
| Port Speed | 10 Gbps,100 Gbps |
| UpLink Ports | 6 |
| POE Support | No |
| Switching Capacity | 2160 Gbps |
| Switch Forwarding Rate | 4218.75 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Optional |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP28,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Latency | < 1 µs (varies by packet size/config) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 128k |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, OSPFv3, BGP, IS-IS, VRRP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH),SNMP,REST API (eAPI),Web UI,USB Console,Serial Console (RJ-45) |
| Security Features | SSH,Access Control Lists (ACLs),802.1X,RADIUS,TACACS+,Port Security,Storm Control,BPDU Guard |
| Management Type | In-band and Out-of-band |
| Remote Management Protocol | SSH,Telnet,SNMPv2/v3,REST eAPI (JSON-RPC),NETCONF |
| Routing Protocol | BGP,OSPF,IS-IS,Static,VRRP |
| Power & Cooling | |
|---|---|
| Fans | Front-to-Back Redundant Hot-Swappable Fans |
| Power | 100-240 VAC, 50-60 Hz |
| Power Supply | Dual Hot-Swappable AC Power Supplies |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ae,IEEE 802.3ad,IEEE 802.3x |
| Product Description |
|---|
The JH565A HP Arista 7280R Series switch is designed to deliver high-performance networking with extensive fiber connectivity options. It is commonly found in enterprise and data center environments where scalable, low-latency switching and routing are essential. Built for IT professionals managing complex networks, this switch offers advanced Layer 3 features to support demanding network architectures and virtualization setups. Its front-to-back cooling suits rack deployments requiring optimized airflow. Key Features
This switch serves as a reliable backbone component, balancing throughput and routing functions without sacrificing stability. Its performance and design make it a practical choice for managing network traffic in demanding infrastructures. |
| Use Cases |
|---|
The JH565A switch is typically deployed in environments requiring dense 10G and 100G fiber connections, such as enterprise networks and cloud data centers. Network engineers and administrators benefit from its routing capabilities and efficient airflow design. How It's Used:
This switch supports scalable network growth and operational stability, making it a foundational element in performance-sensitive infrastructures. Its design helps maintain efficiency under continuous, heavy workloads. |
