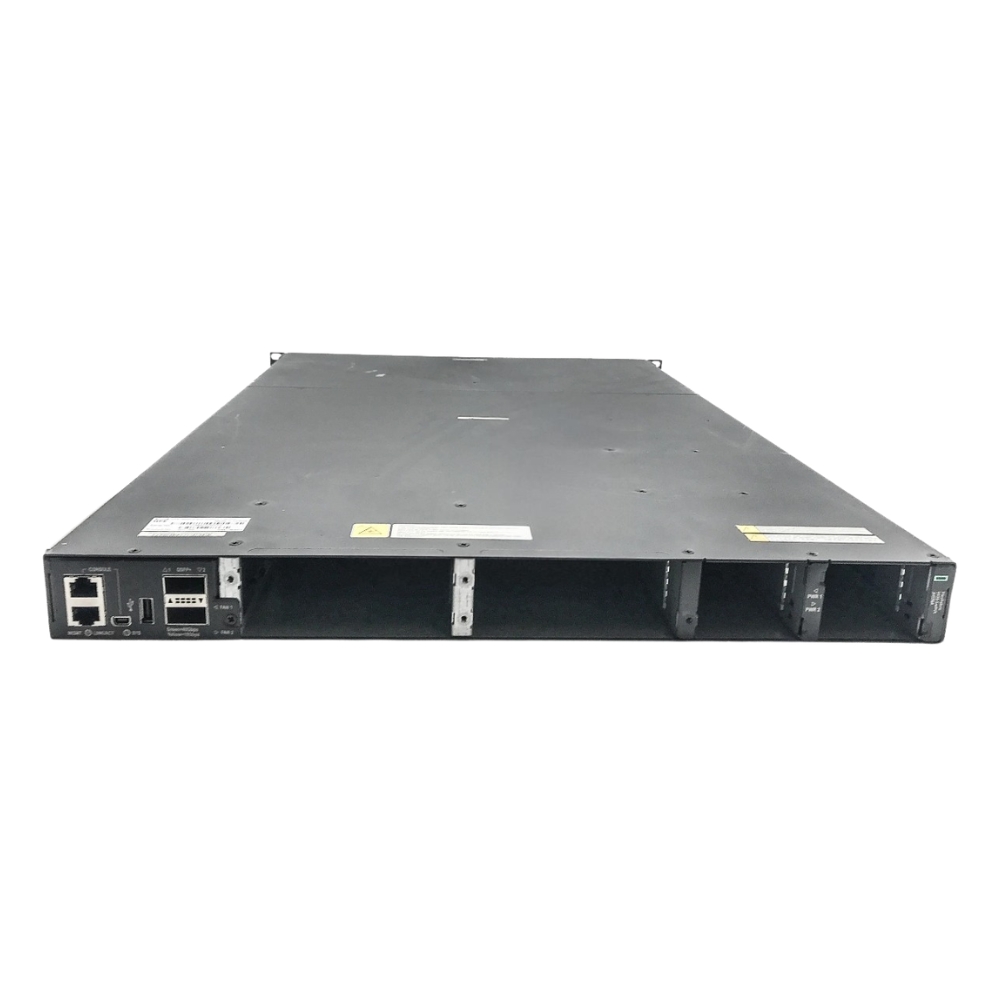

Name: JH397-61001 HPE FlexFabric 5930 2-Port 40GbE QSFP+ 1U Layer 3 Switch
Brand: HPE
SKU: JH397-61001
Price: 4557.44 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JH397-61001 - HPE FlexFabric 5930 is a Layer 3 switch focused on delivering high-capacity 40GbE connectivity within a compact 1U form factor. It fits well in environments requiring efficient network routing and fast uplink options, providing the necessary features to support advanced networking needs without excessive complexity.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, QSFP / QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	1Gbps,40Gbps
UpLink Ports	2 x 40GbE QSFP+
POE Support	No
Switching Capacity	256 Gbps
Switch Forwarding Rate	500 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), Command-Line Interface (SSH, Console), SNMP, Serial Console (RJ-45), USB
Security Features	Access Control Lists (ACLs), 802.1X, MAC authentication, SSH, SSL, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
Management Type	Managed
Remote Management Protocol	SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS, RMON, CLI

Power & Cooling
Fans	Front-to-back hot-swappable fans
Power Supply	Internal AC power supply

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x

Product Description
The JH397-61001 is a Layer 3 Ethernet switch featuring two 40GbE QSFP+ uplink ports in a 1U rack-mountable chassis. It is commonly found in data centers and enterprise network cores where high throughput and low latency are critical. Network administrators and IT professionals use this model to enhance bandwidth and support demanding network applications. Key Features Provides high-density 40GbE connectivity in a compact 1U design Supports comprehensive Layer 3 routing protocols for versatile network configurations Equipped with flexibility for stacking and virtualization capabilities Maintains energy-efficient operation to reduce power consumption Offers robust security features to safeguard network traffic This switch delivers reliable performance and scalability essential for modern network infrastructures. Its design balances speed and flexibility, making it practical for growing network demands. The JH397-61001 supports continuous operation with stable throughput and consistent routing efficiency.

Use Cases
This Layer 3 switch is typically deployed in data centers and enterprise network cores where high bandwidth and low latency are essential. It supports environments that require scalable and efficient network infrastructure to manage growing traffic demands and complex routing requirements. How It's Used: Aggregating traffic in medium to large data center top-of-rack deployments Providing high-speed uplinks for enterprise campus network cores Supporting virtualization platforms requiring high-throughput connections Enabling edge computing setups with dense 40GbE port needs Facilitating storage clusters with reliable Layer 3 routing capabilities By integrating this switch, network teams can maintain operational efficiency and adapt to evolving bandwidth needs. It ensures consistent performance and scalability, which are critical for managing complex enterprise and data center networks.
