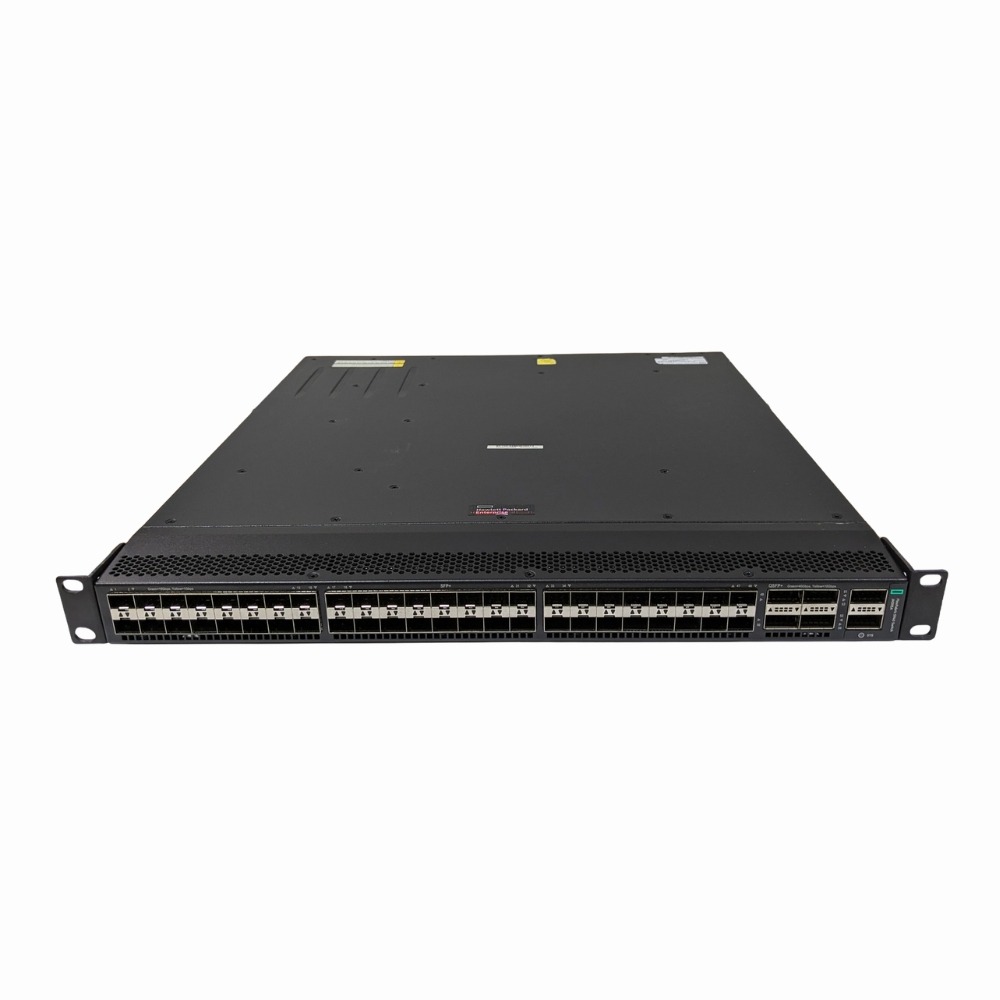

Name: JH395A HP FlexFabric 5940 Series 5940 48SFP+ 6QSFP+ 48 x SFP+ Ports 10GBase-X + 6 x QSFP+ Ports Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Brand: HPE
SKU: JH395A
Price: 3908.09 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The HP FlexFabric 5940 Series switch combines high-density 10GbE and 40GbE ports with Layer 3 management capabilities, making it suitable for data center and enterprise network cores. Its rack-mountable 1U design allows it to fit neatly into existing infrastructure while providing flexible and robust network performance for demanding environments.

General Information
Brand	HPE
Part Number	JH395A
Condition	Refurbished

Technical Information
Switch Ports	48 SFP+,6 QSFP+
Number of Ports	54-Ports
Port Type	SFP+, QSFP / QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,40Gbps
UpLink Ports	6 x QSFP+
POE Support	No
Switching Capacity	1440 Gbps
Switch Forwarding Rate	1.44 Tbps (non-blocking switching capacity)
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP+,QSFP+,USB Console,Serial Console (RJ-45)

Performance
Latency	<= 1 µs (typical port-to-port, low-latency switching)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	128K

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (SSH, Telnet),Web GUI,SNMP,Serial Console,USB
Security Features	ACLs,802.1X,SSH,TACACS+/RADIUS,DHCP Snooping,IP Source Guard,Storm Control
Security	Yes
Remote Management Protocol	SSH,Telnet,HTTP,HTTPS,SNMPv1/v2/v3
Routing Protocol	Static routing, RIP, OSPF, BGP, VRF, VRRP

Power & Cooling
Fans	Hot-swappable cooling fans
Power	AC 100-240V, 50/60Hz

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3ae (10GbE), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s

Product Description
The HP FlexFabric 5940 Series switch is built for data centers and enterprise networks requiring fast and reliable connectivity. It delivers 10GbE and 40GbE port options to handle high volumes of traffic and complex routing demands. Often found in core or aggregation layers, this switch caters to network engineers and IT teams who need a powerful Layer 3 managed solution for flexible network design. Key Features Offers 48 high-density SFP+ ports for 10GbE connections Includes 6 QSFP+ ports for increased bandwidth and uplink speeds Supports dynamic routing protocols for efficient Layer 3 management Compact 1U form factor easily fits in standard racks Designed to simplify network scaling and maintenance This switch is typically deployed in environments where space efficiency and powerful routing are critical, such as data centers and large enterprise sites. It helps maintain smooth network operations by supporting a variety of routing and switching functions without compromising on speed or reliability.
