Product Overview |
|---|

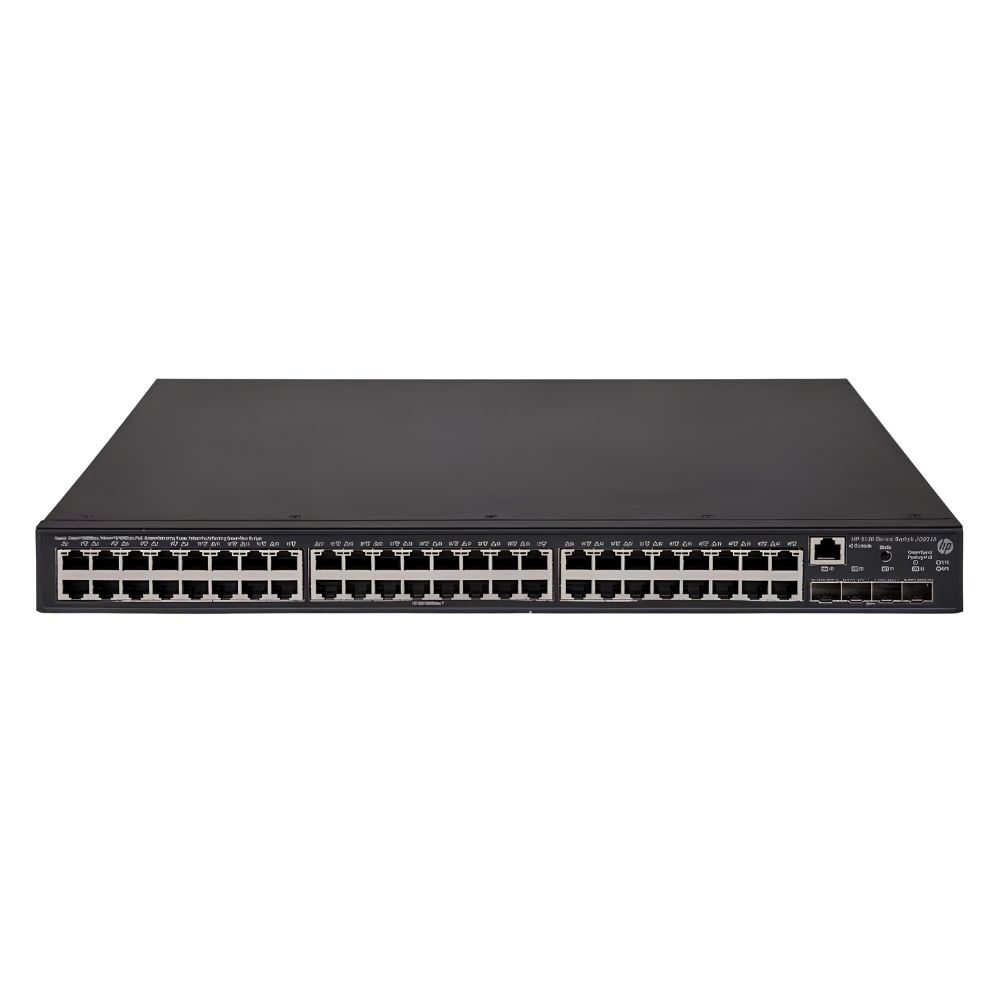

The HPE 5130 48G PoE+ 4SFP+ 48-Port + 4-Port SFP+ L3 Switch integrates high-density Gigabit Ethernet ports with PoE+ functionality and four 10 Gb SFP+ uplinks. It fits into enterprise and campus environments requiring both access and aggregation layers, providing Layer 3 routing features alongside robust power delivery for connected devices. |
General Information |
|
|---|---|
| Brand | HPE |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000 Mbps,10 Gbps |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+,USB Console,Serial Console (RJ-45) |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,CLI,SNMP,SSH,Telnet,RMON |
| Security Features | Access Control Lists (ACLs),802.1X,IP Source Guard,DHCP Snooping,Dynamic ARP Inspection,Port Security,Storm Control,SSH,SSL |
| Management Type | Managed |
| Remote Management Protocol | SNMPv1/v2/v3,SSH,Telnet,HTTP/HTTPS |
| Routing Protocol | Static,RIP,OSPF,OSPFv3,VRRP |
Physical Characteristics |
|
|---|---|
| Weight | 3.00 |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w |
Product Description |
|---|
The HPE 5130 48G PoE+ 4SFP+ L3 Switch delivers comprehensive network connectivity with its 48 Gigabit Ethernet ports equipped for Power over Ethernet Plus (PoE+), enabling simultaneous data and power delivery to compatible devices. Often found in enterprise and campus network environments, this switch supports both high-density access and aggregation layers. Built for IT professionals managing complex network infrastructures, it accommodates growing bandwidth demands with four 10 Gb SFP+ uplinks and provides Layer 3 features that facilitate routing and traffic management. Its design suits organizations that require scalable performance and consistent network reliability. Key Features
This switch serves as a backbone component in network topology, enabling seamless connectivity and power delivery for various devices. Its combination of Layer 3 capabilities and PoE+ support ensures it can handle diverse network demands without compromise. Performance and dependability make it a fundamental choice for maintaining network integrity and expanding infrastructure. |
Use Cases |
|---|
This switch is typically deployed in mid-to-large enterprise networks where high port counts and PoE+ capabilities are essential. It supports environments that need scalable 10 Gb uplinks and reliable Layer 3 routing to manage complex network traffic effectively. How It's Used:
Its role in these settings supports smooth data flow and efficient power delivery, helping maintain operational network performance. The switch’s flexibility and reliability contribute to sustained network scalability and management simplicity. |
