Product Overview |
|---|

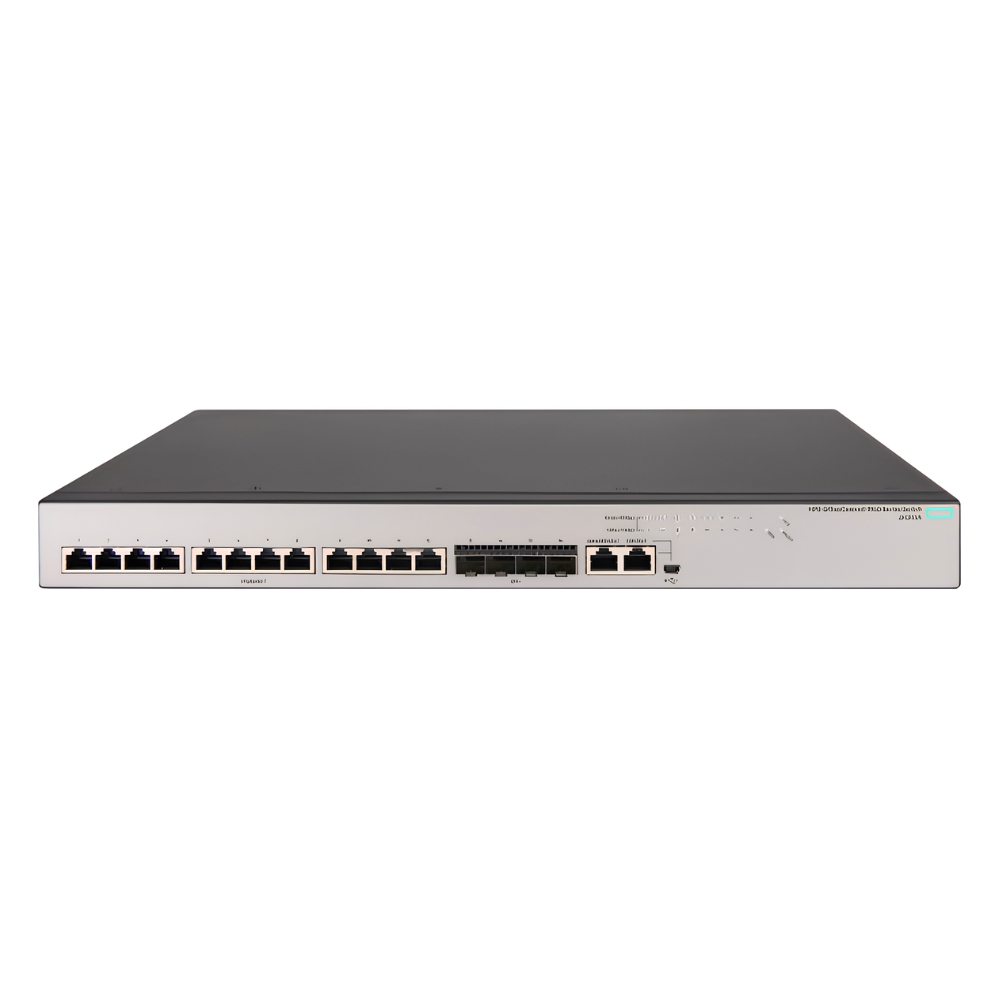

The JH295AR - HPE 1950-12XGT-4SFP+ Layer 3 Switch provides a blend of high-speed connectivity and advanced routing within a compact form factor. It fits into enterprise and data center environments where a mix of fiber and copper connections is required, offering scalable options for growing network demands. |
General Information |
|
|---|---|
| Brand | HPE |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 12 |
| Number of Ports | 16-Ports |
| Port Type | 10GBase-T, SFP+ |
| Port Speed | 10Gbps,1Gbps,100Mbps |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 320 Gbps |
| Switch Forwarding Rate | 238.1 Mpps |
| DRAM | 1 GB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Console), SSH, Telnet, SNMP, RMON |
| Security Features | ACLs,802.1X Port Authentication,MAC Flood Protection,DHCP Snooping,Dynamic ARP Inspection,IP Source Guard,Storm Control |
| Management Type | Managed |
| Security | Yes |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static,RIP,OSPF |
Power & Cooling |
|
|---|---|
| Fans | Yes (internal, variable-speed) |
| Power Supply | Internal AC power supply (100-240VAC, 50/60Hz) |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.72 x 17.32 x 13.78 in (H x W x D) |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X |
Product Description |
|---|
The HPE 1950-12XGT-4SFP+ is a Layer 3 network switch designed to deliver high-performance switching and routing for modern enterprise networks. Often found in data centers and branch office environments, it offers flexible port configurations with 12 10 Gigabit Ethernet ports and 4 additional SFP+ ports for uplinks or fiber connections. Commonly used by network administrators and IT professionals managing medium to large scale networks, this switch helps efficiently route traffic and maintain low latency across multiple connected devices. Built for environments that require dependable, high-speed connectivity, it provides essential features to support scalable and resilient network infrastructures. Key Features
This switch plays a critical role in maintaining the backbone of enterprise networks by combining robust routing capabilities with versatile port options. It ensures steady and efficient data flow while adapting to changing network demands. Its reliability and consistent performance make it a foundational component for IT teams focused on sustaining network availability and speed without unnecessary complexity. |
Use Cases |
|---|
This switch is typically deployed in enterprise and campus networks where both high throughput and routing flexibility are necessary. It benefits IT teams needing to support diverse workloads and maintain network segmentation with Layer 3 functions. How It's Used:
By integrating this switch, organizations gain flexible control over their network traffic and scalable port density to match evolving infrastructure needs. It supports operational efficiency and ensures performance stability across critical network segments. |
