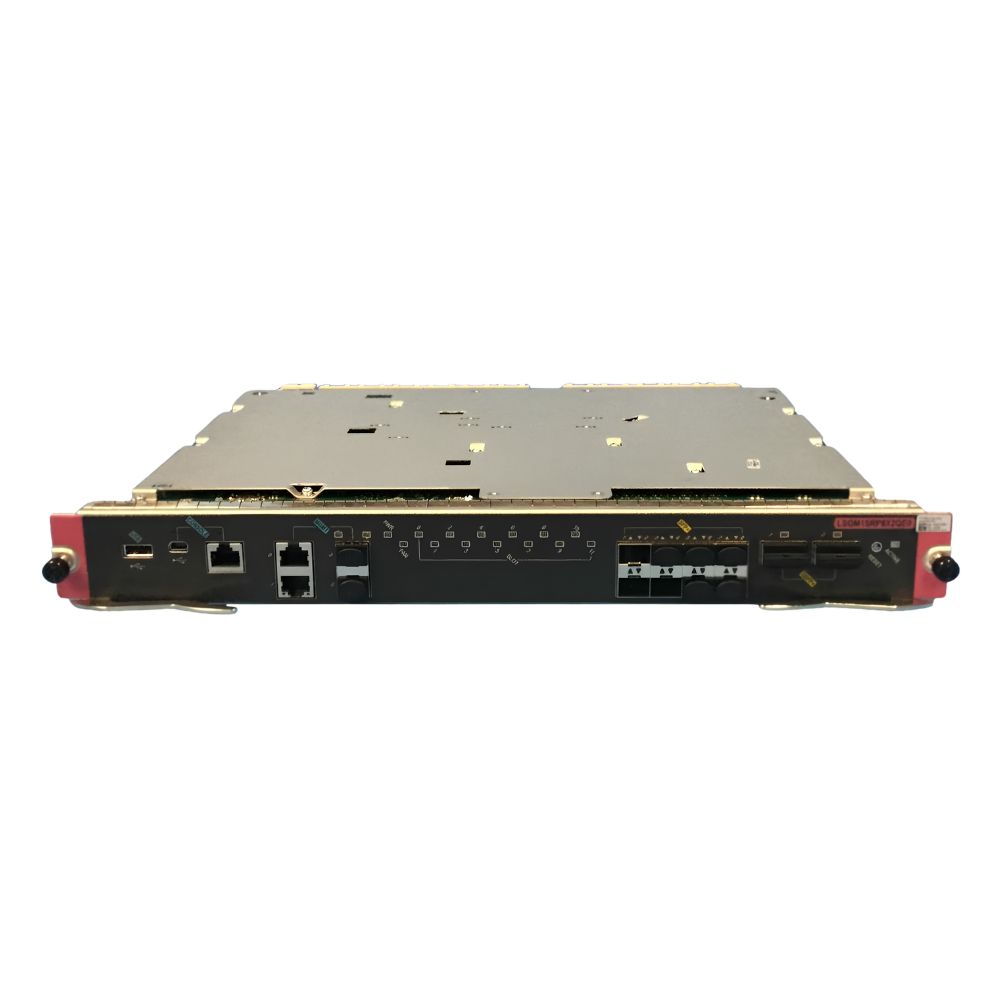

Name: JH209AR HP FlexNetwork 7500 8x10GBase-X 2xQSFP+ 2.4Tb/s Processing Unit
Brand: HP
SKU: JH209AR
Price: 19492.51 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The JH209AR - HP FlexNetwork 7500 8 x Ports 10GBase-X + 2 x Ports QSFP+ 2.4Tb/s Main Processing Unit provides essential switching power within the FlexNetwork 7500 series. It balances high-speed interface options with a substantial switching capacity, fitting into core network environments where throughput and flexibility are key. This unit helps manage traffic efficiently and maintains network performance under load without added complexity.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Modular Switch
Form Factor	Chassis-Based
Mount Type	Shelf Mount
Switch Ports	8 x 10GBase-X (SFP+), 2 x QSFP+ (40G)
Number of Ports	10-Ports
Port Type	10G SFP+, 40G QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	10G,40G
UpLink Ports	2 x QSFP+ (40G)
POE Support	No
Switching Capacity	2.4 Tb/s
Switch Forwarding Rate	4.69 billion pps (64-byte frame)
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	SFP+,QSFP+,Serial Console (RJ-45),USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols	Yes
Management Interfaces	Serial Console (RJ-45),Web GUI (HTTP/HTTPS),CLI,SSH,Telnet,SNMP
Security Features	802.1X,ACLs,RADIUS,TACACS+,SSH,Port Security
Management Type	Managed
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS

Power & Cooling
Power	Powered by chassis backplane (requires chassis power modules)

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1p,IEEE 802.3ae,IEEE 802.3ba,IEEE 802.3ad

Product Description
The JH209AR is a main processing unit designed for the HP FlexNetwork 7500 series, providing robust switching capabilities and high throughput. Often found in enterprise network cores and data centers, it manages large volumes of traffic with efficiency and reliability. Network engineers and IT teams benefit from its scalability and performance-focused design. Key Features High switching capacity of 2.4Tb/s to handle demanding network loads Multiple 10GBase-X ports combined with QSFP+ interfaces for diverse connectivity Built to integrate seamlessly with the FlexNetwork 7500 platform Delivers consistent low latency and high throughput for critical applications Enhanced protocol support for flexible network configurations This unit plays a crucial role in maintaining network stability and performance at the core layer. Its reliable throughput ensures that data flows smoothly, supporting large-scale operations without interruption. The design balances speed and functionality to meet enterprise networking needs effectively.

Use Cases
The JH209AR main processing unit is typically deployed in large-scale enterprise and data center environments where high bandwidth and scalability are critical. It supports network teams who require consistent, high-performance switching to handle diverse and heavy traffic volumes across multiple segments. How It's Used: Core switching in large enterprise network infrastructures Data center aggregation layers demanding high throughput and low latency Supporting virtualized environments requiring flexible and scalable network paths High-density 10G and 40G uplinks in campus or metro networks Backbone switching for service providers managing diverse client loads This unit enhances overall network efficiency by delivering stable, high-capacity switching. Its role is central in environments that prioritize uptime and performance, allowing network teams to scale operations confidently and maintain smooth data flow.
