| Product Overview |
|---|

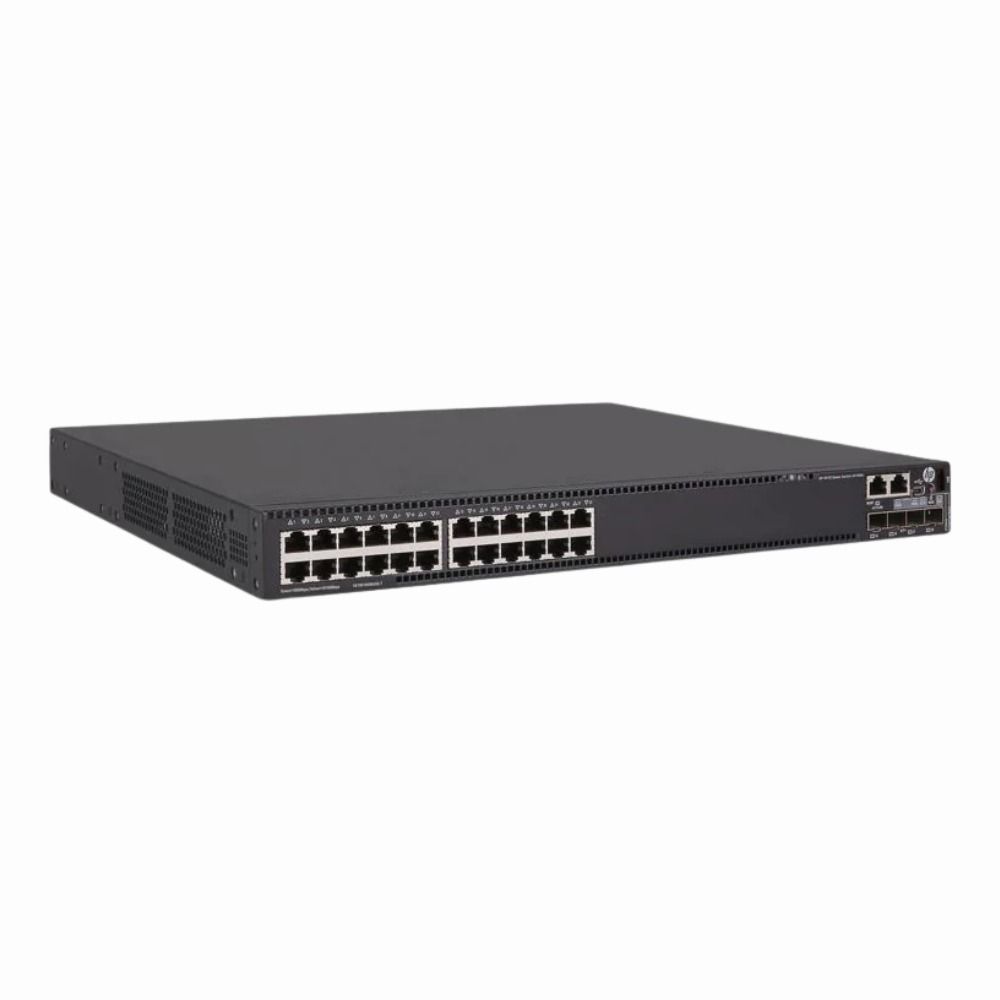

The HP FlexNetwork 5510 24G PoE+ switch manages high-speed Ethernet connections with integrated power delivery for devices on the network. It fits well into mid-sized networking environments where combining data and power simplifies device deployment and uplink options provide flexibility for expanding network capacity. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JH147A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP+ (10Gbps) |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.24 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Console/SSH), SNMP v1/v2c/v3, Telnet, RMON, sFlow |
| Security Features | 802.1X authentication, ACLs, DHCP Snooping, IP Source Guard, DoS protection, Storm control, Port security, MAC binding |
| Security | 802.1X, ACLs |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP, RMON |
| Routing Protocol | Static,RIP,OSPF,VRRP |
| Power & Cooling | |
|---|---|
| Power | PoE budget: 370 W (total) ; AC input: 100-240V, 50/60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 16.14 in (H x W x D) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP FlexNetwork 5510 24G PoE+ switch provides robust network connectivity with 24 gigabit ports that supply power directly to connected devices like IP phones and wireless access points. It’s built for business environments where reliable, high-speed data and power delivery are essential. This switch is often found in enterprise offices, campus networks, and data centers where flexible uplink options and efficient power management improve network performance. Network administrators and IT teams benefit from its solid performance and straightforward management features. Key Features
This switch is typically deployed in office wiring closets or network hubs where multiple devices require both power and data through a single connection. Its PoE+ capabilities reduce the need for separate power sources, making installation and network expansion easier and tidier. Overall, it plays a key role in delivering stable, efficient network services without adding complexity to network setup and maintenance. |
