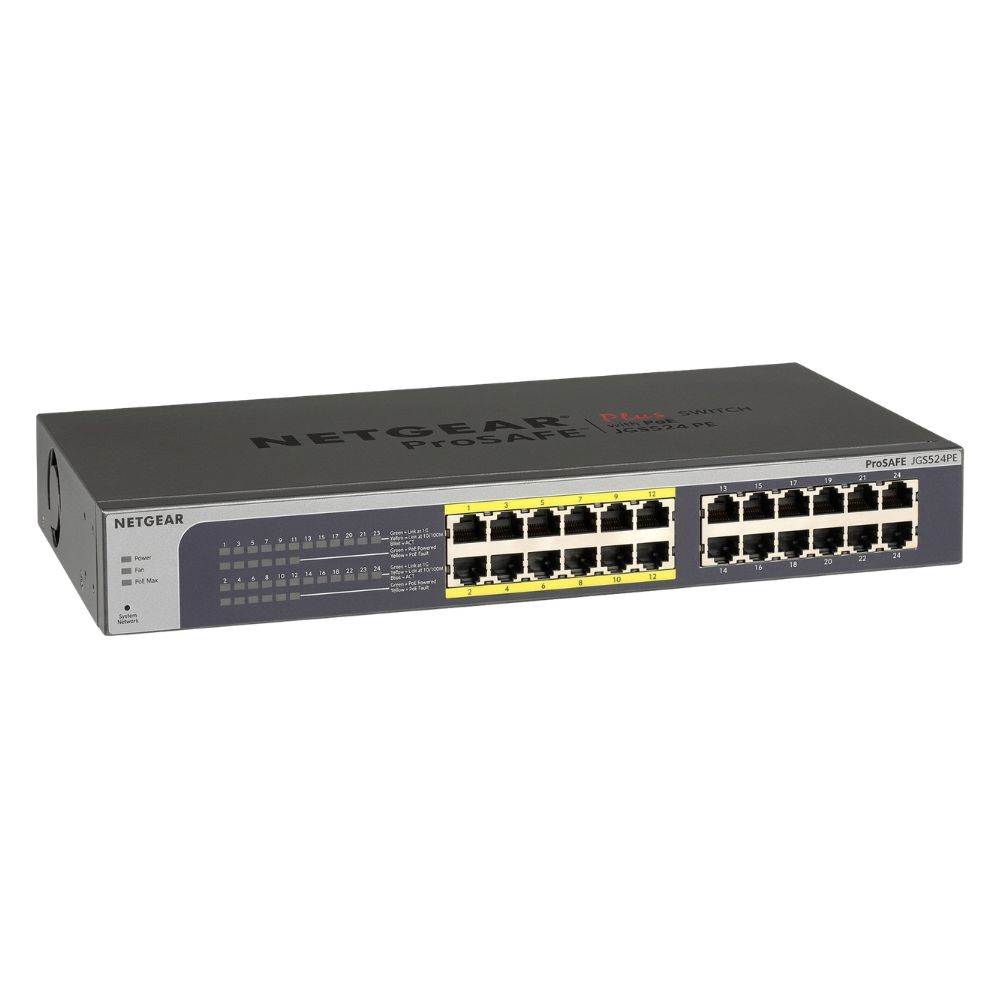

Name: JGS524PE Netgear 24-Port Gigabit Managed L2 Switch with 12 PoE
Brand: Netgear
SKU: JGS524PE
Price: 188.06 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Netgear JGS524PE is a Layer 2 managed switch that delivers 24 Gigabit Ethernet connections, including 12 PoE ports. It fits into network infrastructures requiring controlled data traffic with PoE support, offering essential management functions for network administrators in business environments.

General Information
Brand	Netgear
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Managed Switch, Smart Managed Switch, PoE Switch, Gigabit Switch
Mount Type	1U Rack, Desktop
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP
Port Speed	10/100/1000 Mbps
UpLink Ports	2 (SFP)
POE Support	PoE
Switching Capacity	48 Gbps
Switch Forwarding Rate	93.75 Mpps
DRAM	64 MB
Flash Memory	16 MB
VLAN Support	Yes
Max VLANs Supported	256
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9000 Bytes
MAC Address Table Size	8K

Management and Configuration
Remote Protocols	Web-Based GUI (HTTP/HTTPS), SNMP
Management Interfaces	Web Browser (HTTP/HTTPS), SNMP v1/v2
Security Features	802.1X authentication, Port-based access control, ACLs, MAC address filtering, Storm control
Management Type	Web-Based (Browser), SNMP
Security	802.1X, ACL
Remote Management Protocol	HTTP, HTTPS, SNMP, RMON

Power & Cooling
Fans	Fanless
Power	185 W (total PoE budget)
Power Supply	Internal AC 100-240V, 50-60Hz

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1X, IEEE 802.3af

Product Description
The Netgear JGS524PE is a managed Layer 2 switch equipped with 24 Gigabit Ethernet ports, including 12 ports that provide Power over Ethernet (PoE) capability. This device is used to connect multiple network devices while supplying power to compatible PoE-enabled devices such as IP cameras and wireless access points. It is typically deployed in office or small to medium enterprise networks where centralized control and reliable power delivery over Ethernet cables are required. Network administrators benefit from its Layer 2 management features for efficient control and monitoring of network traffic. Key Features 24 Gigabit Ethernet ports for high-speed connectivity 12 PoE ports to power devices directly through network cables Layer 2 managed switch capabilities for traffic management Supports network features typical of managed switches Designed for mid-sized network environments This switch serves as a critical component in networks needing consolidated data and power delivery. It simplifies cabling for powered devices and provides management tools that help maintain network performance and security without adding complexity.

Use Cases
The JGS524PE is commonly used in office settings and mid-sized enterprise networks where both data connectivity and power to PoE-enabled devices are needed. It suits environments requiring managed networks with straightforward deployment of IP telephony, surveillance, and wireless access solutions. How It's Used: Connecting office computers and network devices with Gigabit Ethernet speed Powering IP cameras and wireless access points via PoE to reduce cabling needs Managing traffic between multiple network segments at Layer 2 Deploying in small to medium-sized business networks for centralized control Supporting Voice over IP (VoIP) phones with power and data over a single cable Overall, the JGS524PE supports network consolidation by combining data and power delivery in one device while providing administrators with necessary control over network traffic. It plays a practical role in maintaining organized and manageable enterprise network layouts.

FAQ's
How many ports does the JGS524PE have? The switch includes 24 Gigabit Ethernet ports, with 12 of those ports providing Power over Ethernet (PoE) capability for powering devices. What does PoE mean on the JGS524PE? PoE allows the switch to deliver electrical power along with data over Ethernet cables to compatible devices like IP cameras or wireless access points, eliminating the need for separate power supplies. Is the JGS524PE a managed switch? Yes, it is a Layer 2 managed switch, which means it provides network administrators with the ability to control and monitor traffic on the switch ports. Can the JGS524PE support VoIP phones? Yes, its PoE ports can supply power and network connectivity to Voice over IP phones, simplifying installation by using a single Ethernet cable. What type of network is the JGS524PE designed for? It is designed for mid-sized office and enterprise networks requiring both Gigabit connectivity and PoE support for network devices. Does the JGS524PE support Layer 3 routing? No, this model is a Layer 2 switch and does not provide Layer 3 routing capabilities.
