| Product Overview |
|---|

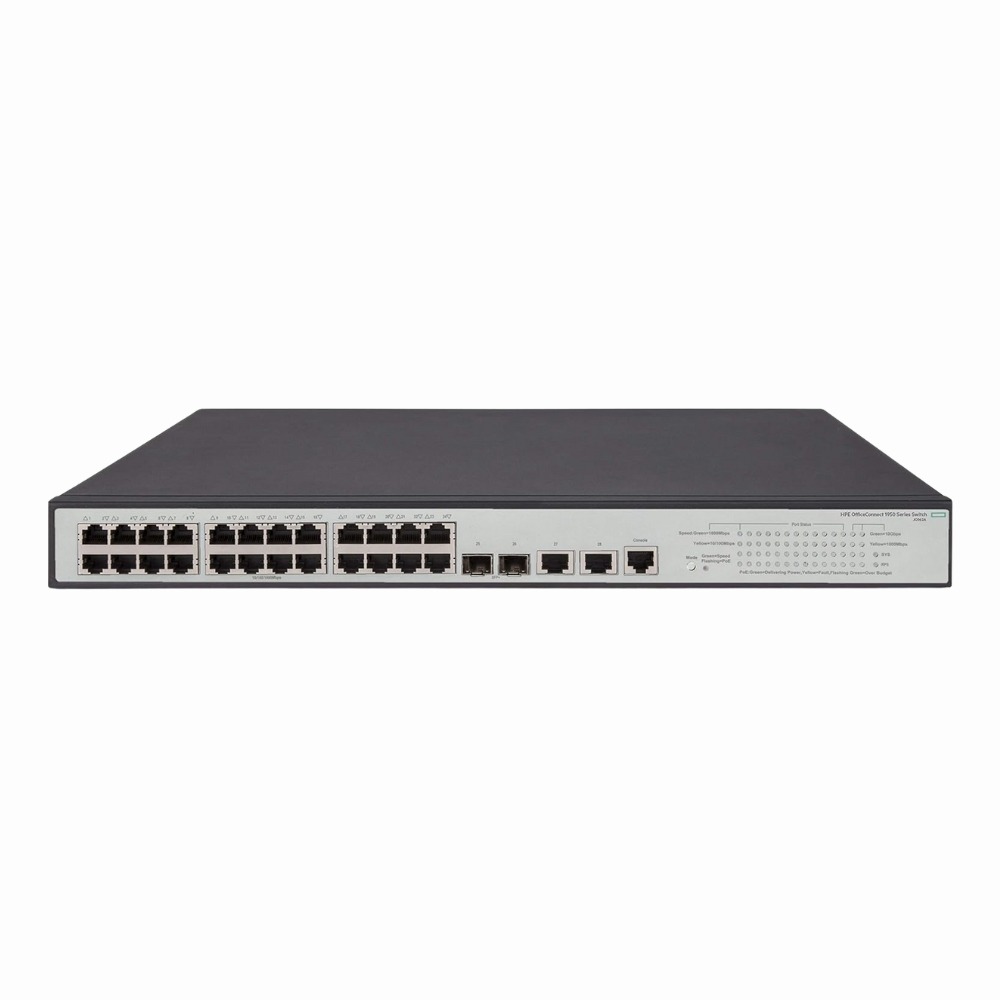

The HP OfficeConnect 1950-24G-2SFP+-2xGT-PoE+ switch combines 24 PoE+ Gigabit Ethernet ports with two 10G SFP+ uplinks and two Gigabit combo ports, making it fit well into office network setups that require both power and high-speed data connections. It offers managed switch features aimed at improving network reliability and efficiency without demanding complex setup. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JG962A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 x 10G SFP+, 2 x 1G RJ-45 (GT) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 343.75 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 Lite |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9000 Bytes |
| MAC Address Table Size | 8192 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web (HTTP/HTTPS), CLI (SSH/Telnet), SNMP v1/v2c/v3, RMON, Serial Console (RJ-45), USB Console |
| Security Features | 802.1X authentication, Access control lists (ACLs), Port security, DHCP Snooping, IP Source Guard, Storm control, DoS protection, RADIUS/TACACS+ authentication |
| Security | 802.1X, ACLs, RADIUS, TACACS+, SSH, SSL |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMPv1/v2c/v3 |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | 2 |
| Power | AC input 100-240VAC; PoE budget up to 370W |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 13.78 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ad |
| Product Description |
|---|
The HP OfficeConnect 1950-24G-2SFP+-2xGT-PoE+ is a managed switch designed to provide reliable network connectivity and power over Ethernet for small to medium-sized business environments. It offers 24 Gigabit ports that deliver both data and power to connected devices, making it useful for setups that include IP phones, wireless access points, and security cameras. This switch is often found in office networks where a balance of performance and manageability is important. Built for network administrators who require a straightforward yet flexible solution, it supports features like VLAN segmentation, QoS prioritization, and link aggregation to optimize traffic flow. Its 10Gbps SFP+ uplinks allow for high-speed connections to core networks or servers. Key Features
This switch is commonly deployed in office floors, meeting rooms, or small data closets where multiple powered devices connect to one network. It helps centralize network control while reducing clutter and installation complexity. Users appreciate its mix of speed, power delivery, and manageability for everyday business applications. |
