| Product Overview |
|---|

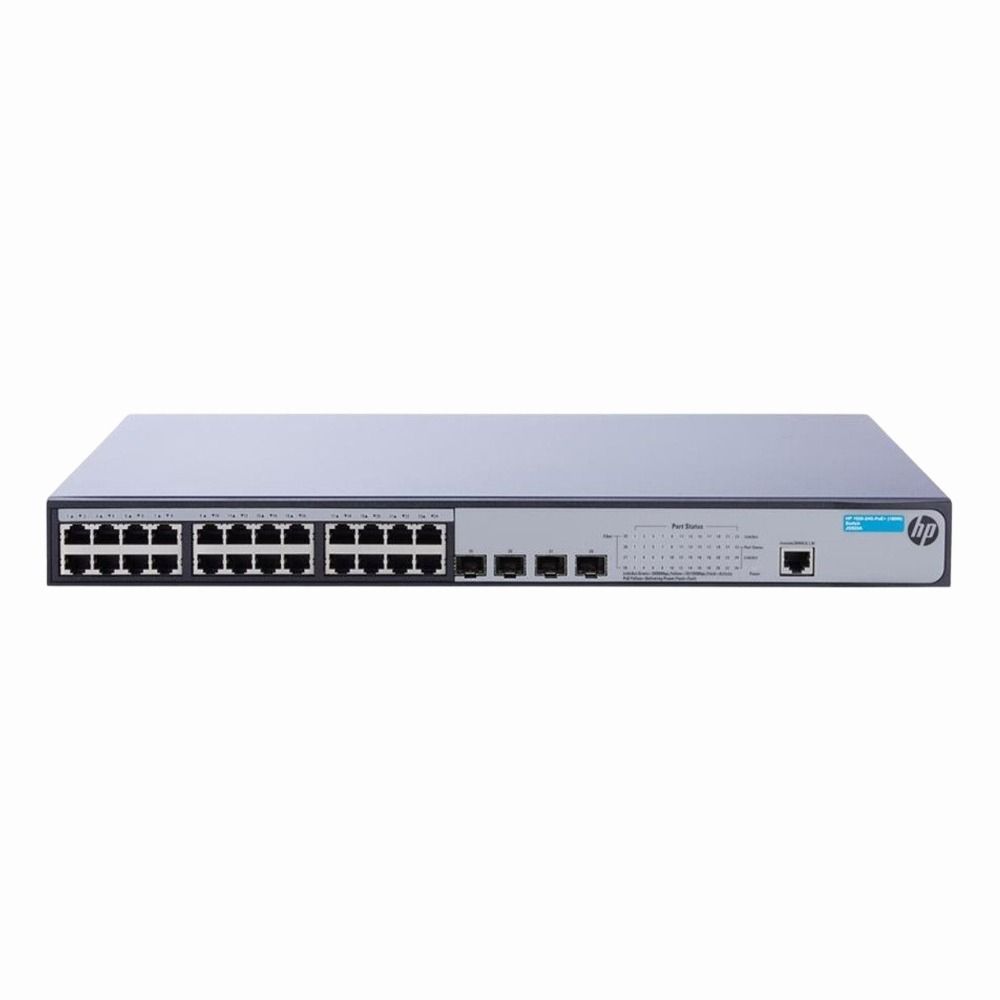

The HP OfficeConnect 1920-24G-PoE+ switch combines robust power delivery with Layer 3 networking, fitting neatly into business networks that need both speed and versatility. It supports a range of network devices while offering management features that help keep traffic efficient and reliable. |
| General Information | |
|---|---|
| Brand | HP |
| Part Number | JG925-61101 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 (SFP mini-GBIC) |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 41.67 Mpps |
| DRAM | 256 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8K MAC address entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), SNMP v1/v2c/v3, Console (RJ-45) |
| Security Features | 802.1X, ACLs, DHCP Snooping, IP Source Guard, RADIUS/TACACS+, Port Security, Storm Control |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMPv1/v2c/v3, RMON |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Power | 180W PoE budget; 100-240VAC, 50/60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 10.24 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP OfficeConnect 1920 Series 1920-24G-PoE+ is built for small to medium-sized businesses that require reliable and scalable network performance. Often found in office environments, it delivers both power and data through its PoE+ ports, making it ideal for devices like IP phones, wireless access points, and security cameras. Designed to simplify network management, this Layer 3 switch supports essential routing features, allowing IT teams to efficiently manage traffic and maintain network stability. Its combination of copper and fiber ports provides flexibility in connecting to various network segments. Key Features
This switch is typically deployed in office settings where a mix of data and powered devices need to coexist on a single network. It helps organizations keep their infrastructure organized and capable of supporting growing network demands without frequent hardware changes. |
