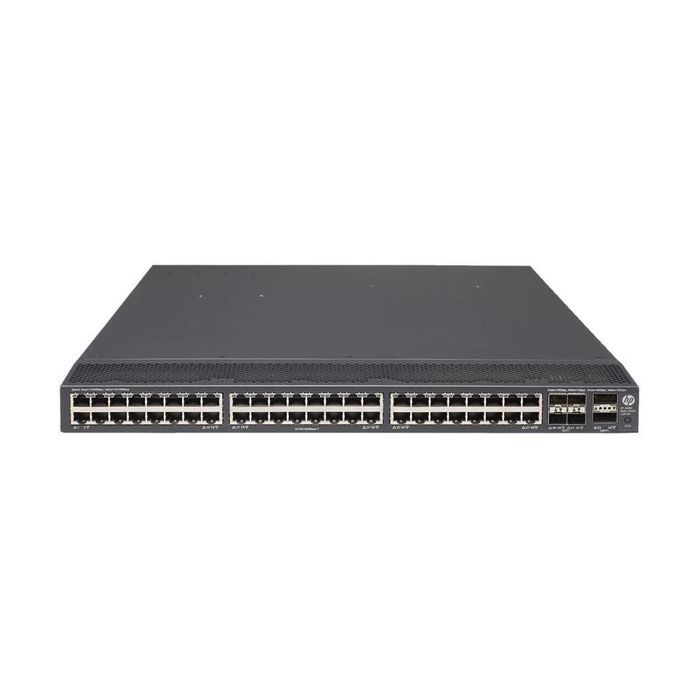

Name: JG850A#ACQ HP FlexNetwork 5900AF-48XGT-4QSFP+ 48-Port 10GBase-T 4QSFP+ Layer 3 Switch
Brand: HP
SKU: JG850A#ACQ
Price: 27934.06 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP FlexNetwork 5900AF-48XGT-4QSFP+ switch is a Layer 3 managed device designed to deliver high-speed Ethernet connectivity with a combination of 10GBase-T and QSFP+ ports. It fits well in enterprise and data center networks where both performance and advanced routing capabilities are necessary for effective traffic handling and scalability.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10GBase-T, 40G QSFP+, RJ-45, USB Console, Serial Console (RJ-45)
Port Speed	10GBase-T,40G
UpLink Ports	4 x QSFP+ (40G)
POE Support	No
Switching Capacity	1280 Gbps
Switch Forwarding Rate	952.4 Mpps
DRAM	2 GB
Flash Memory	512 MB
VLAN Support	Yes
Max VLANs Supported	1-4094 (up to 4094 VLANs)
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,QSFP+,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32768

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console/SSH),Web GUI, SNMPv1/v2c/v3, RMON, Telnet, HTTP/HTTPS
Security Features	ACLs,802.1X, RADIUS, TACACS+, SSH, SSL, DHCP Snooping,Dynamic ARP Inspection,IP Source Guard,Port Security
Management Type	In-Band and Out-of-Band Management
Remote Management Protocol	SNMPv1,SNMPv2c,SNMPv3,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Layer 3 routing support

Power & Cooling
Fans	4 (hot-swappable)
Power	AC 100-240V, 50-60Hz (typical max power consumption ~720W)
Power Supply	Internal AC power supply (hot-pluggable); optional redundant power supply support

Physical Characteristics
Dimensions	1.72 x 17.4 x 20.1 in
Weight	3.00
Operating Temperature	0 to 45 C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x

Product Description
The HP FlexNetwork 5900AF-48XGT-4QSFP+ switch offers robust Layer 3 management features tailored for demanding network infrastructures. Often found in data centers and enterprise networks, it delivers scalable performance and versatile connectivity options. Network engineers and IT professionals frequently rely on this switch for its balance of high port density and advanced routing capabilities. Key Features Supports 48 RJ-45 10GBase-T ports that provide versatile copper connectivity Equipped with 4 QSFP+ ports capable of 40Gbps for uplinks and stacking Delivers Layer 3 routing features including static, RIP, OSPF, and BGP Built with a rack-mount form factor to integrate into standard network racks Offers robust management options through CLI and web interfaces This switch plays a crucial role in building reliable and scalable network architectures. Its consistent performance and comprehensive feature set make it a dependable choice for maintaining operational stability. Designed to handle various routing and switching tasks, it integrates smoothly into network environments requiring efficient traffic management.

Use Cases
This switch is typically deployed in enterprise data centers and campus networks where high port density and 10Gbps connectivity are critical. IT teams benefit from its routing features and flexible uplink options, supporting demanding network workloads and scalable architecture. How It's Used: Aggregation layer switch in campus networks to support high-bandwidth user access Top-of-rack switch in data centers providing 10GBase-T connections to servers Core routing device in medium-sized enterprise networks leveraging Layer 3 features Link aggregation and uplink to backbone switches via QSFP+ ports Managed switch in virtualized environments requiring robust traffic segmentation By enabling enhanced network segmentation and high throughput, this switch supports operational efficiency and smooth scalability. Its advanced management options allow IT staff to maintain network performance while adapting to evolving infrastructure needs.
