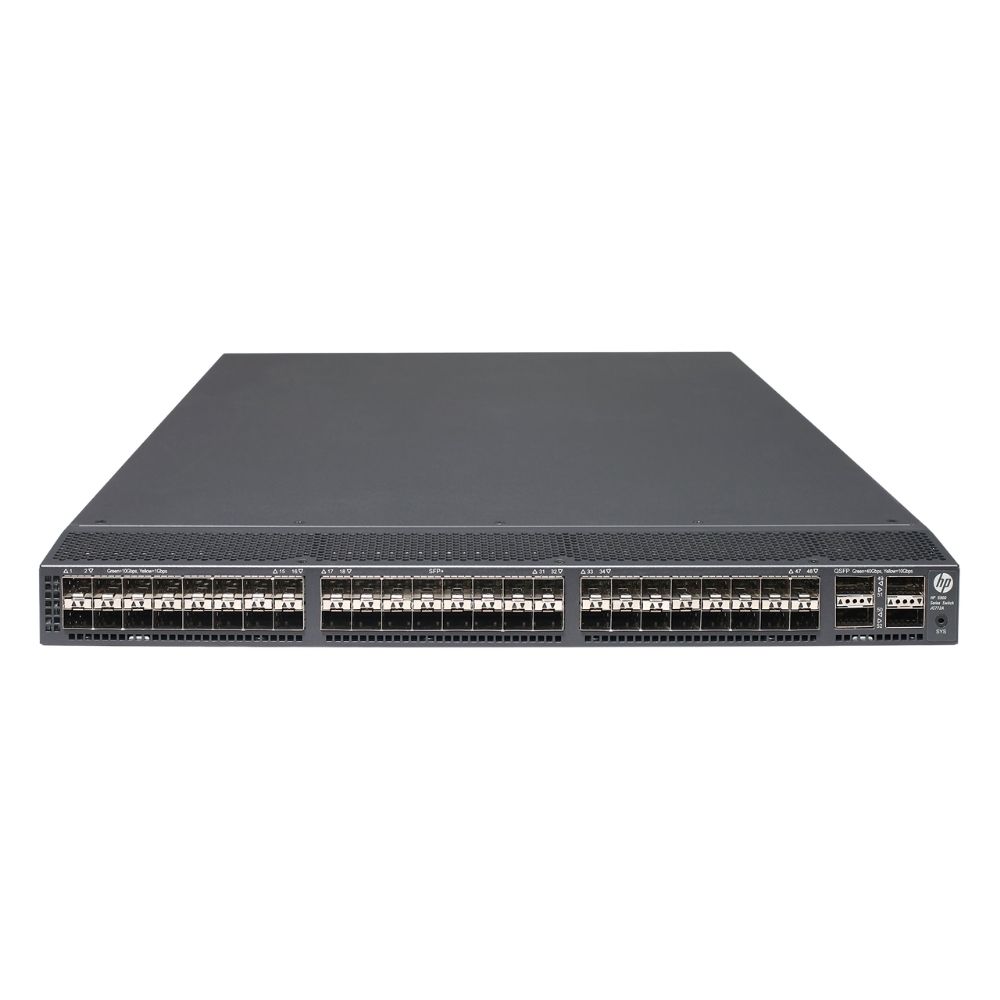

JG847A HP FlexNetwork 5900AF-48XG-4QSFP+ 48x10G SFP+ 4x40G QSFP+ Layer 3 Switch
SKU:
JG847A
Weight: 3.00 lbs
Condition: Refurbished
- 48 SFP+ ports supporting 10GBase-X for high-speed connectivity
- Includes 4 QSFP+ ports enabling 40GbE uplinks or stacking
- Layer 3 managed switch with advanced routing and switching features
- Compact 1U rack-mountable design suited for data center racks
| Product Overview |
|---|
The JG847A HP FlexNetwork 5900AF-48XG-4QSFP+ switch provides high-density 10 Gigabit Ethernet connections and advanced Layer 3 capabilities in a compact rack-mount form. It fits well into enterprise or data center networks requiring versatile port options and efficient traffic management. This product balances performance and flexibility, making it a practical choice for modern network deployments. |
| General Information | |
|---|---|
| Brand | HP |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x SFP+ |
| Number of Ports | 48-Ports |
| Port Type | 10G SFP+, 40G QSFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10 Gbps,40 Gbps |
| UpLink Ports | 4 x QSFP+ |
| POE Support | No |
| Switching Capacity | 1280 Gbps |
| Switch Forwarding Rate | 2500 Mpps |
| DRAM | 2 GB |
| Flash Memory | 1 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP+,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR) |
| Remote Protocols | Yes |
| Management Interfaces | Web UI,Command Line Interface (Console/SSH),SNMP v1/v2c/v3,RMON |
| Security Features | ACLs,802.1X authentication,TACACS+,RADIUS,SSH,SSL,Port Security,BPDU Guard,Storm Control |
| Management Type | In-band and Out-of-band |
| Remote Management Protocol | SSH,HTTPS,Telnet,HTTP,SNMP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable fans |
| Power | 100-240 VAC, internal |
| Power Supply | Internal AC power supply (100-240VAC) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72 x 17.5 x 19.0 in (H x W x D) |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1X,IEEE 802.3ae |
| Product Description |
|---|
The HP FlexNetwork 5900AF-48XG-4QSFP+ is a Layer 3 managed switch designed to deliver robust and scalable network performance. It is commonly found in data center and enterprise network environments where high throughput and advanced routing capabilities are needed. Network administrators and IT teams often use this switch to efficiently manage traffic across core or aggregation layers. Key Features
This switch plays a key role in maintaining reliable network operations through its scalable design and comprehensive management tools. Its performance and feature set address the demands of growing network infrastructures without compromising on stability or control. |
| Use Cases |
|---|
The HP FlexNetwork 5900AF-48XG-4QSFP+ switch is typically deployed in environments where high-speed and reliable network switching is crucial. It serves IT teams managing medium to large-scale networks that demand advanced routing and flexible connectivity options. Its design supports dense port configurations and uplink aggregation in professional data centers or enterprise cores. How It's Used:
In these settings, the switch enhances network efficiency by enabling scalable bandwidth and robust traffic control. Its adaptability ensures it can meet evolving network requirements while sustaining operational consistency. |
