Product Overview |
|---|

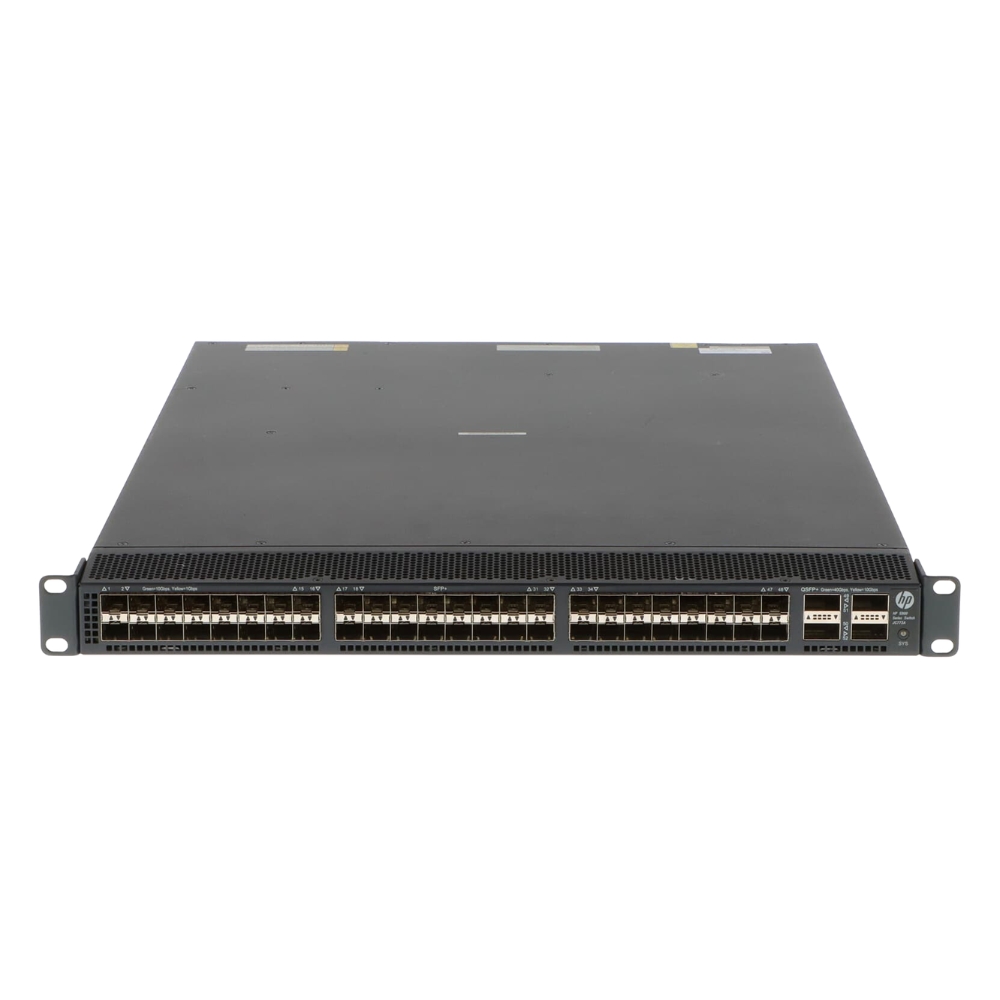

The JG847A#AC3 HP FlexNetwork 5900 Series switch is designed to deliver high-performance Layer 3 network management within a compact rack-mountable chassis. It supports a large number of 10G SFP+ connections along with high-speed QSFP+ uplinks, making it suitable for dense network infrastructures requiring advanced routing and switching capabilities. |
General Information |
|
|---|---|
| Brand | HP |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x SFP+ (10GBase-X) |
| Number of Ports | 48-Ports |
| Port Type | SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10 Gbps,40 Gbps |
| UpLink Ports | 4 x QSFP+ (40 Gbps) |
| POE Support | No |
| Switching Capacity | 1.28 Tbps |
| Switch Forwarding Rate | 952.38 Mpps |
| DRAM | 2 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Optional |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP+,USB Console,Serial Console (RJ-45) |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH),Web GUI (HTTP/HTTPS),SNMPv1/v2c/v3,RMON,Telnet |
| Security Features | ACLs,802.1X Port Authentication,SSH,Port Security,MAC Authentication,IP Source Guard,DoS Protection |
| Management Type | In-band and Out-of-band |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP/HTTPS |
| Routing Protocol | Static,RIP,OSPF,BGP,VRRP |
Power & Cooling |
|
|---|---|
| Fans | Redundant hot-swappable fans |
| Power Supply | Internal AC power supply (single), optional redundant PSU |
Physical Characteristics |
|
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ae,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s,IEEE 802.3ab |
Product Description |
|---|
The JG847A#AC3 HP FlexNetwork 5900 Series switch delivers robust Layer 3 routing and switching performance, supporting high-density 10GBase-X connections through 48 SFP+ ports. Built for enterprise and data center environments, this unit is often found in network cores or aggregation layers where high bandwidth and low latency are critical. Engineered for IT professionals and network administrators, it balances speed and management features to meet demanding connectivity requirements. The switch is commonly deployed in racks, offering both space efficiency and scalability. Key Features
This switch plays a vital role in maintaining network stability and performance, especially in environments where speed and reliability are paramount. Its design ensures consistent throughput and helps reduce network congestion. With a focus on dependable operation, the device supports efficient traffic routing and easy integration into existing network architectures without compromising on performance. |
Use Cases |
|---|
This switch is typically deployed in enterprise data centers and service provider networks where high bandwidth and flexible port configurations are necessary. Its robust Layer 3 features and high-density 10G connectivity make it a solid choice for networks requiring reliable, scalable management of traffic flows. How It's Used:
By supporting complex Layer 3 routing and high-speed interfaces, this switch helps maintain efficient and scalable network operations, enabling IT teams to manage growing data loads and evolving network topologies effectively. |
