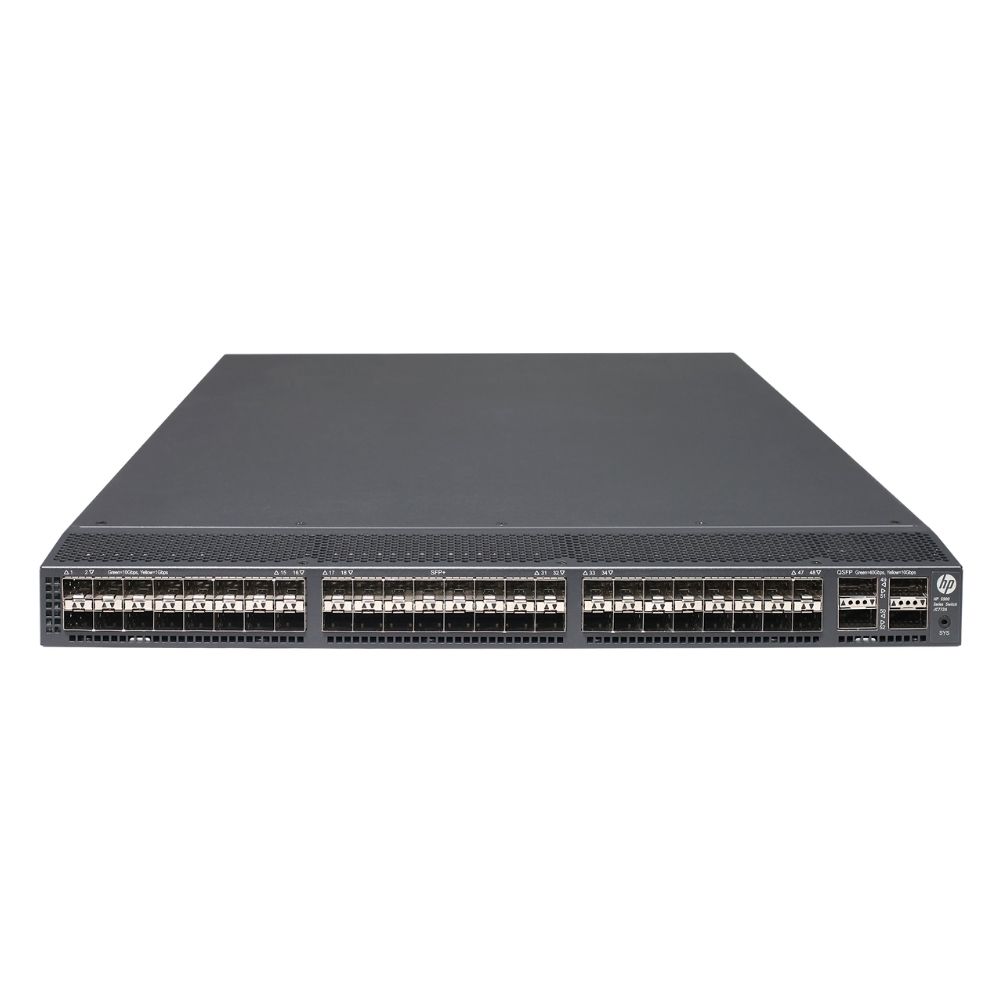

Name: JG554-61101 HPE A5900AF-48XG-4QSFP 48 SFP+ 10GbE 4 QSFP+ Switch
Brand: HPE
SKU: JG554-61101
Price: 365.20 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The JG554-61101 - HPE A5900AF-48XG-4QSFP is a modular switch designed to facilitate high-density 10GbE connectivity with 48 SFP+ ports and four QSFP+ uplinks. It fits well into enterprise core and data center networks, providing a balance of speed, scalability, and routing capability without unnecessary complexity.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10G SFP+, 40G QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,40Gbps
UpLink Ports	4
POE Support	No
Switching Capacity	1.28 Tbps
Switch Forwarding Rate	2500000000 pps
DRAM	2 GB
Flash Memory	1 GB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP+,QSFP+,Serial Console (RJ-45),USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console), SSH, Telnet, Web GUI (HTTP/HTTPS), SNMP
Security Features	802.1X,ACLs,SSH,SSL,Port security,MAC limiting,DHCP Snooping,IP Source Guard,Storm control
Management Type	Web GUI / CLI / SNMP
Security	Yes
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS

Power & Cooling
Fans	Hot-swappable redundant fans
Power	AC 100-240V, 50/60 Hz
Power Supply	Internal AC power supply (single, optional redundant)

Physical Characteristics
Dimensions	1.73 x 17.32 x 15.75 in (44 x 440 x 400 mm)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.1X, IEEE 802.3x

Product Description
The JG554-61101 - HPE A5900AF-48XG-4QSFP is a high-performance switch built for environments requiring dense 10 Gigabit Ethernet connections combined with flexible uplink options. It is often found in data centers and enterprise networks where resilient, high-throughput switching is essential. Network engineers and IT professionals benefit from its combination of extensive SFP+ port availability alongside QSFP+ ports that support aggregation or stacking, making it suitable for scalable infrastructure. Key Features Offers 48 SFP+ ports optimized for 10GbE access or server connections Includes four QSFP+ ports supporting 40GbE for uplinks or stacking Built-in Layer 3 routing capabilities to handle complex traffic flows Supports high-density 1/10GbE media with flexible fiber options Designed with reliability and high throughput for data center use This switch plays a key role in delivering reliable and scalable network performance, while offering sufficient port density to accommodate growing bandwidth requirements. Its balanced feature set supports smooth traffic management and network expansion.

Use Cases
This switch is typically deployed in data center aggregation layers and enterprise core networks where dense 10GbE connections are needed. It serves organizations that require robust, scalable infrastructure supporting virtualization and high traffic volumes. How It's Used: Aggregating server farm connections within a data center environment Backbone switching in medium to large enterprise IT networks Supporting high-throughput virtualization environments with extensive 10GbE links Providing flexible uplinks for connecting to core routers or higher-speed switches Facilitating scalable stacking in distributed network architectures By offering a combination of port density and uplink flexibility, this switch helps maintain performance and network stability under demanding workloads. It supports operational efficiency by integrating high-speed connectivity with advanced routing features common in modern IT infrastructures.
