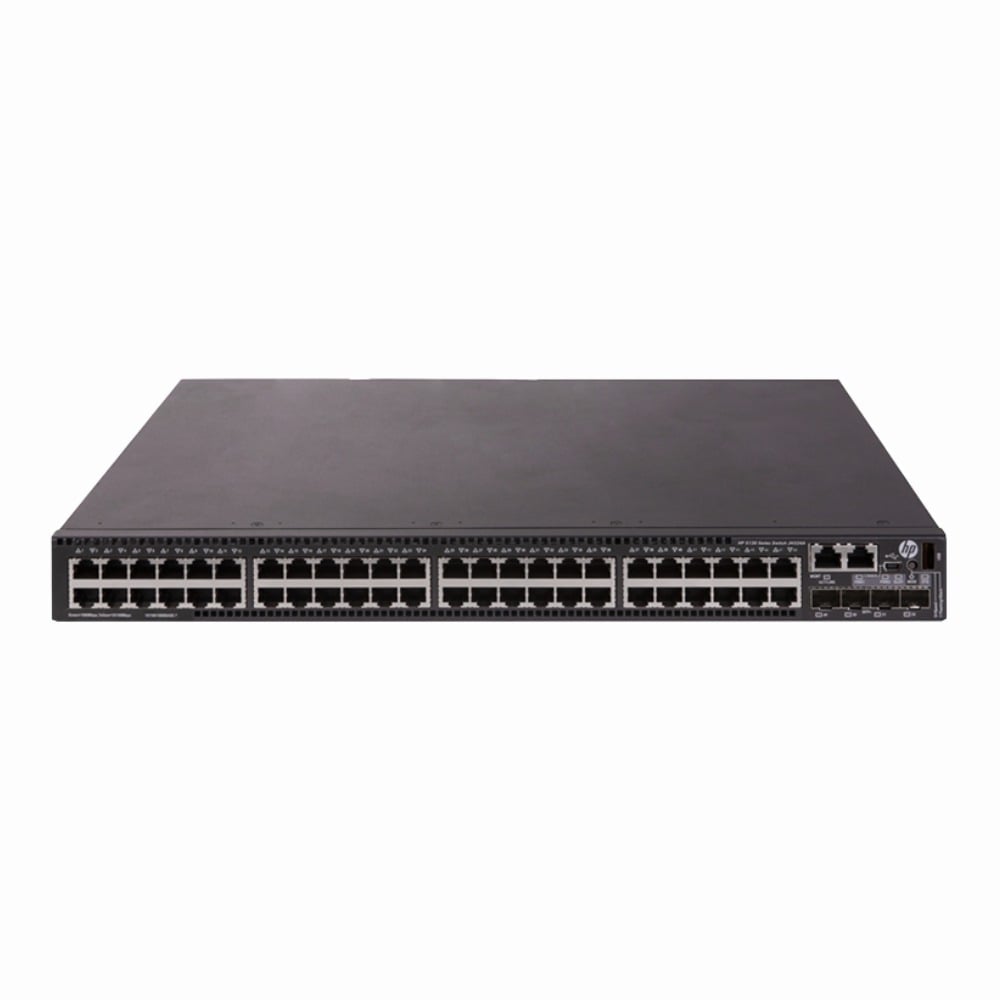

Name: JG316-61001 HP FlexFabric 5830 Series 5830AF-48G 48 x Ports 10/100/1000Base-T + 2 x Dual Personality RJ-45/SFP Ports + 2 x SFP+ Ports Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Brand: HP
SKU: JG316-61001
Price: 651.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP FlexFabric 5830 Series 5830AF-48G is a Layer 3 managed switch designed to provide flexible and scalable gigabit Ethernet connectivity. It fits well in data center access layers or enterprise campus networks, combining high port density with versatile uplink options to support various networking requirements.

General Information
Brand	HP
Part Number	JG316-61001
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 1000Base-X, Combo RJ-45/SFP, RJ-45, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps
POE Support	PoE
Switching Capacity	176 Gbps
Switch Forwarding Rate	131.0 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32768

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP, MLD
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), Serial Console (RJ-45), USB Console, SNMPv1/v2c/v3, RMON
Remote Management Protocol	SNMP, SSH, Telnet, HTTP, HTTPS, Syslog, RMON
Routing Protocol	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP

Power & Cooling
Fans	2 hot-swappable fans
Power	AC 100-240V, 50/60Hz; max system power varies (includes PoE budget)

Physical Characteristics
Dimensions	1.72 x 17.32 x 16.54 in
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x

Product Description
The HP FlexFabric 5830 Series 5830AF-48G is a versatile network switch designed to deliver reliable and high-performance gigabit connectivity. Often found in enterprise data centers and large office networks, it offers multiple port types to accommodate diverse networking needs. This switch is built for network administrators and IT professionals who require robust management features and scalability. Key Features Supports 48 RJ-45 10/100/1000Base-T ports for wired devices Includes 2 dual personality ports that can operate as RJ-45 or SFP for flexible connection options Equipped with 2 SFP+ ports enabling 10Gbps uplink speeds Delivers Layer 3 routing functions for efficient traffic management Rack-mountable 1U design fits standard server racks securely This switch is typically deployed in environments needing reliable gigabit connections with advanced routing, such as campus networks or enterprise edge setups. It helps improve network performance and management without excessive complexity, making it a solid choice for medium to large networks.

Use Cases
The HP FlexFabric 5830AF-48G switch is well-suited for enterprise and data center network environments where high port density and flexible uplink capabilities are essential. It is ideal for organizations requiring robust Layer 3 routing combined with scalable gigabit connectivity for diverse workloads. How It's Used: Deploying in enterprise campus networks to aggregate access layer traffic with flexible uplink options for core connectivity. Supporting virtualization environments by providing high-density gigabit ports and advanced Layer 3 routing within server racks. Facilitating edge computing deployments where low latency and scalable connectivity are necessary for distributed applications. Enabling SMB data centers to implement scalable and manageable network infrastructure with versatile port configurations. Integrating into storage clusters requiring reliable, high-throughput connections with 10Gbps uplink support for data-intensive workloads. This switch enhances operational efficiency by consolidating network layers and offering scalable options for growth. Its routing capabilities enable streamlined traffic management, supporting performance and flexibility demands in complex enterprise and data center topologies.
