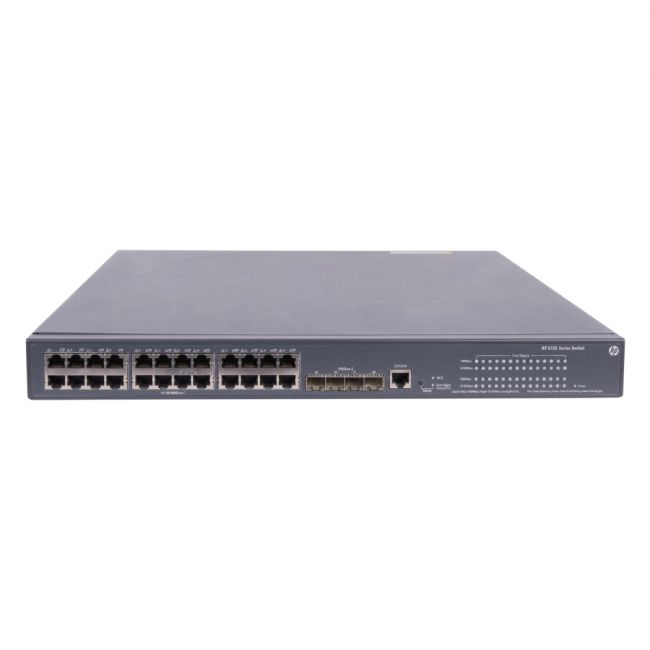

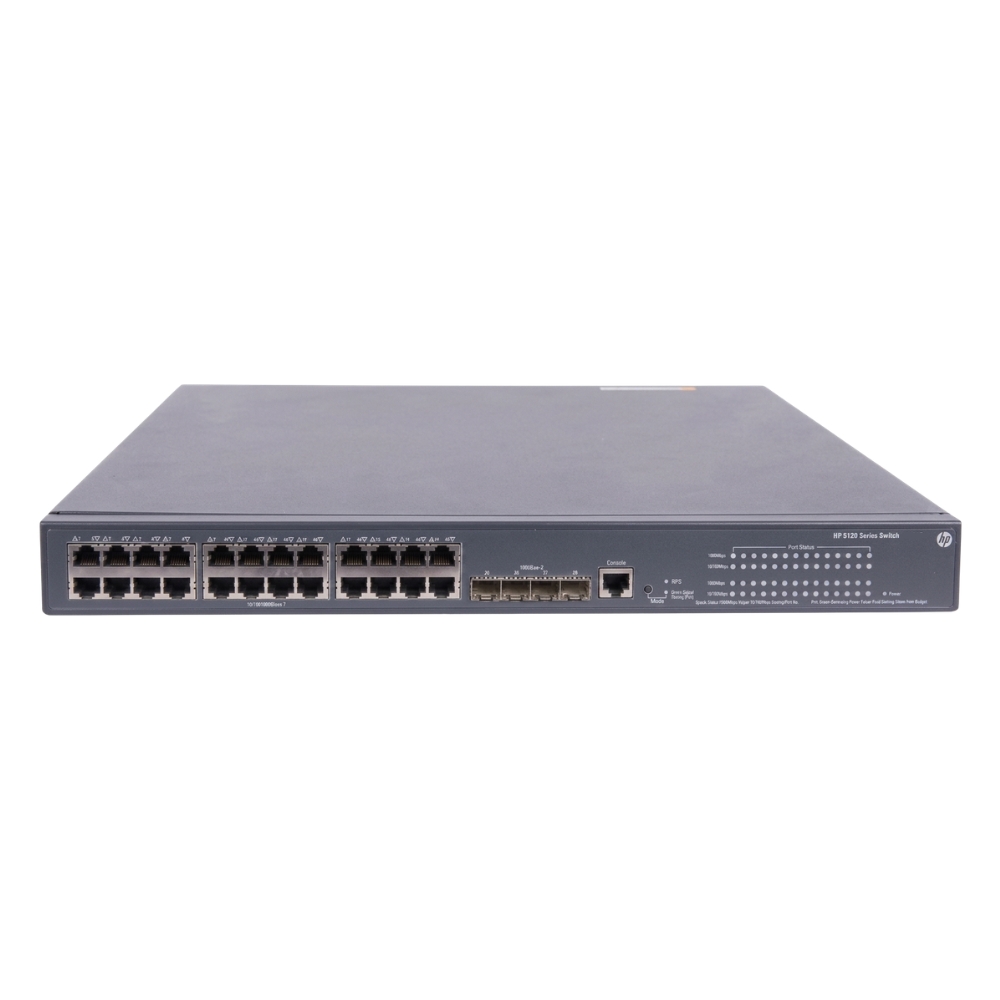

Name: JG247-61001 HPE 5120-24G-PoE+ 24-Port Gigabit PoE+ Layer 3 Switch
Brand: HPE
SKU: JG247-61001
Price: 1421.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JG247-61001 switch combines advanced Layer 3 routing with versatile PoE+ support, fitting well in network environments that require efficient data handling and power over Ethernet. It integrates multiple uplink options to connect with broader network infrastructures, providing a balance between performance and deployment flexibility.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T
UpLink Ports	4 x SFP (1G)
POE Support	PoE+
Switching Capacity	56 Gbps
Switch Forwarding Rate	41.67 Mpps
DRAM	256 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8192

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH, Telnet), SNMP v1/v2c/v3, RMON, Serial Console (RJ-45), USB
Security Features	802.1X, ACLs, MAC authentication/port security, SSH, SSL, IP-MAC-Port binding, DHCP Snooping, Dynamic ARP Inspection, Storm Control
Management Type	Managed
Remote Management Protocol	SNMP, SSH, Telnet, HTTP, HTTPS, RMON
Routing Protocol	Static, RIP, OSPF, VRRP

Power & Cooling
Fans	Temperature-controlled internal fan(s)
Power	370 W (total/PoE budget approx. 370 W)
Power Supply	Internal 370W AC power supply

Physical Characteristics
Dimensions	1.73 x 17.32 x 12.80 in (44 x 440 x 325 mm)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The JG247-61001 is a Layer 3 switch built for managing network traffic efficiently in mid-sized enterprise settings. It is commonly found in access and aggregation layers where reliable connectivity and power delivery over Ethernet are essential. IT professionals benefit from its combination of switching and routing functions along with PoE+ support. Key Features Offers integrated PoE+ across 24 ports to power devices like IP phones and cameras without separate power supplies Provides 4 SFP ports for fiber connectivity options, enhancing uplink flexibility and network scalability Supports advanced Layer 3 protocols to route traffic between VLANs and subnets effectively Includes security and QoS features to optimize network performance and protect data flows Designed to operate with efficient cooling and low noise for deployment in office environments This switch serves as a practical network foundation, enabling seamless data transfer and power distribution within network segments. Its stable performance and feature set help maintain network reliability and support growth as demands evolve.

Use Cases
The JG247-61001 switch is typically deployed in enterprise network access layers where powering devices directly through Ethernet cables simplifies infrastructure. It suits environments needing a balance of high port density and routing capabilities without moving to core switches. How It's Used: Edge network deployments in corporate or campus settings requiring PoE+ for connected devices SMB networks needing consolidated switching and routing in a compact hardware footprint Remote office locations where fiber uplinks improve connectivity back to main data centers Security camera networks benefiting from centralized power and network management Industrial or utility sites that require robust Layer 3 features and flexible port configurations By combining routing functions with PoE+ capabilities, this switch supports efficient network architectures that reduce equipment needs and simplify cable management while maintaining reliable performance.
