Product Overview |
|---|

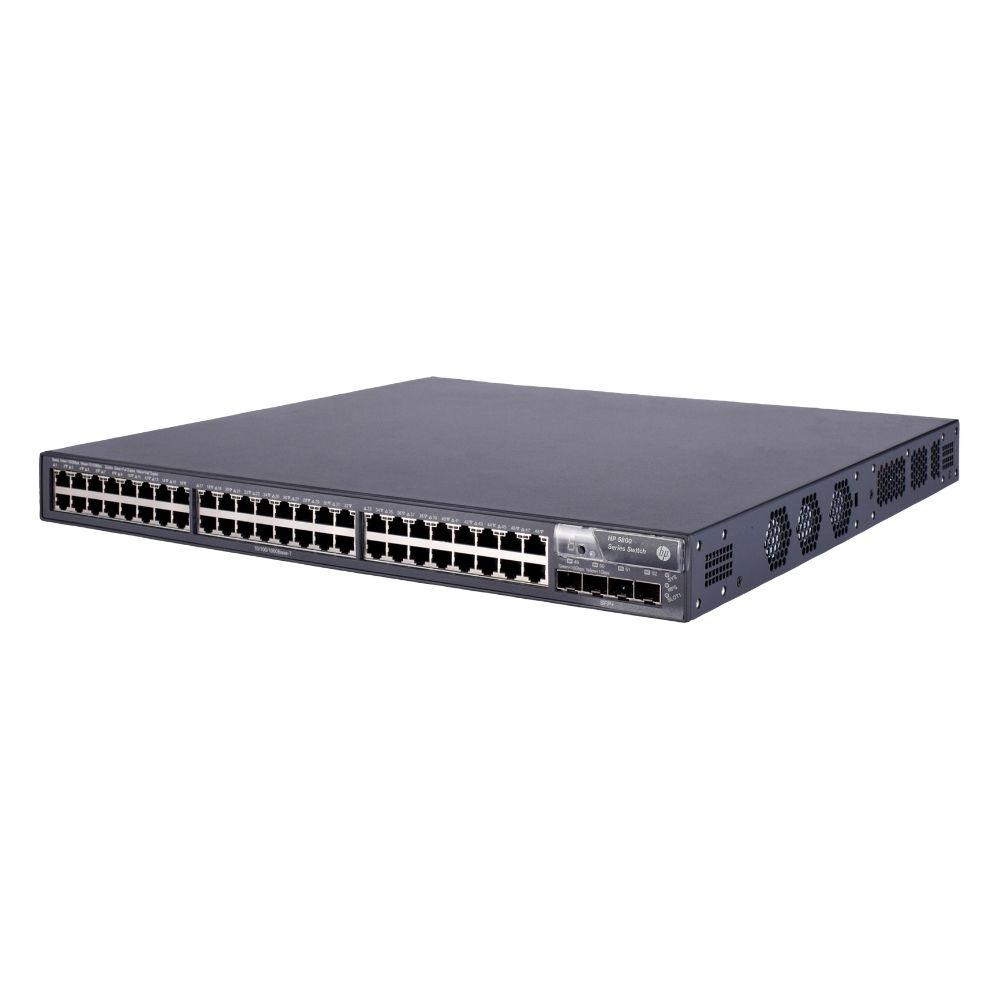

The JG242-61101 - HPE 5800-48G-PoE+ 48-Port + 4-Port SFP Layer 3 Switch combines high-density PoE+ support with Layer 3 capabilities, making it a core component in enterprise networks. It fits where robust power delivery and advanced network routing are needed to maintain seamless communication and device integration. |
General Information |
|
|---|---|
| Brand | HPE |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.125 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
Performance |
|
|---|---|
| Latency | <10 µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), SNMPv1/v2c/v3, RMON |
| Security Features | 802.1X, ACLs, SSH, SSL, MAC filtering, Port security, Storm control, DHCP snooping, IP Source Guard, Dynamic ARP Inspection |
| Management Type | Managed |
| Security | Yes |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS |
| Routing Protocol | Static,RIP,OSPF,VRRP |
Power & Cooling |
|
|---|---|
| Fans | Internal variable-speed fans (front-to-back airflow) |
| Power | AC 100-240V, 50/60Hz; PoE budget up to 740W |
| Power Supply | Internal AC power supply |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.72 x 17.32 x 15.75 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s |
Product Description |
|---|
The JG242-61101 is a network switch built to handle complex networking needs with ease. It combines 48 PoE+ Ethernet ports to power devices like IP phones and wireless access points directly through the network cable. The addition of 4 SFP ports allows for scalable fiber uplinks, supporting extended network topologies. Often found in enterprise and campus networks, this switch supports Layer 3 routing to efficiently manage traffic between VLANs and improve overall network performance. IT teams and network administrators benefit from its ability to integrate power and data delivery in a single device, simplifying installations and reducing hardware complexity. Key Features
This switch plays a vital role in consolidating network infrastructure by offering both power and data connectivity in one platform. Its reliable performance helps maintain stable network operations while supporting a variety of connected devices. The routing features also contribute to efficient traffic management and scalability as networks grow. |
Use Cases |
|---|
This switch is typically deployed in mid to large-scale enterprise networks where powering numerous endpoints and managing complex traffic flows are essential. It suits environments demanding reliable PoE+ delivery alongside flexible uplink options for connecting different network segments. How It's Used:
By integrating power delivery and routing in a single switch, this product helps streamline network architecture and improves operational efficiency. It supports scalable growth and reliable network performance across varied business environments. |
