Product Overview |
|---|

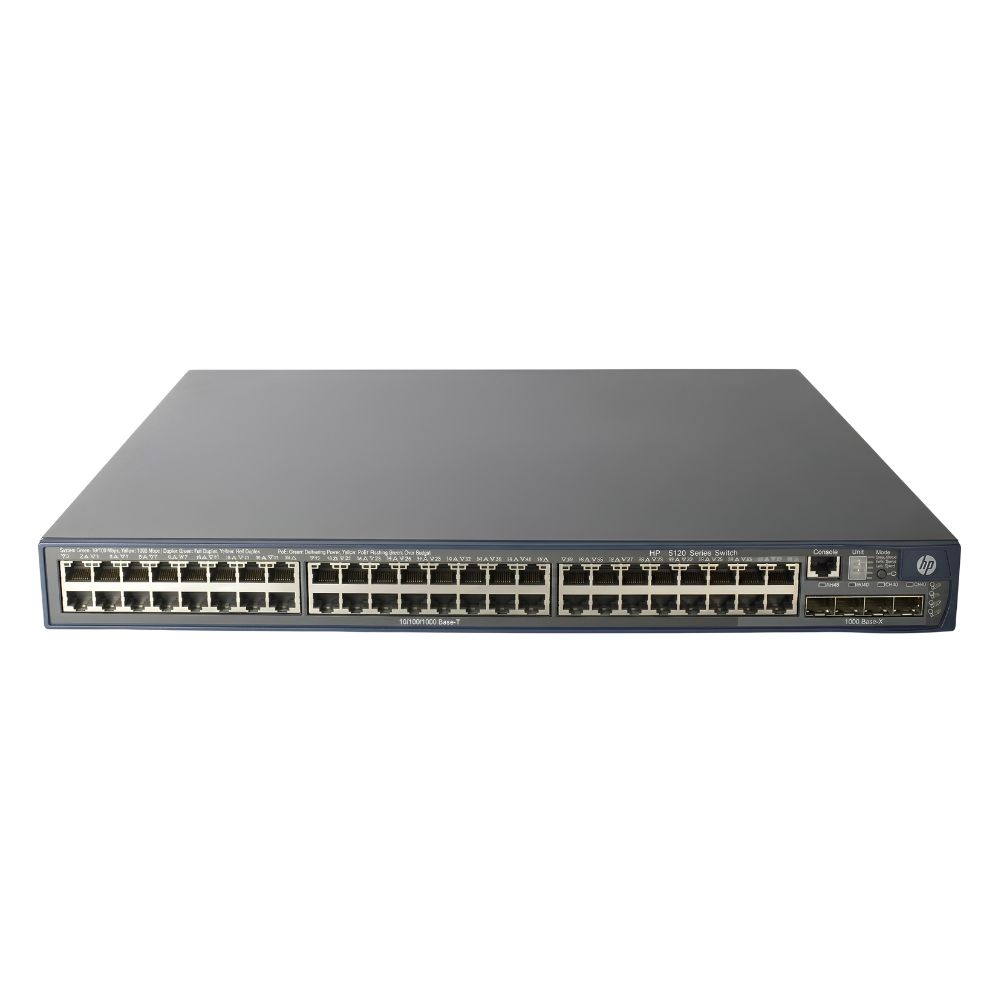

The JG237-61001 - HP 5120-48G-PoE+ 48-Port + 4-Port SFP Layer 2 Switch offers a balance of connectivity and power delivery. It fits into network access layers where multiple powered devices need reliable Ethernet connections combined with flexible uplink capabilities. This switch manages data traffic efficiently while supporting essential security and network control features in a professional environment. |
General Information |
|
|---|---|
| Brand | HP |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 2, Managed Switch, Smart Managed Switch, PoE Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.125 Mpps |
| DRAM | 512 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Optional |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP,Serial Console (RJ-45) |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,Command Line Interface (CLI),SNMP,SSH,Telnet,Console (RJ-45) |
| Security Features | 802.1X,ACLs,Port Security,DHCP Snooping,IP Source Guard,BPDU Guard,Storm Control,MAC Authentication |
| Management Type | Web-based,CLI,SNMP |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP/HTTPS |
| Routing Protocol | Static |
Power & Cooling |
|
|---|---|
| Fans | Internal |
| Power | AC 100-240V, 50/60 Hz; PoE budget 370W |
| Power Supply | Internal AC power supply |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.73 x 17.32 x 12.99 in (44 x 440 x 330 mm) |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
Product Description |
|---|
The JG237-61001 - HP 5120-48G-PoE+ is a Layer 2 network switch designed to provide efficient data switching and power delivery across a variety of network setups. Often found in enterprise and mid-sized business networks, it supports the growing demand for connected devices through Power over Ethernet technology combined with high port density. Built for network administrators who require stable performance and scalability, this switch integrates easily into existing infrastructure to enhance both wired connectivity and management capabilities. It is commonly used in environments that need smooth traffic handling and secure access control at the access layer. Key Features
This switch plays a critical role in providing consistent, high-speed data transfer and power delivery within network access layers. Its reliable operation and extensive feature set make it a practical choice for maintaining smooth communication across connected devices. With its blend of port capacity, power handling, and switching functionality, this device supports the backbone of networking infrastructures by managing traffic effectively and ensuring network stability. |
Use Cases |
|---|
The HP 5120-48G-PoE+ switch typically serves in enterprise and campus networks where large numbers of powered devices require stable connections. It suits settings that demand strong network segmentation and traffic management capabilities without sacrificing power delivery to endpoints. How It's Used:
In these environments, the switch enhances operational efficiency by supporting multiple device types with power and data while maintaining network segmentation and control. Its scalable design helps meet growing demands as networks expand or evolve. |
