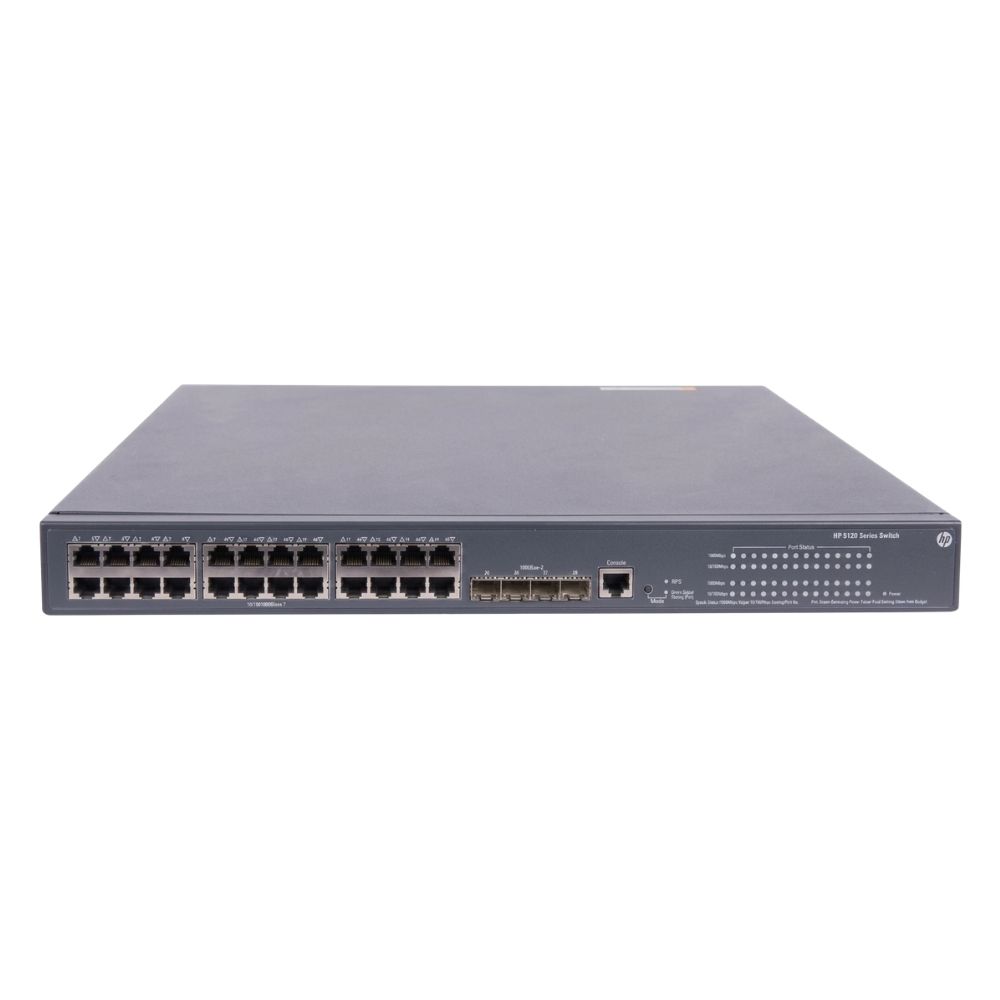

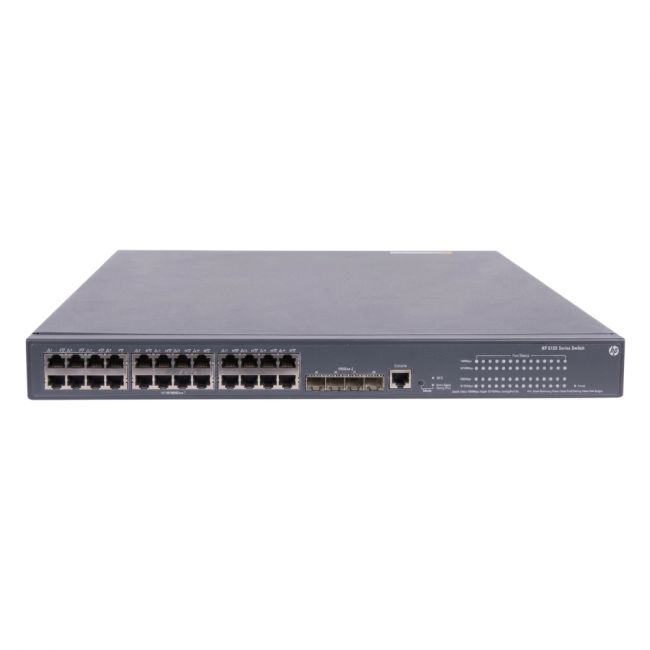

Name: JG236-61101 HP 5120-24G-PoE+ 24-Port + 4-Port SFP Layer 3 Switch
Brand: HP
SKU: JG236-61101
Price: 107.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JG236-61101 - HP 5120-24G-PoE+ 24-Port + 4-Port SFP Layer 3 Switch combines multiport PoE+ functionality with Layer 3 routing capabilities. It fits well in enterprise or campus networks that require flexible connectivity and traffic management, supporting both copper and fiber interfaces for diversified deployment.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps
UpLink Ports	4 SFP
POE Support	PoE+
Switching Capacity	128 Gbps
Switch Forwarding Rate	95.2 Mpps
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8192

Management and Configuration
Routing Protocols	Static, RIP, OSPF
Remote Protocols	Yes
Management Interfaces	Web UI (HTTP/HTTPS), CLI (Console/SSH/Telnet), SNMPv1/v2c/v3, RMON
Security Features	802.1X,ACLs,MAC address binding/port security,IP Source Guard,DHCP Snooping,ARP inspection,Storm control,SSH/SSL
Management Type	Managed
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS
Routing Protocol	Static,RIP,OSPF

Power & Cooling
Power	370W PoE budget; AC 100-240V
Power Supply	Internal AC 100-240V

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.3x

Product Description
The JG236-61101 - HP 5120-24G-PoE+ switch provides comprehensive Layer 3 features combined with Power over Ethernet Plus, making it suitable for networks requiring both data and power delivery over a single connection. It is often found in enterprise and campus networks where scalable, intelligent switching is necessary to manage diverse connected devices. Built for IT professionals managing complex network infrastructures, this switch supports a broad range of protocols and routing functions to optimize traffic flow and network segmentation. Its PoE+ capability helps power devices like IP phones, wireless access points, and surveillance cameras directly from the switch. Key Features Supports up to 24 PoE+ Gigabit Ethernet ports, delivering up to 30W per port Includes 4 SFP slots for uplink flexibility and increased bandwidth Integrated Layer 3 routing for static routes and dynamic routing protocols Offers advanced QoS features to prioritize critical network traffic Designed with a resilient architecture to ensure stable network operations This switch plays an important role in simplifying network design by combining switching, power, and routing functions in one device. With its reliable performance and configuration options, it supports consistent network uptime and efficient resource allocation.

Use Cases
This HP 5120-24G-PoE+ switch is typically deployed in enterprise campus networks, data center edge environments, and medium-sized business infrastructures. It benefits network administrators who need to manage power delivery alongside data transmission while maintaining routing efficiency. How It's Used: Powering and connecting VoIP phones and wireless access points in office buildings Providing fiber uplinks in campus network aggregation layers for enhanced speed Supporting network segmentation and routing between VLANs in mid-sized enterprises Serving as an access switch in data center top-of-rack deployments Enabling power and data delivery for IP surveillance cameras in corporate facilities By integrating power delivery and Layer 3 switching, this device helps maintain streamlined network operations and scalability. Its design supports operational efficiency where combining multiple network functions is critical to infrastructure performance.
