Product Overview |
|---|

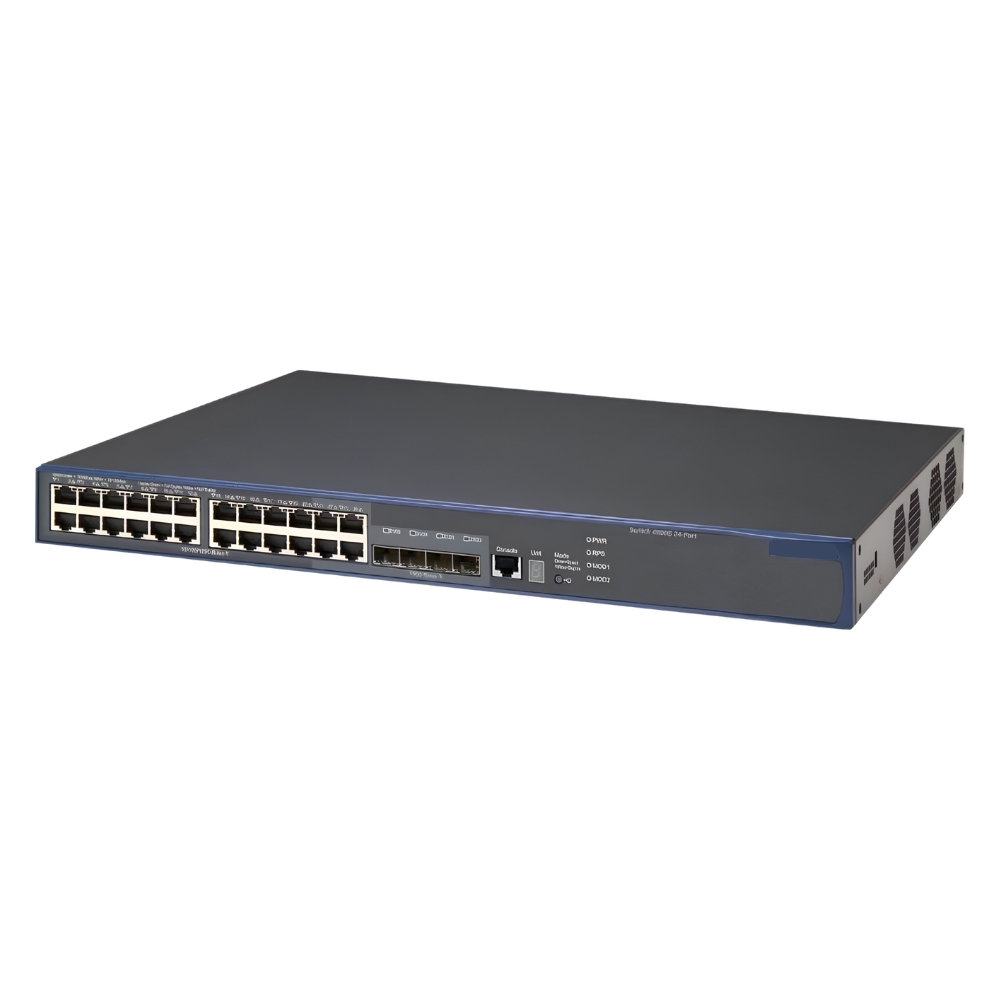

The HP E4510-24G switch offers 24 gigabit Ethernet ports combined with shared SFP slots and expansion options, fitting well into enterprise networks that require flexible connectivity and Layer 3 routing. It balances port density with modular growth potential, allowing for tailored network configurations without complexity. |
General Information |
|
|---|---|
| Brand | HP |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 48 Gbps |
| Switch Forwarding Rate | 93.75 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| NIM Slot | 2 |
| Stackable | Optional |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS),CLI (SSH, Telnet),SNMP (v1/v2c/v3),RMON |
| Security Features | 802.1X,ACLs (IPv4/IPv6),RADIUS,TACACS+,SSH,SSL,Port security,MAC filtering |
| Management Type | Managed |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static,RIP,OSPF,VRRP,IGMP |
Power & Cooling |
|
|---|---|
| Fans | 2 (variable speed) |
| Power | 100-240 VAC, 50-60 Hz |
| Power Supply | Internal AC (single); optional redundant power module |
Physical Characteristics |
|
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1s |
Product Description |
|---|
The HP E4510-24G is a Layer 3 switch designed to deliver reliable gigabit connectivity with versatile port options. It is commonly found in enterprise network environments where a mix of copper and fiber connections is required to support diverse infrastructure. Built for network administrators and IT professionals, this switch handles routing, VLAN segmentation, and traffic control with efficiency. Often deployed in data centers and campus networks, it helps maintain organized and scalable network layers. Key Features
This switch plays a crucial role in managing network traffic and extending connectivity in structured LAN setups. Its reliable performance and modular design allow it to adapt to evolving network demands. With strong routing features and expansion capabilities, the HP E4510-24G supports stable and efficient network operations, making it a dependable choice for medium to large-scale IT environments. |
Use Cases |
|---|
The HP E4510-24G typically serves in enterprise and campus networks where high-speed data transfer and flexible port management are essential. It benefits IT teams handling diverse device connections across multiple network segments. How It's Used:
This switch enhances operational efficiency by combining routing and switching in one unit, simplifying network architecture while supporting scalability. Its modular design helps IT departments respond to changing network demands without replacing hardware. |
