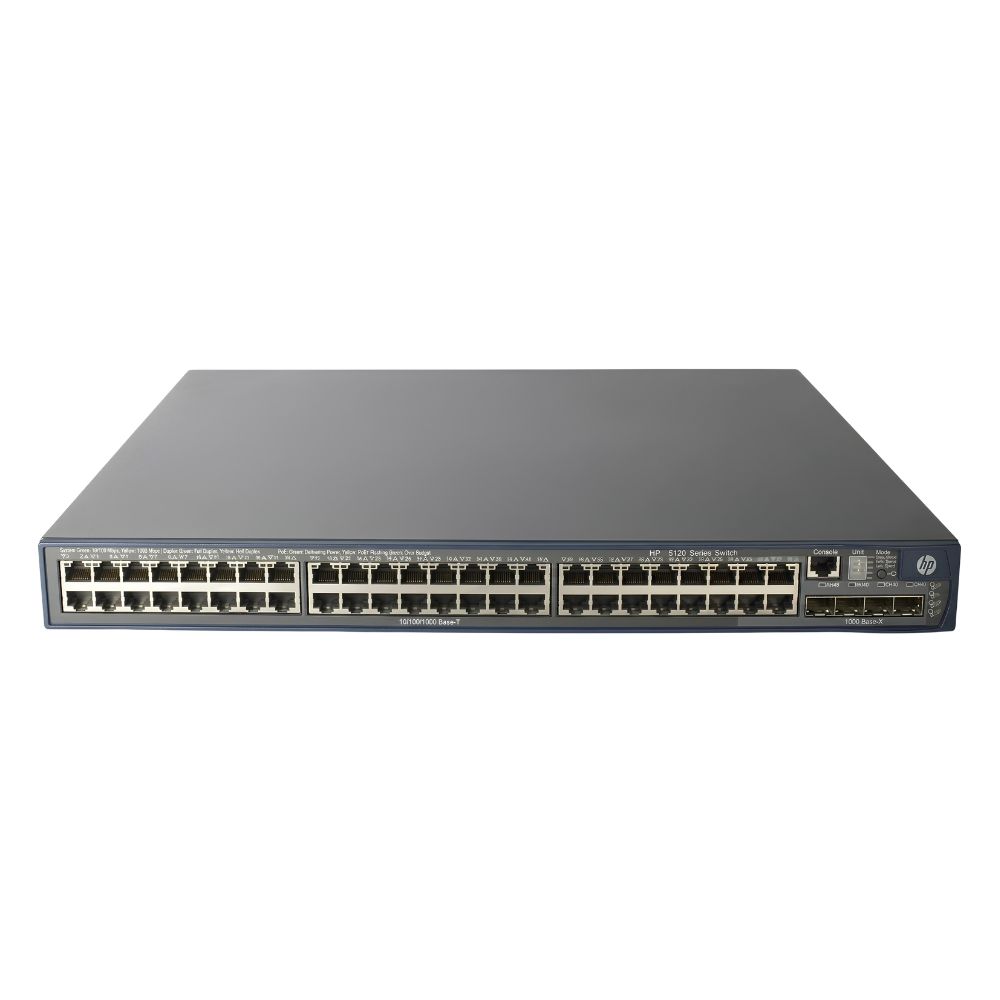

Name: JE069AR HPE 5120-48G 48-Port Gigabit + 4 SFP Layer 3 Switch
Brand: HPE
SKU: JE069AR
Price: 344.07 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JE069AR - HPE 5120-48G Layer 3 Switch provides comprehensive network connectivity with its 48 Gigabit Ethernet ports and 4 SFP uplinks. It fits well in environments requiring efficient routing along with scalable port capacity, delivering a balance of performance and flexibility for enterprise-grade networks.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps
UpLink Ports	4 x SFP
POE Support	No
Switching Capacity	104 Gbps
Switch Forwarding Rate	203.125 Mpps
DRAM	256 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	4096
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP,Serial Console (RJ-45),USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), SNMPv1/v2/v3, RMON
Security Features	802.1X, ACLs, MAC Authentication, SSH, Port Security, DHCP Snooping, IP Source Guard
Management Type	Managed
Remote Management Protocol	SNMP, SSH, Telnet, HTTP, HTTPS
Routing Protocol	Static,RIP

Power & Cooling
Fans	Internal fan (variable speed)
Power	100-240 VAC, 50/60 Hz
Power Supply	Internal AC power supply

Physical Characteristics
Dimensions	1.73 x 17.32 x 12.6 in (44 x 440 x 320 mm)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s

Product Description
The JE069AR - HPE 5120-48G is a Layer 3 switch designed to deliver reliable and scalable network performance. It is commonly found in enterprise networks and data centers where high port density and flexible uplink options are essential. Network administrators and IT professionals benefit from its routing features and versatile connectivity. Key Features Offers advanced Layer 3 routing for efficient traffic control and segmentation Equipped with 48 Gigabit Ethernet ports for extensive device connections Includes 4 SFP ports to support fiber optic links and extended reach Supports IPv4 and IPv6 protocols to accommodate modern network demands Built with hardware redundancy options to enhance network availability This switch plays a critical role in maintaining network stability and performance across complex infrastructure. Its design supports smooth integration and expansion, ensuring dependable operation in demanding environments.

Use Cases
The JE069AR is typically deployed in network cores or aggregation layers of enterprise infrastructures and medium to large data centers. It caters to IT teams managing high-density wired connections and routing between VLANs or subnets. This switch suits environments needing reliable, high-throughput switching combined with Layer 3 capabilities. How It's Used: Aggregation switch in campus networks supporting segmented traffic and multiple VLANs Core switch for small to mid-sized data centers requiring robust routing Edge switch in enterprise wiring closets with fiber uplinks to backbone Switching backbone for virtualization clusters needing high port density Network infrastructure in distributed branch offices with routing between local subnets These deployments leverage the JE069AR’s ability to optimize traffic flow and maintain network performance. It supports growing network demands through scalable and flexible connectivity options.
