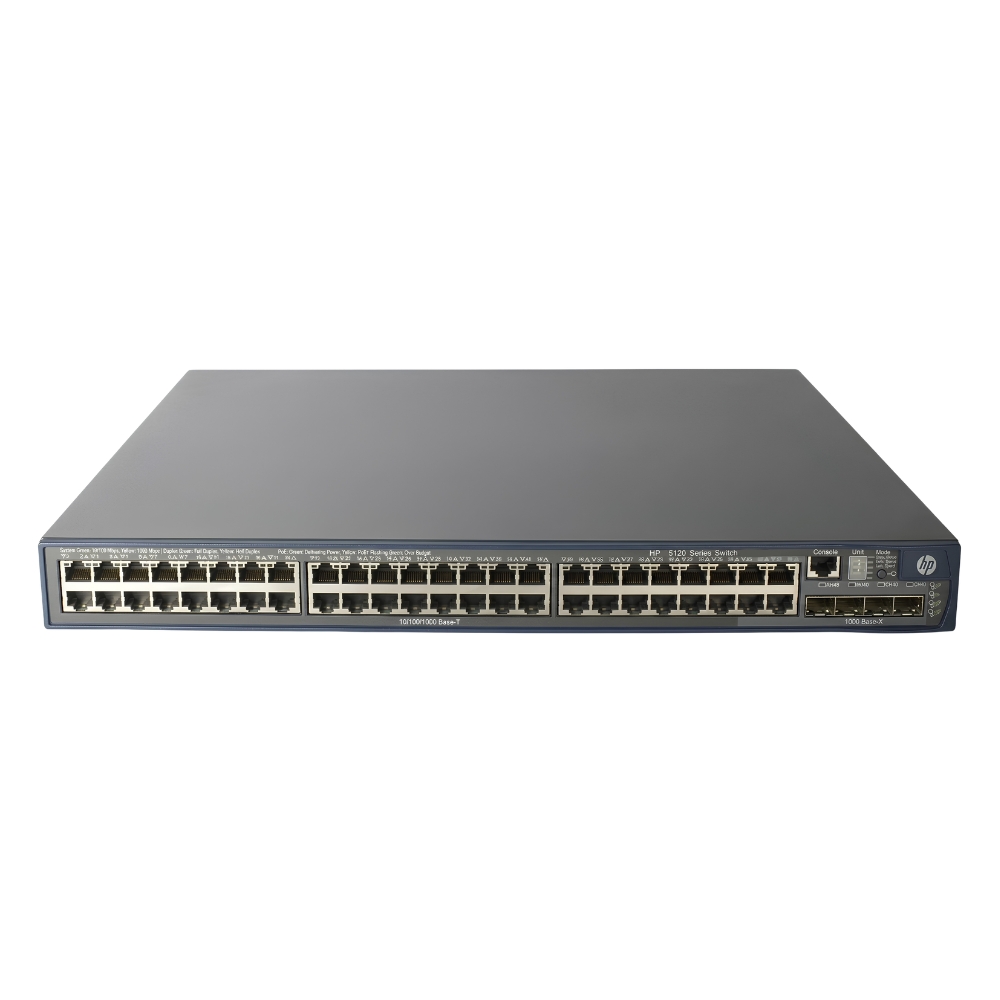

Name: JE069-61101 HPE 5120-48G 48-Port Gigabit + 4-Port SFP Layer 3 Switch
Brand: HPE
SKU: JE069-61101
Price: 194.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JE069-61101 - HPE 5120-48G 48-Port + 4-Port SFP Layer 3 Switch combines extensive port availability with routing capabilities suited for enterprise networking needs. It fits well in environments requiring comprehensive data handling and flexible uplink options, providing a balanced solution for both high-density connections and advanced network control.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T
UpLink Ports	4
POE Support	No
Switching Capacity	104 Gbps
Switch Forwarding Rate	77.38 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	RJ-45,SFP,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP
Remote Protocols	Yes
Management Interfaces	Web GUI,Command Line Interface (CLI),SNMP,SSH,Telnet
Security Features	802.1X,Access Control Lists (ACLs),DHCP Snooping,IP Source Guard,Port Security,Storm Control,BPDU Guard
Management Type	Managed
Remote Management Protocol	SNMP,SSH,Telnet,HTTP,HTTPS,RMON

Power & Cooling
Fans	2 (internal, variable-speed)
Power	100-240V AC, 50-60Hz
Power Supply	Internal fixed AC

Physical Characteristics
Dimensions	1.73 x 17.32 x 11.81 in
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.3x

Product Description
The JE069-61101 is a Layer 3 switch designed to provide efficient and scalable network management. It is commonly found in enterprise network environments where high port density and routing capabilities are required. The switch is built for IT professionals and network administrators who need reliable switching with advanced Layer 3 functions. Key Features Offers high-density connectivity with 48 Gigabit Ethernet ports suitable for diverse device connections Incorporates 4 SFP ports to support fiber optic links for extended distances Supports static routing, RIP, and OSPF protocols for enhanced network traffic control Equipped with QoS features to prioritize traffic and maintain performance consistency Designed with robust security measures including access control lists and authentication This switch plays a central role in managing network traffic efficiently, ensuring reliable performance across connected devices. Its routing and switching functionalities contribute to streamlined network operations without unnecessary complexity. With dependable throughput and feature set, it serves as a solid foundation in network infrastructure setups.

Use Cases
This switch is typically deployed in enterprise and campus networks where a mix of wired devices and fiber optic connections coexist. Network operators and IT teams benefit from its combination of high port count and Layer 3 routing functions, making it suitable for environments demanding scalable and manageable network infrastructure. How It's Used: Core or distribution layer in medium to large campus networks handling diverse traffic types Aggregation switch for consolidating data from multiple access switches before routing Edge device connecting office workstations and servers with fiber uplinks to data centers Supporting virtualization environments requiring reliable and segmented network traffic flow Integrating multiple VLANs with routing capabilities for efficient intra-network communication By enabling efficient data routing and flexible connectivity, the switch supports operational stability and network scalability. Its features help maintain consistent performance while adapting to evolving network demands across various enterprise settings.
