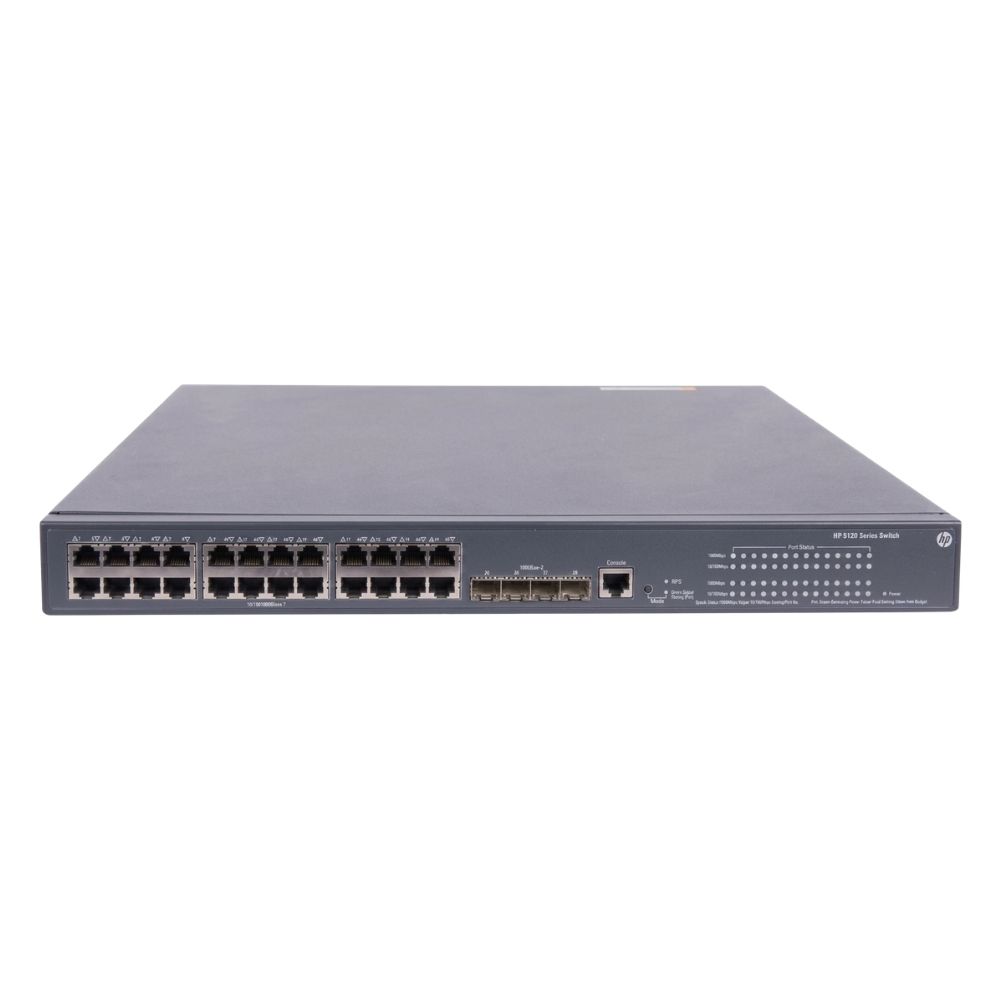

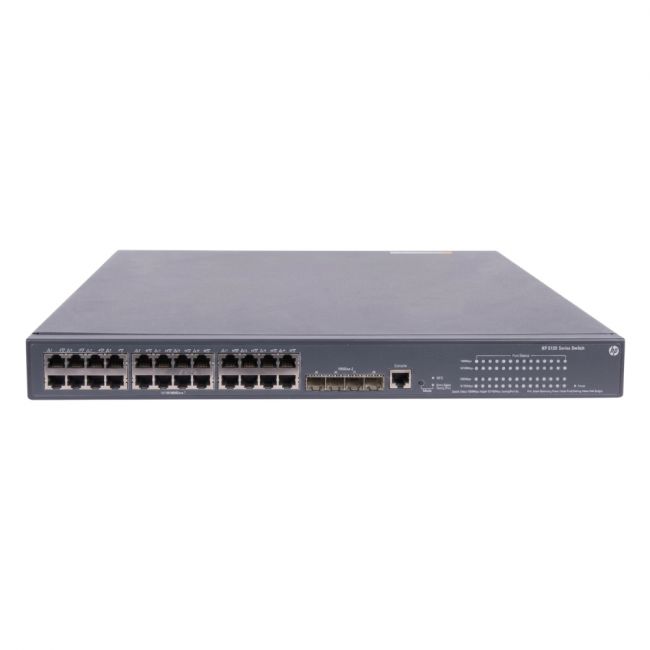

Name: JE068A#ABA HP 5120-24G 24-Port Gigabit + 6-Port SFP Layer 3 Switch
Brand: HP
SKU: JE068A#ABA
Price: 583.42 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The JE068A#ABA - HP 5120-24G 24-Port + 6-Port SFP Exp Module L3 Switch expands network capacity by adding a balanced mix of copper and fiber ports. It fits into the HP 5120 series chassis to enhance switching and routing functionality, supporting a range of connectivity needs in professional networking environments.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 1000Base-X, RJ-45, SFP
Port Speed	10/100/1000Base-T,1000Base-X
UpLink Ports	6 x SFP (1000Base-X)
POE Support	No
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS),CLI (SSH/Telnet),Console (RJ-45),SNMP
Security Features	ACL,802.1X,RADIUS,TACACS+,SSH,SSL
Management Type	In-band and Out-of-band
Security	802.1X,ACL,RADIUS,TACACS+,SSH,SSL
Remote Management Protocol	SNMPv1/v2c/v3,SSH,HTTPS,Telnet
Routing Protocol	Static,RIP,OSPF,VRRP

Power & Cooling
Fans	Internal fan(s)
Power	Internal AC 100-240V
Power Supply	Internal, non-redundant

Physical Characteristics
Dimensions	1.73 x 17.32 x 13.00 in
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X

Product Description
The JE068A#ABA - HP 5120-24G 24-Port + 6-Port SFP Expansion Module is built to expand network capacity with high-performance L3 switching. It is commonly found in enterprise and campus networks where scalable port density and flexible uplink options are essential. Network administrators and IT professionals benefit from its reliable switching and routing features. Key Features Provides a total of 30 ports combining 24 Gigabit Ethernet and 6 SFP slots Supports advanced Layer 3 protocols for efficient traffic management Enables flexible fiber or copper connections via SFP modules Designed for seamless integration with compatible HP 5120 switch chassis Delivers robust performance suited for growing network demands This expansion module plays a crucial role in increasing network scalability while maintaining consistent data throughput. It supports reliable network performance and flexibility without requiring a complete system overhaul. The module's durability and compatibility make it a practical choice for enhancing existing network infrastructure.

Use Cases
This expansion module is typically deployed in medium to large enterprise networks, data centers, or campus environments where increased port density and fiber uplink flexibility are required. IT teams managing network growth or upgrading existing setups find it especially useful for maintaining performance and connectivity. How It's Used: Adding ports to HP 5120 chassis in enterprise LANs for increased device connections Providing fiber uplink options in campus backbone networks via SFP slots Supporting Layer 3 routing in branch office or regional data centers Facilitating high-speed access for virtualization and storage networks Expanding edge switch capacity in distributed IT environments By delivering scalable port expansion with solid Layer 3 capabilities, this module helps maintain network efficiency as demands grow. It supports smooth integration and consistent operation across diverse network topologies without disrupting ongoing services.
