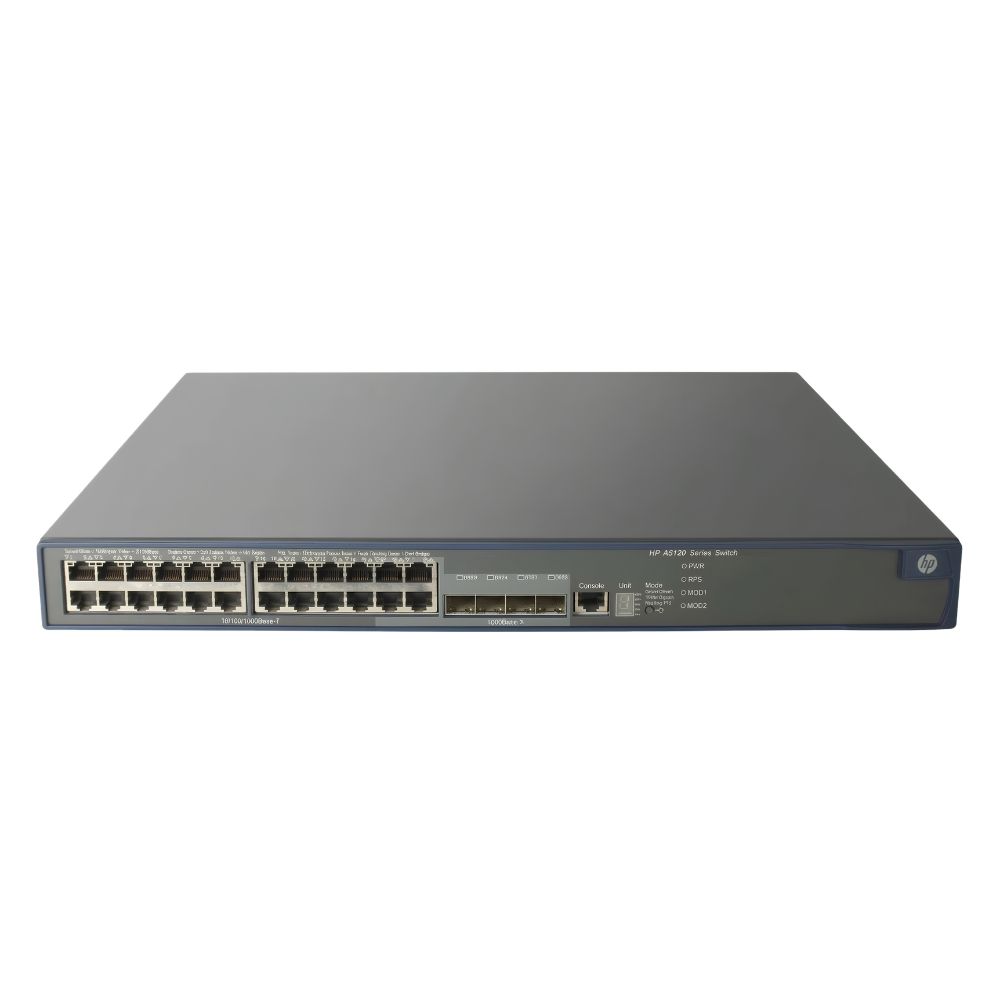

Name: JE068-61101 HP A5120-24G 24-Port Gigabit Layer-4 Managed Stackable Switch
Brand: HP
SKU: JE068-61101
Price: 583.42 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JE068-61101 HP A5120-24G switch provides multi-speed gigabit ports combined with shared SFP slots to offer flexible connectivity options. Its Layer-4 management capabilities allow for detailed control over network traffic, fitting well into mid-sized enterprise networks or data center access layers. The stackable design makes it a practical choice for environments requiring easy scale-out while maintaining centralized management.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP
Port Speed	10/100/1000Base-T
UpLink Ports	4 x SFP (Shared)
POE Support	No
Switching Capacity	56 Gbps
Switch Forwarding Rate	109.375 Mpps
DRAM	256 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 4
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8192

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (Console/SSH/Telnet), SNMP v1/v2c/v3, RMON
Security Features	802.1X, ACLs, Port Security, SSH/SSL, Storm Control, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
Management Type	Managed
Remote Management Protocol	SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Telnet, CLI
Routing Protocol	Static,RIP

Power & Cooling
Fans	1 x variable-speed fan (smart/fan-assisted)
Power	AC 100-240V, 50-60Hz (internal)
Power Supply	Internal AC 100-240V

Physical Characteristics
Dimensions	1.73 x 17.32 x 8.86 in (H x W x D)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3x

Product Description
The JE068-61101 HP A5120-24G is a managed gigabit Ethernet switch designed to provide reliable and efficient network connectivity. It is commonly found in enterprise network environments where high-speed and flexible port configurations are essential. Built for IT professionals and network administrators, this switch supports advanced traffic management with Layer-4 capabilities to handle complex network demands. Its stackable design offers seamless scalability, making it suitable for growing networks. Key Features Supports 24 ports with 10/100/1000Base-T speeds for versatile device connections Includes 4 shared SFP slots allowing easy integration of fiber optic links Enables Layer-4 traffic management to prioritize and secure data flows Stackable architecture simplifies network expansion and reduces management overhead Offers robust performance for consistent network uptime This switch plays a key role in delivering stable and manageable network infrastructure. Its reliability and feature set ensure that network traffic is efficiently handled, supporting overall operational stability without unnecessary complexity.

Use Cases
The JE068-61101 is typically deployed in medium to large enterprise networks where high-port density and flexible connectivity are necessary. IT teams benefit from its stackable design and advanced traffic management to maintain network performance and security. How It's Used: Installed in rack deployments to provide gigabit access for office workgroups and departments Used in data center edge environments to aggregate server and storage traffic Deployed in campus networks where stacking supports scalable network growth Integrated within managed network environments requiring advanced Layer-4 control Utilized by network administrators to streamline traffic and enforce security policies This switch supports operational efficiency by combining flexible connectivity with scalable management. Its features align with the needs of growing networks, ensuring performance and control without excessive complexity.
