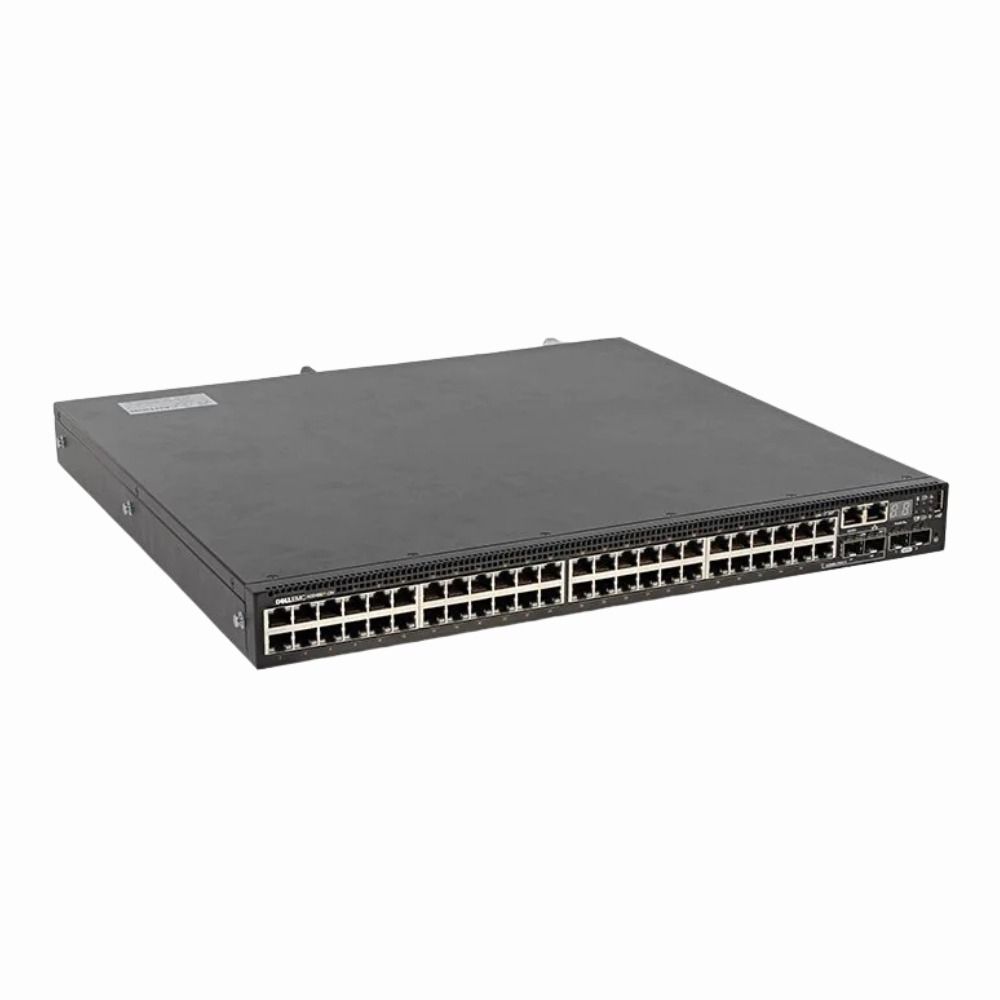

Name: JDFTF Dell N3048EP-ON 48-Port PoE+ UPoE Gigabit Ethernet Switch
Brand: Dell
SKU: JDFTF
Price: 289.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JDFTF Dell N3048EP-ON 48-Port PoE+ UPoE Gigabit Ethernet Switch delivers a solid mix of power and connectivity, making it well-suited for enterprise environments. It combines high port density with the ability to power connected devices directly through PoE+ and UPoE, reducing the need for extra power supplies and simplifying setup. With its Layer 2 and Layer 3 functions, it fits seamlessly into networks that require both switching and routing, supporting a variety of devices and traffic types without trouble.

General Information
Brand	Dell
Part Number	JDFTF
Condition	Refurbished

Technical Information
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP+
Port Speed	10/100/1000 Mbps
UpLink Ports	4
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web (GUI),Command Line (SSH),Console (Serial),SNMP
Security Features	802.1X,ACLs,SSH,SSL,Storm Control,Port Security,DHCP Snooping,IP Source Guard
Remote Management Protocol	SNMP,SSH,Telnet,HTTPS,HTTP
Routing Protocol	Static,RIP,OSPF

Physical Characteristics
Weight	5.00

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The JDFTF Dell N3048EP-ON is a versatile network switch built for managing high-volume data traffic in enterprise and campus networks. It offers 48 Gigabit Ethernet ports equipped with Power over Ethernet Plus (PoE+) and Universal Power over Ethernet (UPoE), enabling easy connection and power supply to devices like IP phones, wireless access points, and security cameras. Often found in medium to large-scale deployments, this switch is favored by network administrators and IT professionals who need reliable connectivity and advanced networking features. Its Layer 2 and Layer 3 capabilities help optimize network performance and facilitate smooth data routing and switching. Key Features Power delivery to a wide range of devices through PoE+ and UPoE technology Support for static and dynamic routing to enhance network flexibility Quality of Service (QoS) controls for efficient traffic management Scalable design that fits well in growing network infrastructures Energy-efficient operation to reduce power consumption This switch is typically deployed in office buildings, data centers, and educational campuses where a strong and stable network backbone is essential. It helps maintain seamless connectivity and supports various network endpoints without the need for additional power adapters. By integrating power and data transmission in a single device, the N3048EP-ON simplifies cabling and reduces overall infrastructure complexity.

Use Cases
The Dell N3048EP-ON 48-Port PoE+ UPoE Gigabit Ethernet Switch is designed for enterprise network environments requiring high port density and robust power delivery. It is ideal for IT professionals managing converged networks where both data and power must be delivered efficiently to a large number of endpoints such as IP phones, wireless access points, and security cameras. How It's Used: Deploying in campus network core or distribution layers to handle heavy traffic loads and provide PoE+ power to connected devices. Supporting VoIP infrastructure in large office buildings by powering IP phones through its PoE+ capabilities. Enabling wireless network expansion in enterprise environments by powering multiple access points via UPoE, simplifying installation. Integrating with security systems in data centers or corporate facilities by supplying power and connectivity to IP surveillance cameras. Facilitating edge computing deployments where consolidated data processing and device powering are needed in remote or branch offices. This switch enhances operational efficiency by consolidating power and data transmission, reducing cable complexity, and supporting scalable network expansion. Its advanced Layer 2 and Layer 3 capabilities ensure reliable performance under demanding enterprise workloads.
